This section provides operational information.
Nameplate Label Information
The meter nameplate is found on the front of the meter.

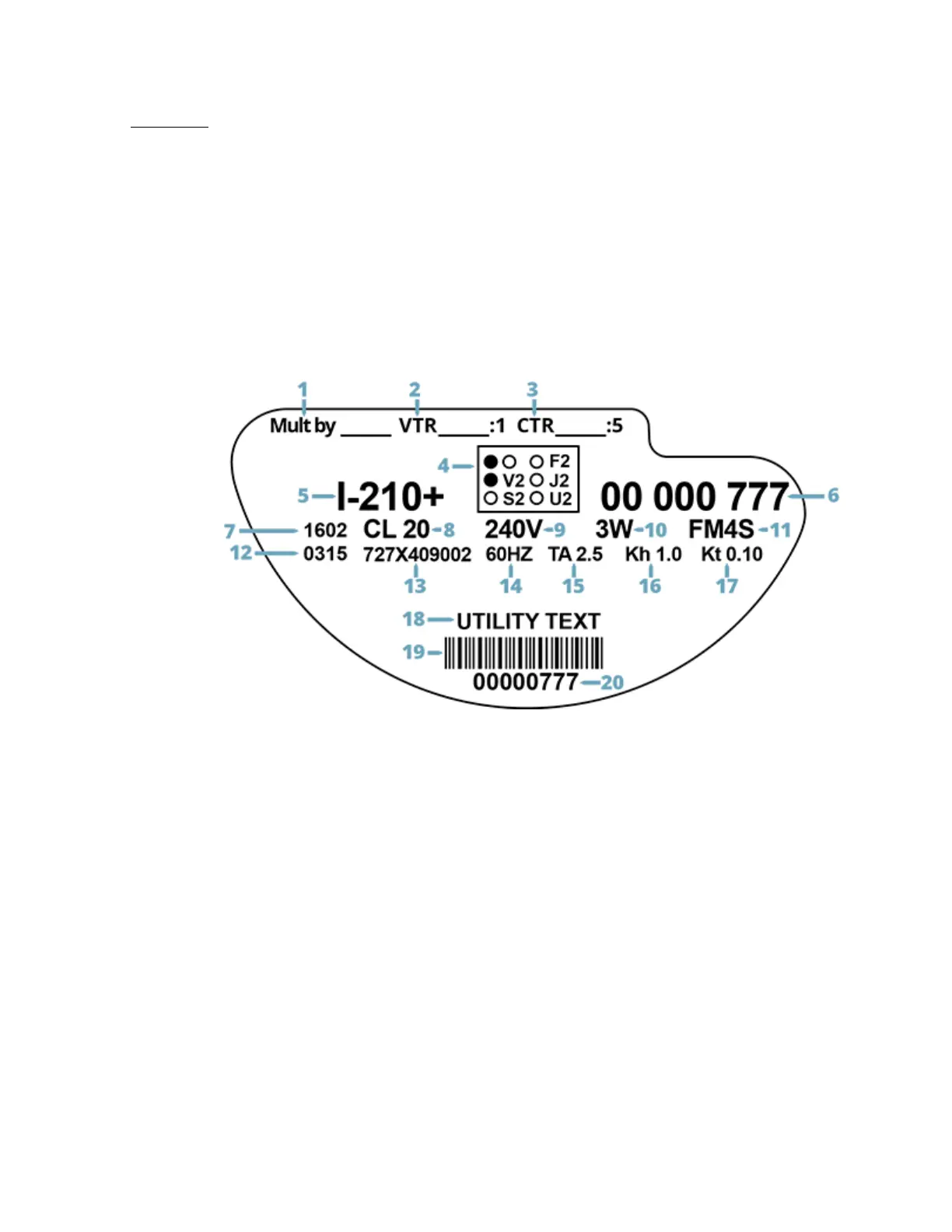

The following numbered list coincides with the numbers in the figure above:
*
For Forms 3S and 4S only.
1.
Multiply by Constant
*
11. ANSI C12.10 Form Number
2. Voltage Transformer Ratio
*
12. Month & Year of Manufacture
3. Current Transformer Ratio
*
13. Catalog Number
4. Softswitch Selection Box 14. Nominal Frequency
5. Meter Model 15. Test Amperage
6. Meter Serial Number 16. Watt-hour Constant
7. Hardware & Firmware Version 17. Watt-hour Test Constant
8. Current Class 18. Utility Text
9. Nominal Voltage 19. AMR Barcode
10. Wires for Meter Service 20. AMR Identifier
