AMI Modules
Meter Disassembly

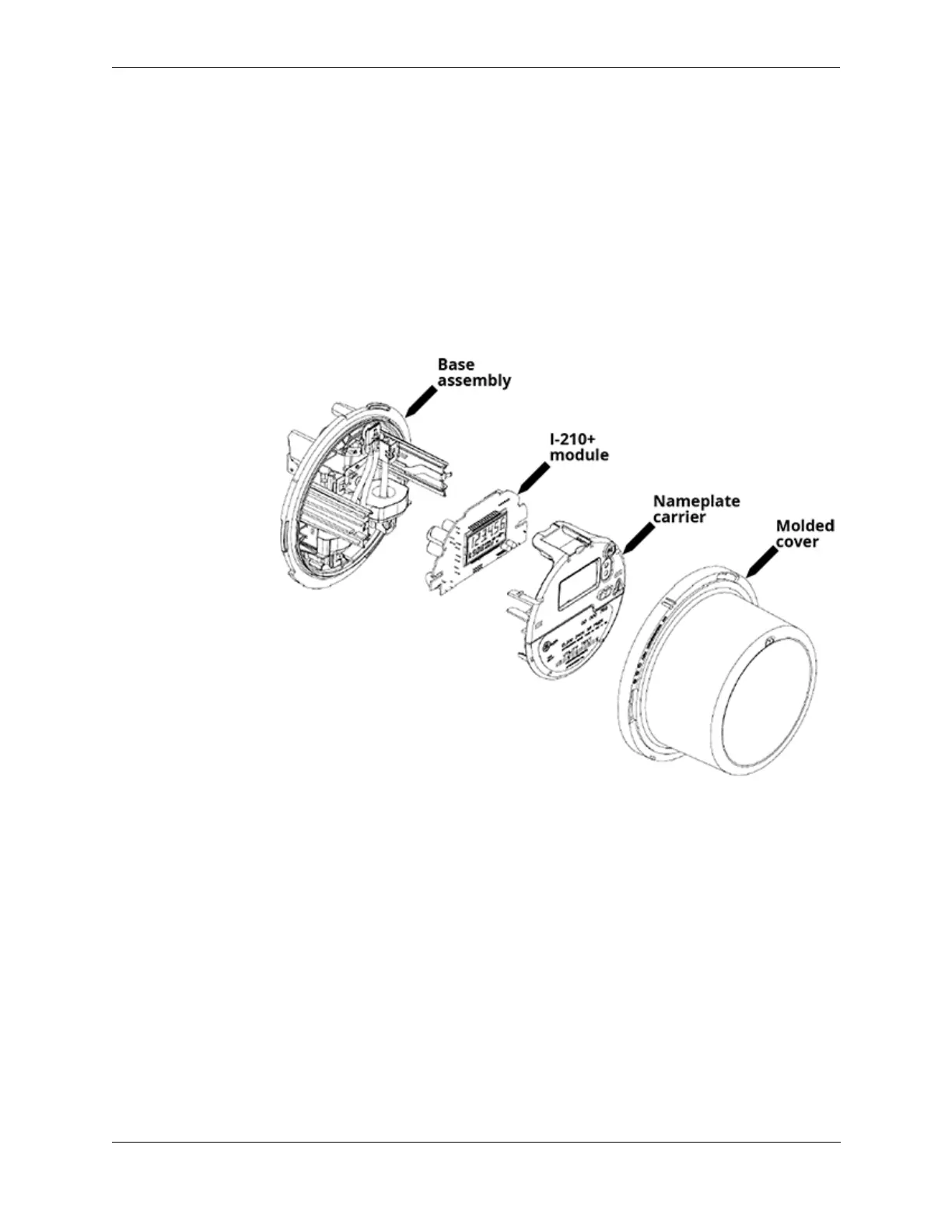

Use the procedures in the following sections to disassemble and reassemble the
meter.
Meter Cover Removal
Remove the meter cover as follows:
1. Remove the security seals from the side of the meter, if present.
2. Turn the cover counterclockwise approximately 30 degrees.
3. Lift the cover straight up.
I-210+ Module Removal
1. Disconnect the CT connector from the socket on the electronics module.
2. Grasp the snaps on either side of the nameplate carrier between the thumb
and index finger and press them together to release them from the notches
on the base posts. It may be easier to unclip one side at a time. Ensure all
four snaps are disengaged and lift the module assembly off the base.
3. Place the module on a flat, clean, cloth-covered surface with meter face
down.
C
AUTION
Do not pull on the wires to disengage the connectors. Pull only on the
connectors.
