4-8 MOUNTING AND WIRING
SB1391 Hardware and Setup Guide - Document revision no. 1.14
If a single-phase line filter from a different manufacturer is used, it should have a circuit similar to
the Corcom
line filters shown in the following figures.

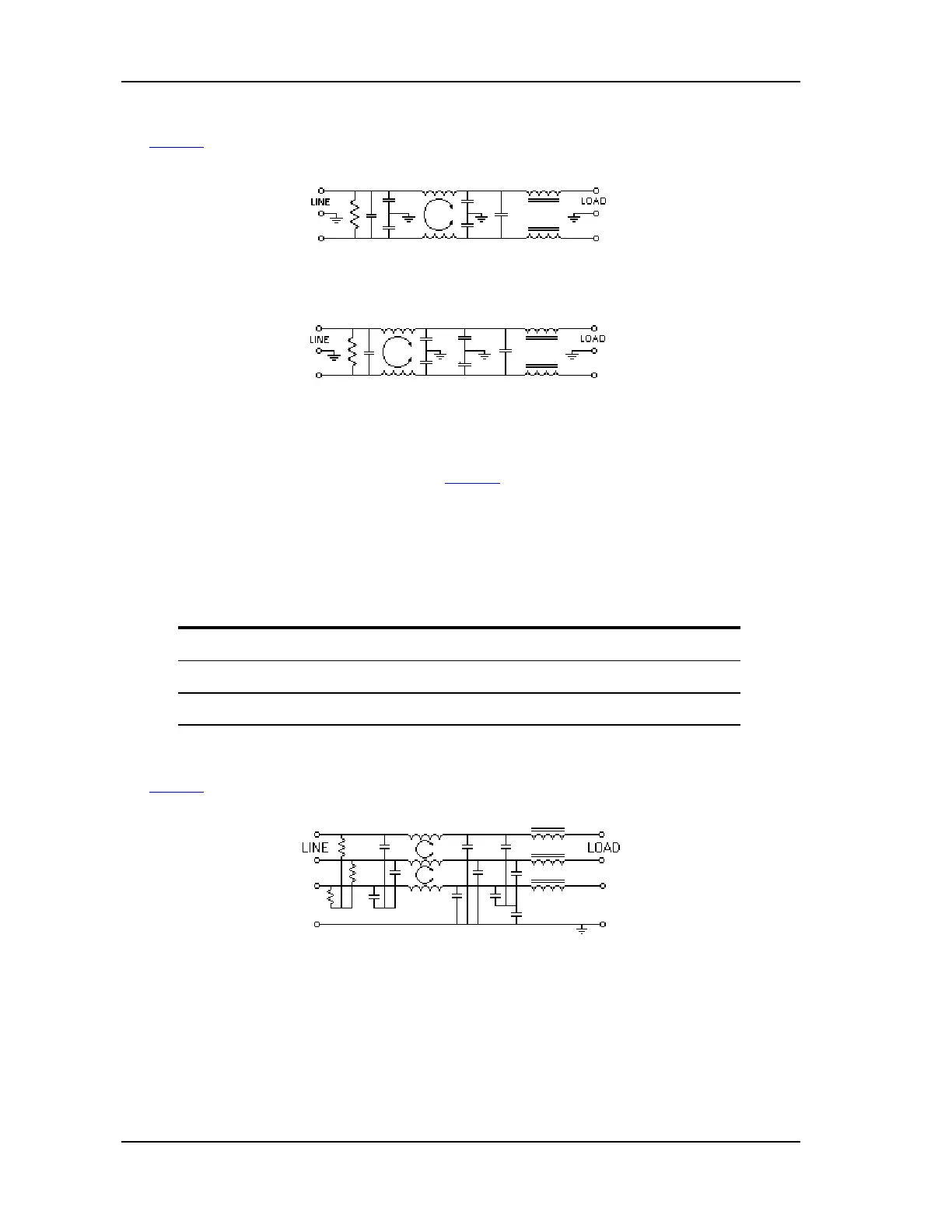

FIGURE 4-5 Electrical schematic of 12A, and 16A line filter for single-phase
FIGURE 4-6 Electrical schematic of 25A line filter for single-phase
Suitable three-phase line filters available from Corcom
are listed in the following table.
TABLE 4-8 Corcom line filters for three-phase power supply
Controller
model
Input current at nominal
load [Arms]
Corcom part no.
SB1391A 5.5 6FCD10
SB1391B 10.5 12FCD10
SB1391C 16 16FCD10
If a three-phase line filter from a different manufacturer is used, it should have a circuit similar to
the Corcom
line filters shown in the following figures.
FIGURE 4-7 Electrical schematic of 6A line filter for three-phase
