MOUNTING AND WIRING 4-11
SB1391 Hardware and Setup Guide - Document revision no. 1.14
Warning
It is important to record the motor phase connection order. If the motor or
controller is replaced, make the connection in the same order. Otherwise the
motor will not function properly and a new commutation setup will be
necessary.
TABLE 4-10 Motor connection pins
Pin Description
PE Protective Earth. Motor should be grounded via this
pin. In addition, it must be grounded locally.
R(U) Motor phase R.
S(V) Motor phase S.
T(W) Motor phase T.

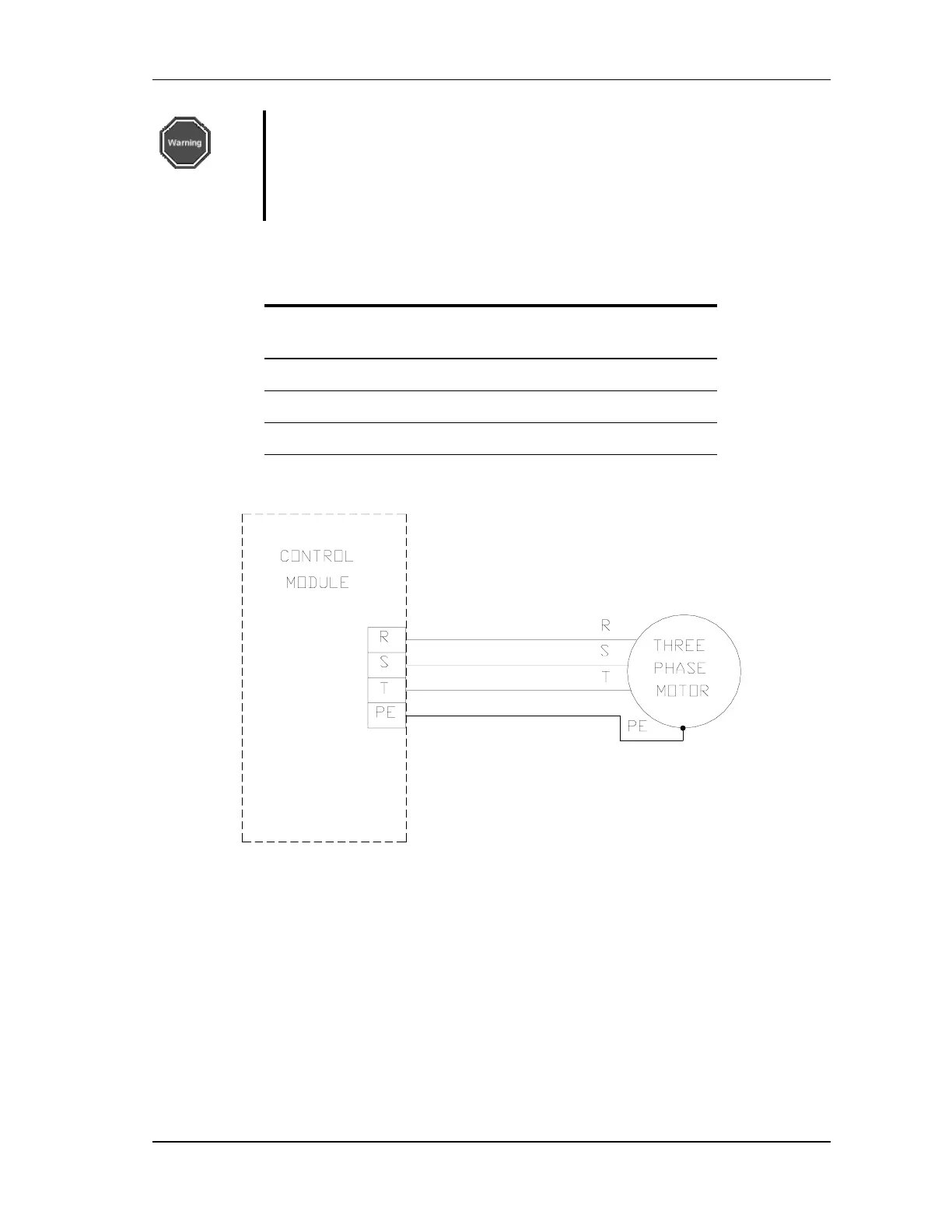

FIGURE 4-10 Three-phase motor connection
