X-MIND trium Light
The X-MIND trium Light is an indicator light that warns that X-ray emission is in progress.
It indicates no entry into the room when the red light is on; it also has a triangular danger sign that warns of X-ray hazards.

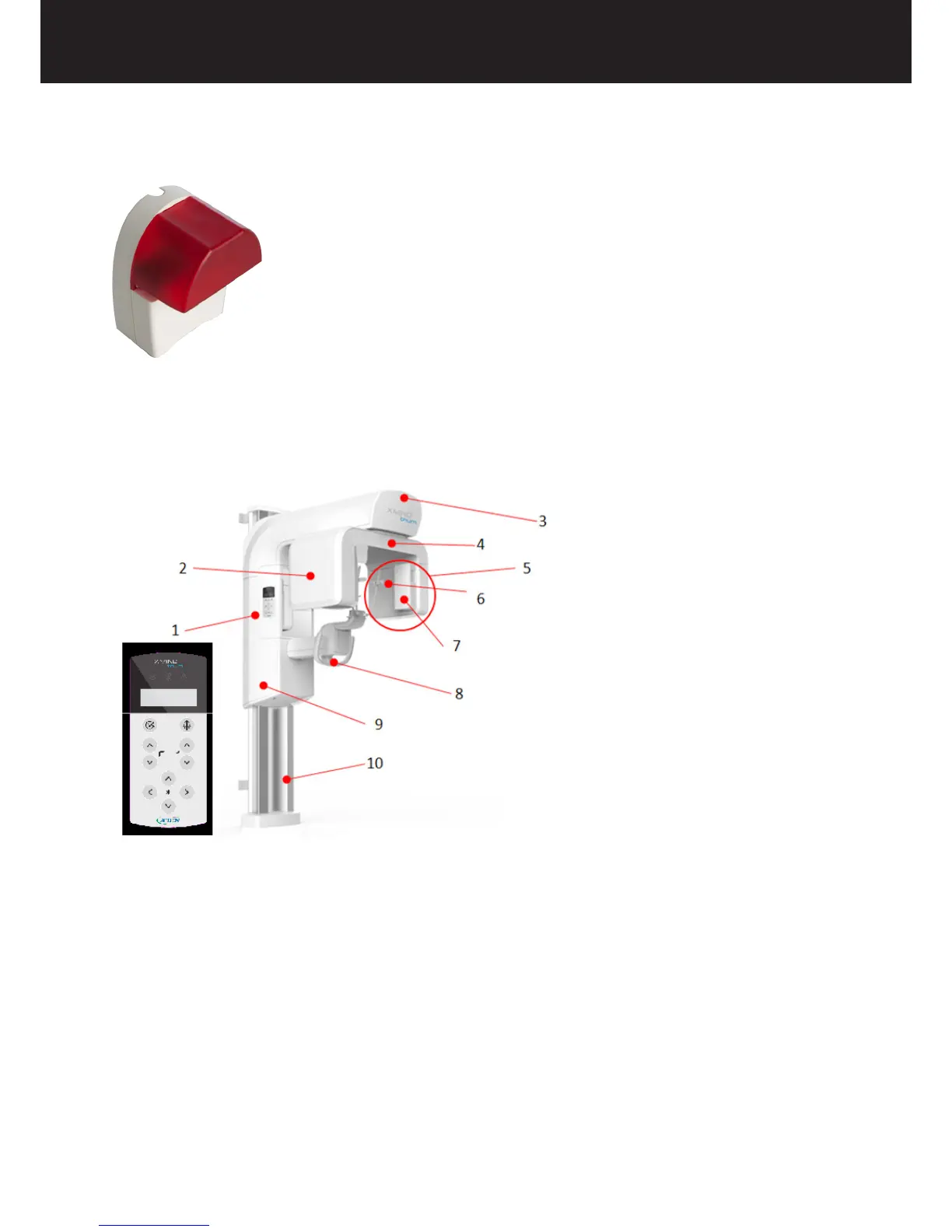

2.3 X-MIND TRIUM MEDICAL DEVICE
The X-MIND trium medical device for PAN/CBCT models consists of the following parts:
1. Control panel. The control panel provides an intuitive overview of the system to move the mobile column, move the bite
block holder (only PAN/CBCT version), move the U-arm, turn the positioning lasers on and off and activate the X-MIND
trium medical device.
2. X-ray generator. The X-ray assembly is the source of the X-ray beam during the rotation of the U-Arm. An automatic
collimator shapes the X-Ray beam, whereas the electronic control ensures stability and accuracy of the selected loading
factors (exposure time, kVp and anodic current). A lter is used to harden the beam and remove low-energy ionising
radiations, thereby obtaining suitable radiation quality whilst reducing its dose absorbed by the patient. The lter’s
material is aluminium for PAN and CEPH exams, aluminium + copper for CBCT exams.
3. Sliding body. The sliding body is the mobile part of the column that supports U-arm.
4. U-arm. The U-Arm supports the PAN/CBCT Detector sliding group and the X-ray generator. This is the rotating part of
the medical device, which moves around the patient during the image acquisition phase ; it can as well be moved in two
horizontal directions (X and Y) by the operator during the setup of the exam, in order to obtain the best superimposition
between the patient’s head anatomy and the diameter of the Field of View (FOV).
5. Detector sliding group. It contains detectors that allow to acquire PAN and CBCT images.
6. CBCT detector. This at panel detector is indicated for use in generating radiographic images of the maxillo-facial region,
more specically it is dedicated for CBCT acquisitions.
