Action technology A3 - Page 35

35
069.0
[Basic setting]

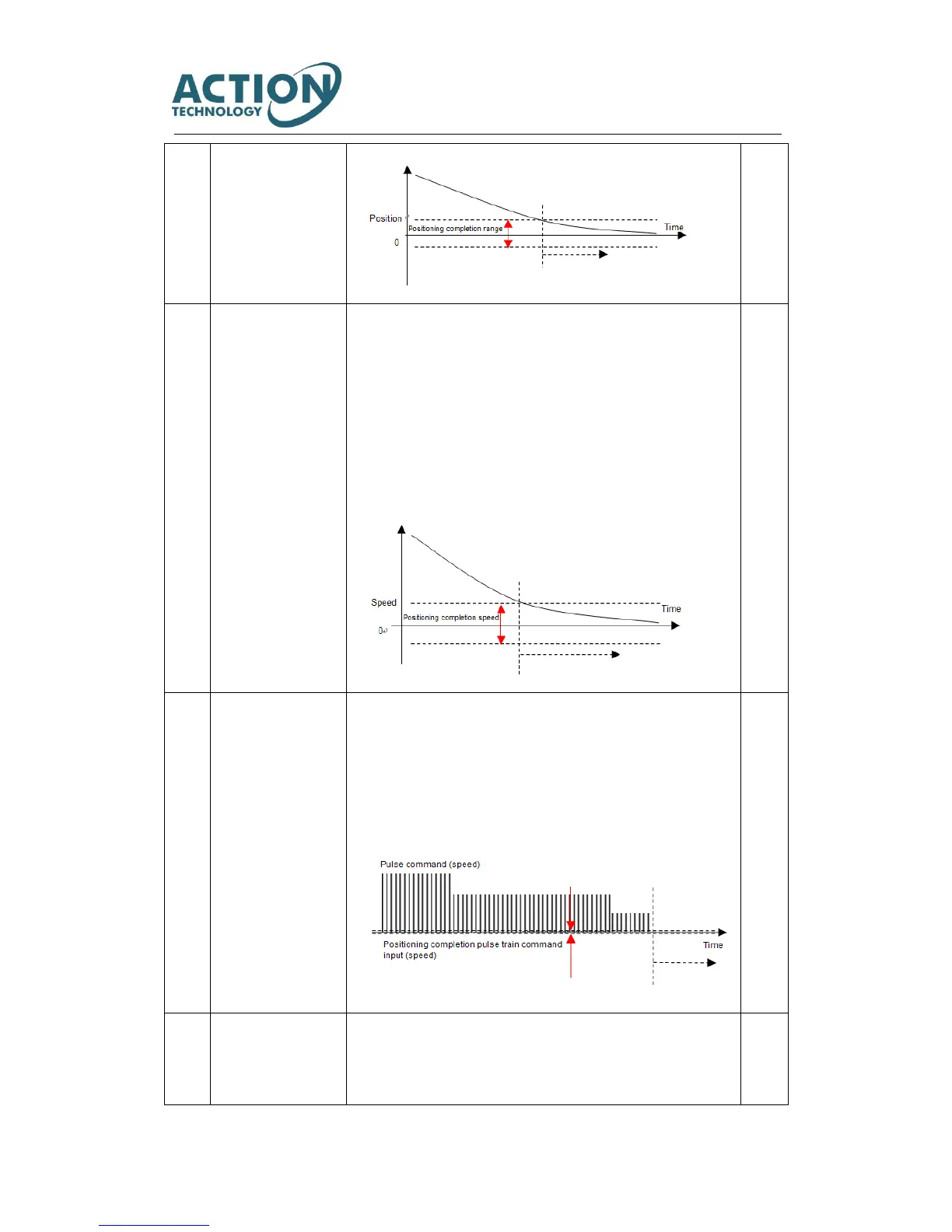

Positioning completion
speed
As the reference of outputting positioning completion signal to upper controller,
this parameter is the speed limit for judging positioning completion.
The setting value should be less than the number of speed limit of upper
controller.
[Initial value]
750W or less：2 [pulse/160μs] （±2 [pulse/160μs] ・・・5.72[r/min]
1kW or more ： 2 [pulse/200μs] （±2 [pulse/200μs]）・・・
4.58[r/min]
[Setting range] 0 to 32767
No
070.0
[Basic setting]
Positioning completion
pulse command input
(speed)
As the reference of outputting positioning completion signal to upper controller,
this parameter is the pulse command input(speed) for judging positioning
completion
[Initial setting]
750W or less： 0 [pulse/160μs] （±0 [pulse/160μs]）
1kW or more：0 [pulse/200μs] （±0 [pulse/200μs]）
[Setting range] 0 to 32767
No
071.0
[Basic setting]
Delay time of positioning
completion detection
Select the delay time from positioning completion to output signal to upper
controller.
[Initial value]
750W or less：20 [160μs]・・・3.2ms
No
