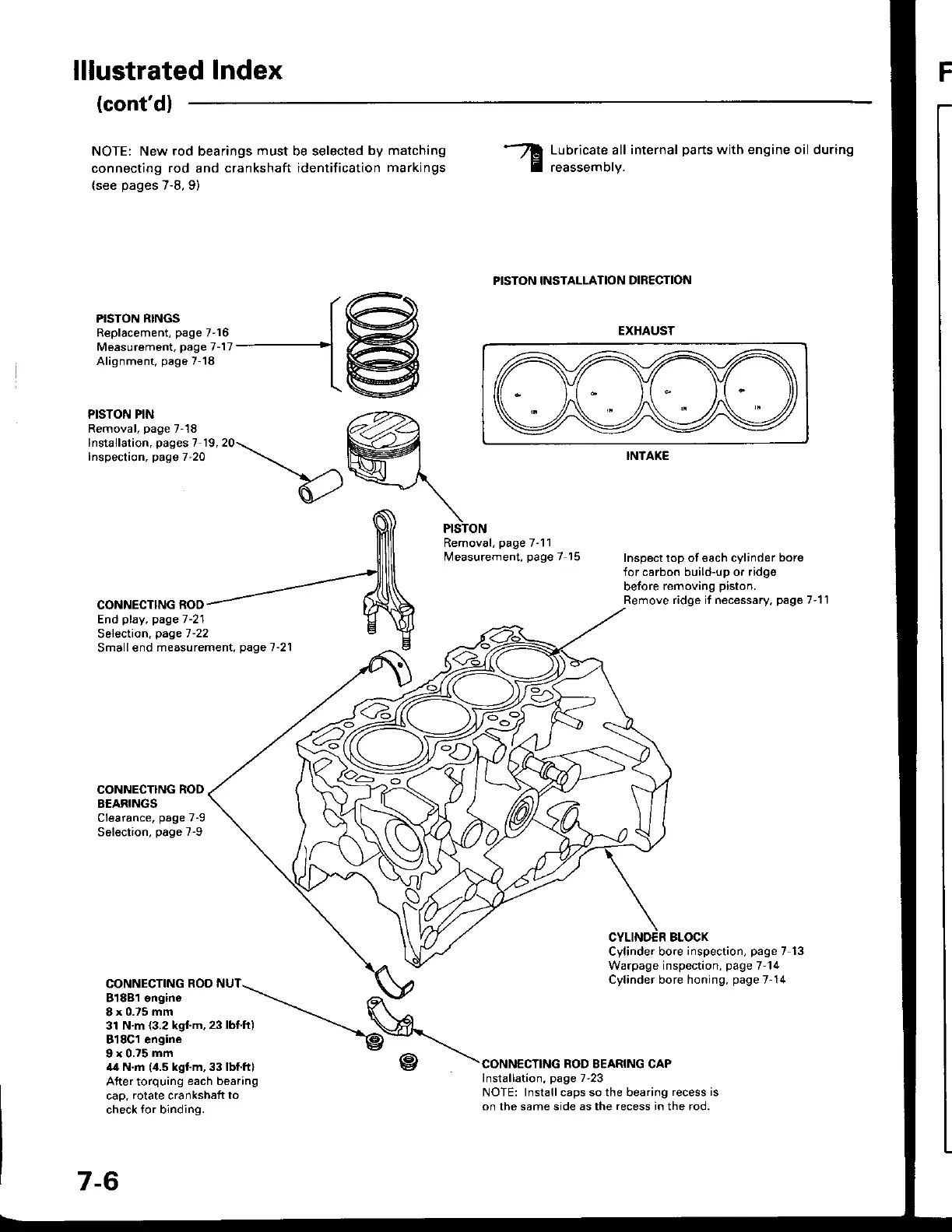

lllustrated
Index
F
(cont'd)
NOTE: New rod bearings
must
be selected
by
connecting
rod
and
crankshaft identification
(see
pages
7-8,9)
matching
marKrngs
Lubricate all internal
parts
with
engine
oil during
reassemorv.
PISTON RINGS
Replacement,
page
7'16
Measurement.
page
7-17
Alignment,
page
7 18
PISTON PIN
Removal,
page
7-18
lnstallation,
pages
7 19, 20
Inspection,
page
7'20
PISTON INSTALLATION
DIRECTION
EXHAUST
INTAKE
Removal,
page
7'11
Measurement,
page
7 15
Inspect top of each cylinder
bore
for carbon build-up or ridgo
betore
removing
piston.
Remove ridge it necessary,
page
7'11
CONNECTING ROO
End
play, page
7-21
CONNECTING
ROD
EEARINGS
Clearance,
page
7-9
Selection,
page
7-9
CONNECTING
ROD NUT
818B1 ongine
8x
0.75 mm
31 N.m
{3.2
kgf.m,23
lbf ftl
818C1 engine
9 x 0.75
mm
a,a N.m
(4.5
kgt m, 33 lbf.ft|
After torquing
each bearang
cap,
rotate
crankshaft
to
check
for
binding.
r-(,
Selection,
page
7-22
Small end
measurement.
page
7-21
BLOCX
Cylinder bore
inspection,
page
7 13
Warpage inspection,
page
7'14
Cylinder bore honing,
page
7-14
CONNECTING ROD BEARING CAP
Installation,
page
7'23
NOTE: Install caps so the bearing
recess is
on the same side as the recess in the rod.
r@
-1@
