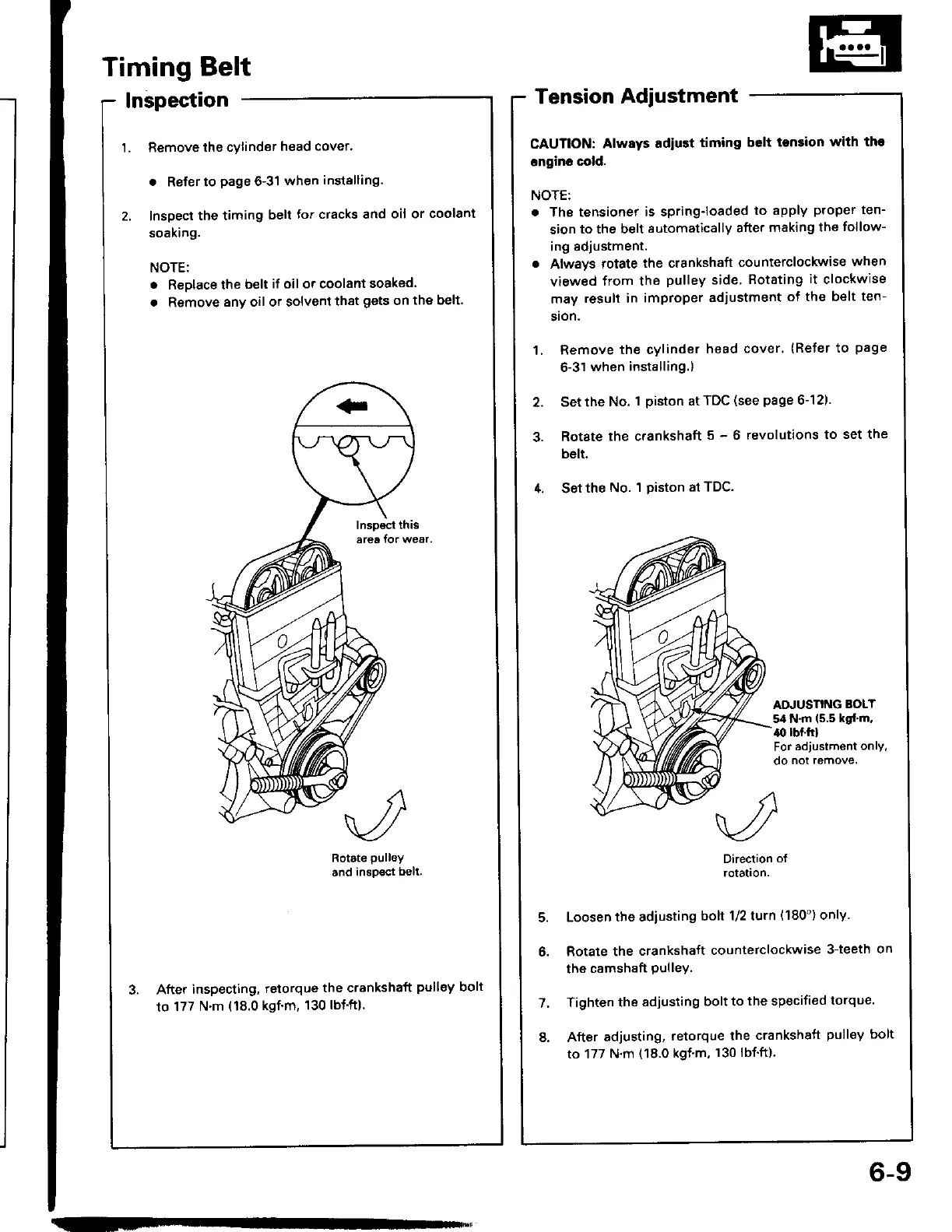

Timing
Belt
Inspection
Remove
the cylinder
head cover.
.
Reler to
page
6-3'l
when
installing.
Inspect
the timing
belt
for cracks and
oil or coolant
soaking.
NOTE:
.
Replace the
belt
if oil or coolant
soaked.
.
Rsmove any
oil or solvent
that
gets
on
the belt.
Rotate
pulley
and
inspscr
bell.
After
inspecting,
retorque
the crankshaft
pulley
bolt
to
177 N'm
('18.0
kgf'm, 130
lbt'ft).
Tension
Adjustment
CAUTION:
Always
Ediust
timing belt
tonsion
with tho
cngin.
cold.
NOTE:
.
The tensionet
is spring-loaded
to apply
proper
ten-
sion
to the belt
automaticallv
after
making the
follow-
ing adjustment.
.
Always
rotate
the crankshaft
counterclockwise
when
viewed
trom the
pulley
side
Rotating
it
clockwise
may
result in
improper adjustment
ot the belt
ten-
sion.
Remove
the cylinder
head
cover.
(Refer
to
page
6-31
when
installing.)
Set the
No.
1
piston
at
TDC
(see
page
6-12).
Rotate
the c.ankshaft
5
-
6
revolutions to
set the
bslt.
4. Set
the No.
I
piston
at TDC.
3.
ADJUSNNG
BOLT
54 N.m
(5.5
kqf.m,
a0
rbr.ftl
For
adiustment
only,
do
not remove,
5.
6.
7.
8.
Direction
ol
rolatlon.
Loosen
the adiusting
bolt
1/2 turn
(180')
onlv
Rotate the
crankshaft
counterclockwise
3-teeth
on
the
camshaft
pulley.
Tighten the
adjusting
bolt to
the specified
torque.
After
adjusting,
retorque
the
crankshaft
pulley
bolt
to 177
N.m
(18.0
kgl.m.
130 lbf.ft).
6-9
