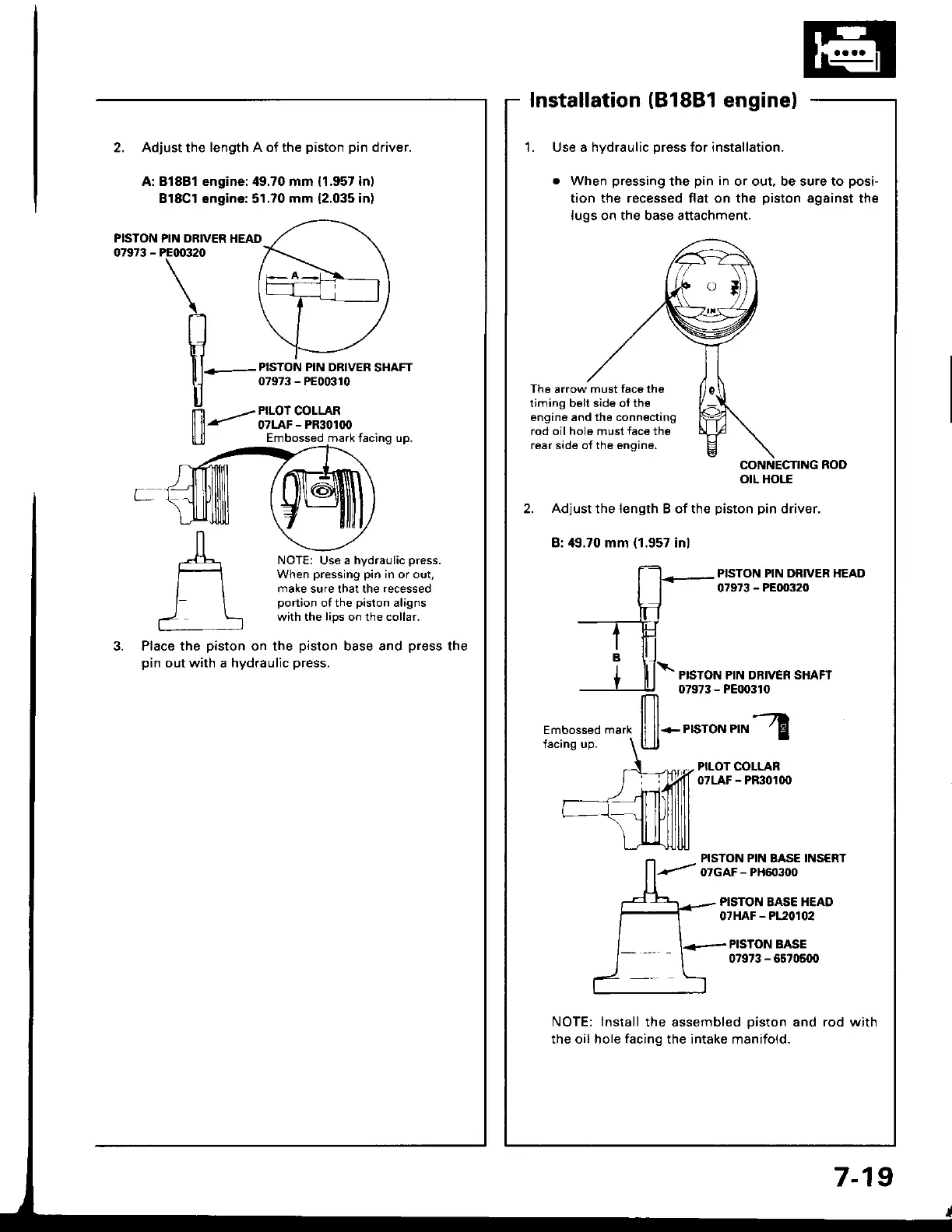

Installation
(B18Bl
engine)
2. Adjust the
length A of the
piston pin
driver.
A:81881 engine:49.70 mm
{1.957
inl
Bl8Cl €ngin€:51.70
mm
{2.035
inl
PISTON PIN DRIVER
HEAD
07973
-
PE00320
PISTON PIN DRIVER
SHAFT
07973
-
PE00310
PILOI
COLLAR
07LAF
-
PR30100
Embossed mark facing up.
NOTE:
Use
a hydraulic
press.
When
pressing pin
in or out,
make
sure that the
recessed
portion
of the
piston
aligns
with the lips on the collar.
Place the
piston
on the
piston
base and
press
the
pin
out with a hydraulic
press.
1. Use a hvdraulic oress for installation.
When
pressing
the
pin
in
or out, be sure to
posi-
tion the recessed flat on the
piston
against the
lugs on the base attachment.
The arrow must face the
timing belt side o{ the
engine and the connecting
rod oil hole must
face
the
rear side of the engine,
otl Hols
2.
Adjust
the
length
B of the
piston pin
driver.
B: 49.70 mm
(1.957
inl
PISTON PIN DRIVER HEAD
07973
-
PEfl)320
PISTON PIN DR|VEN SHAFT
079?3
-
PE|X)310
Embossed
mark
ffi*.r,"ror","l
PILOT COLLAN
07LAF
-
PF301(x)
PISTON PIN BASE INSERT
07GAF- PH603oO
PISTON
BASE HEAD
07HAF
-
PL20t02
PISTON BASE
079?3
-
6570500
NOTE: lnstall
the assembled
piston
and rod with
the oil hole facing the intake manifold.
7-19
