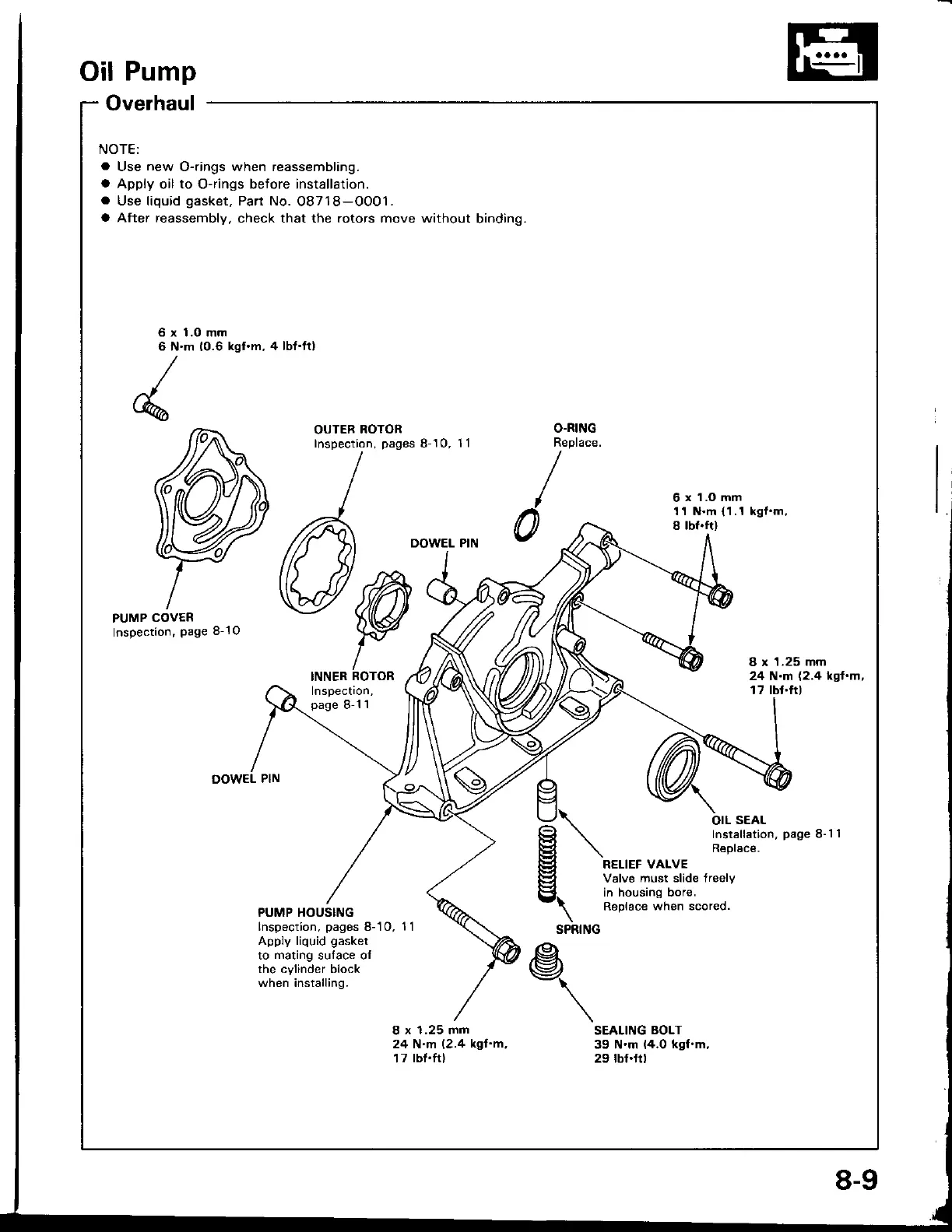

Acura 1994 Integra - Oil Pump; Overhaul

Oil
Pump
Overhaul
NOTE:
a
Use
new
O-rings when reassembling.
a
Apply
oil to O-rings before installation.
.
Use liquid
gasket,
Part No.
08718-OO01.
a
After reassembly,
check that the rotors move without
binding.
6 x 1.0 mm
6 N.m
10.6
kgl.m, 4 lbt'ttl
OUTER
ROTOR
Inspection,
pages
I
10, 11
O.RING
Replace.
0
6
x 1.O mm
11 N.m
(1.1
kgf.m,
8 tbf.frl
DOWEL PIN
PUMP
COVER
Inspection,
page
8-10
INNER
ROTOR
Inspect|on,
page
8-1
1
8 x
1.25 mm
24 N.m
(2.4
kgf.m,
t7 tbt'ft)
\
SPRING
OIL
SEAL
Installation,
Page
8-1
1
Replace.
RELIEF VALVE
Valve
must slide treely
in housing bore.
Replace
when scored.
PUMP HOUSING
lnspection,
pages
8-10, 11
Apply liquid
gasket
to
mating
suface oI
the cylinder block
when installing.
*\
8
x 1.25 mm
24 N.m
(2.4
kgl.m,
17
lbl.Irl
SEALING
BOLT
39 N'm
14.0
kgf.m,
29 tbt.ttt
