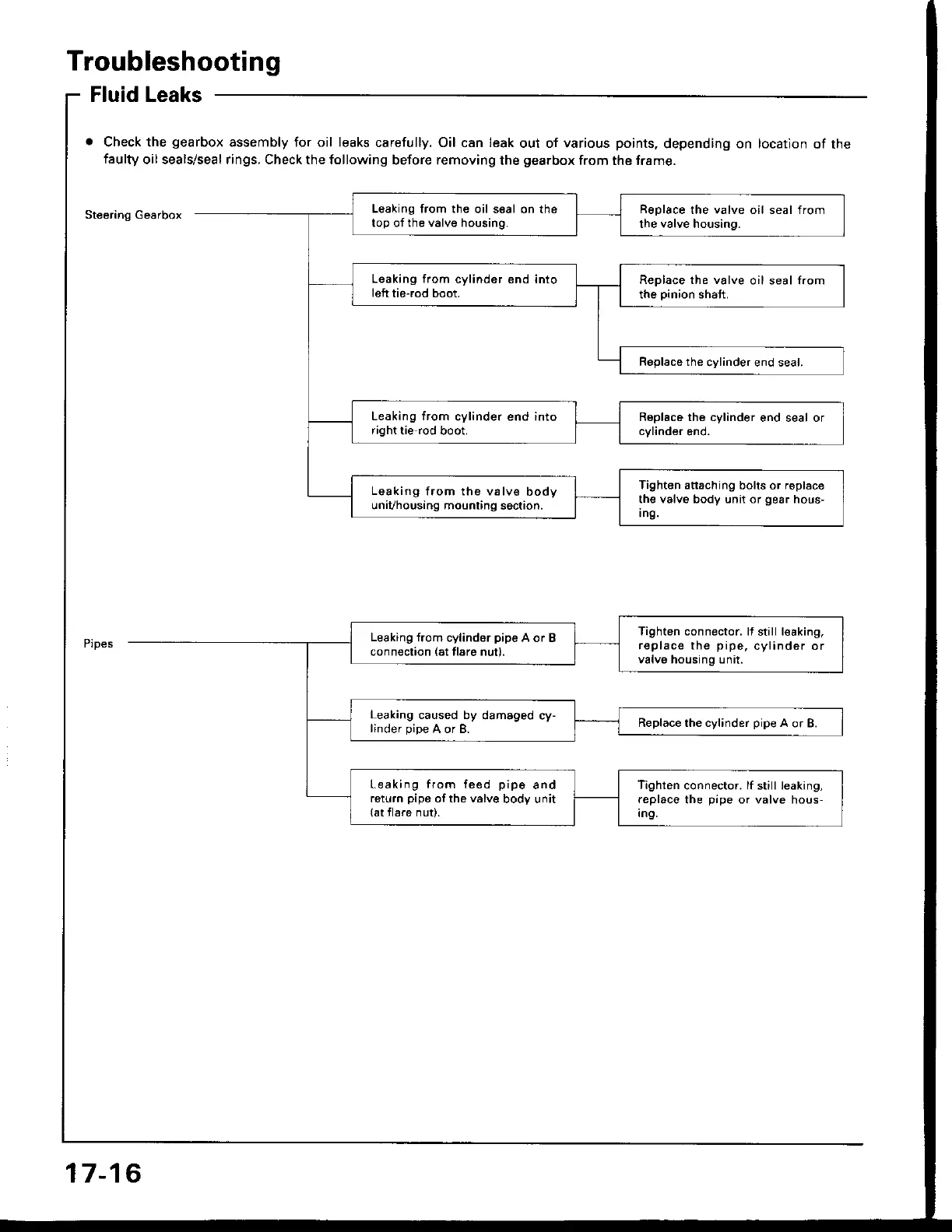

Troubleshooting
Fluid Leaks
Check the
gearbox
assembly for oil leaks
carefully. Oil can leak
out of various
points.
depending on location
of the
faulty
oil seals/seal rings. Check the following
before removing
the
gearbox
from the frame.
Steering Gearbox
Leaking from the
oil seal on the
top of the valve housing.
Roplace
the valve oil seal from
the valve housing.
Leaking from
cylinder end into
left
tie'rod boot.
Replace the valve
oil seal lrom
the
pinion
shaft.
Reolace the
cvlinder end seal.
Leaking from
cylinder end into
right
tie
rod
boot.
Tighten attaching
bolts or
replace
the valve body unit or
gear
hous-
Ing.
Leaking
from the vslve
body
uniVhousing mounting
soction.
Tighten connector. It
still
leaking.
replace the
pipe,
cylinder or
valve housing unil.
Leaking
from cylind6r
pipe
A
or B
connection
(at
tlare nut).
Leaking
caused by
damaged cy-
linder
pipe
A or B.
Replace the cylinder
pipe
A
or B.
Leaking from feed
pip6
and
return
pipe
of the valve
body unit
(at
flare nut).
Tighten
connector. lI still leaking,
replace
the
pipe
or valve hous
In9,
17-16
