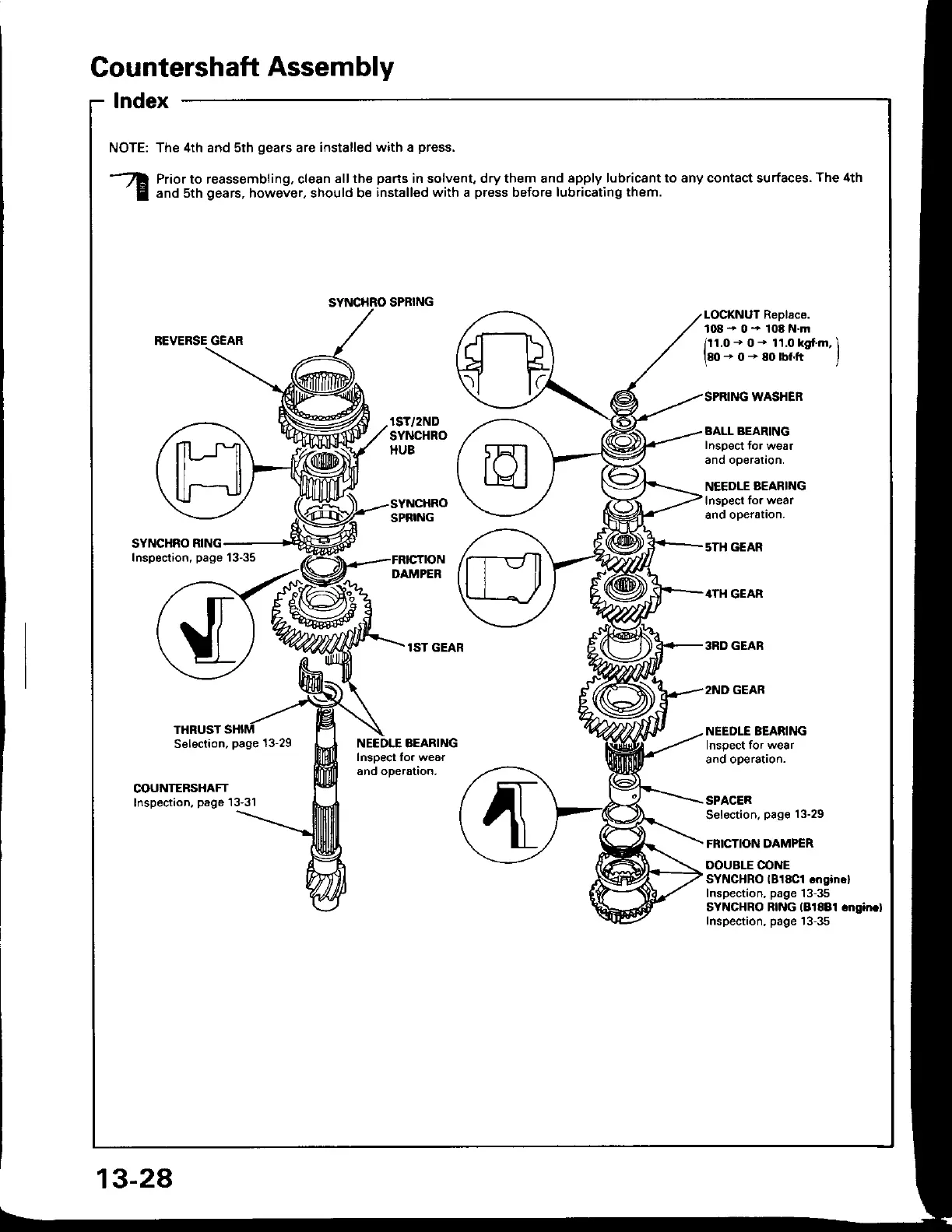

Acura 1994 Integra - Countershaft Assembly

Countershaft
Assembly
lndex
NOTE:
3
The 4th and 5th
gears
are
installed with a
press.
Prior to reassembling. clean
all the
pans
in solvent, dry them and
apply lubricant to any contact surfaces.
The 4th
and sth
gears.
however, should be
installed with a
press
before
lubricating them.
LOCKNUT ReDlace.
l(E*0*10EN.m
/r1.0
-
0
-
11.0 kgtm,I
l8o- o-80rbf.ft I
WASHER
BALL BEARING
Inspect
for wear
and operat|on,
NEEDLE
BEARING
Inspect
Ior wear
and operation.
sTH GEAR
4TH
GEAR
3RD GEAR
2ND GEAR
NEEDLE BEARING
Inspect
for wear
and operation.
SPACER
Selection.
page
13-29
FRICTION DAMPER
DOUB1I
@NE
SYNCHRO
l818Cl
.ngin.l
Inspection,
page
13-35
SYNCHRO RING
lBl8Bl
.ngin
)
Inspection,
page
13-35
SYNCHRO
SPBING
SYNCHRO RING
THRUST
BEARING
13-24
