Acura 1994 Integra User Manual

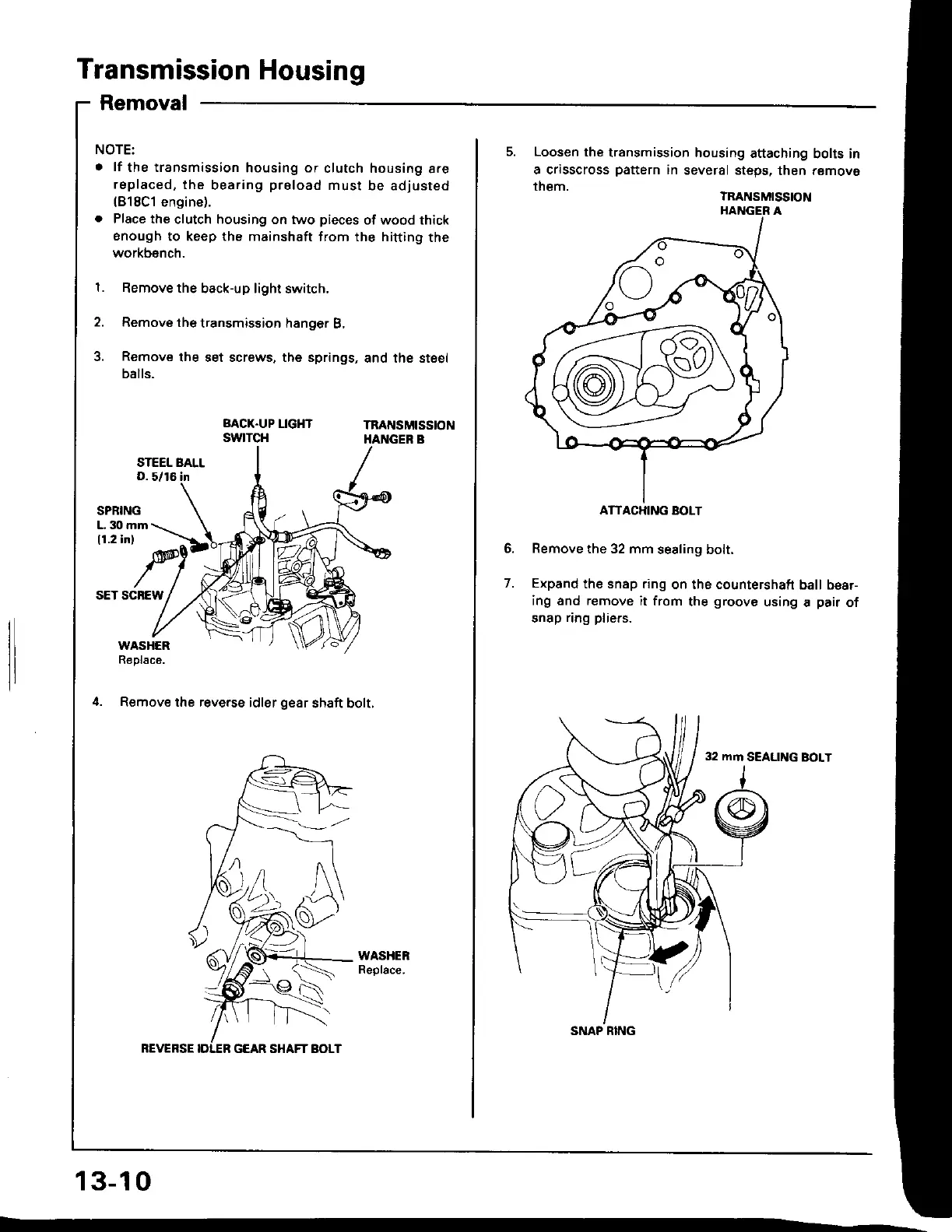

Transmission
Housing
Removal
NOTE:
.
lf
the transmission
housing or
clutch housing
a.e
replaced,
the
bearing
proload
must
be adjusted
(818C1
engine).
.
Place the
clutch housing on two
pieces
of wood
thick
enough
to keep the mainshaft
from the hitting
the
workbench.
1.
Remove
the back-up light
switch.
2.
Remove the
transmission hanger
B,
3.
Remove
the set screws, the springs,
and the steel
balls.
Tna
sMtsstoN
SPBING
L. 30 mm
11.2
inl
SET SCBEW
WASHER
Replace.
4.
Remov€ the reverse
idler
gear
shaft bolt,
WASHER
Replace.
REVERSE
L
13-10
ATTACHING
BOLT
5. Loosen
the
transmission housing
attaching
bolts in
a crisscross
pattern
in
several steps.
then remove
them.
TRANSMISSION
Remove
the 32 mm
sealing bolt.
Expand
the snap ring
on ths countershaft
ball bear-
ing and remove
it from
the
groove
using
a
pair
of
snap
ring
pliers.
32 mm
SEALING
BOLT
7.
SNAP RING
