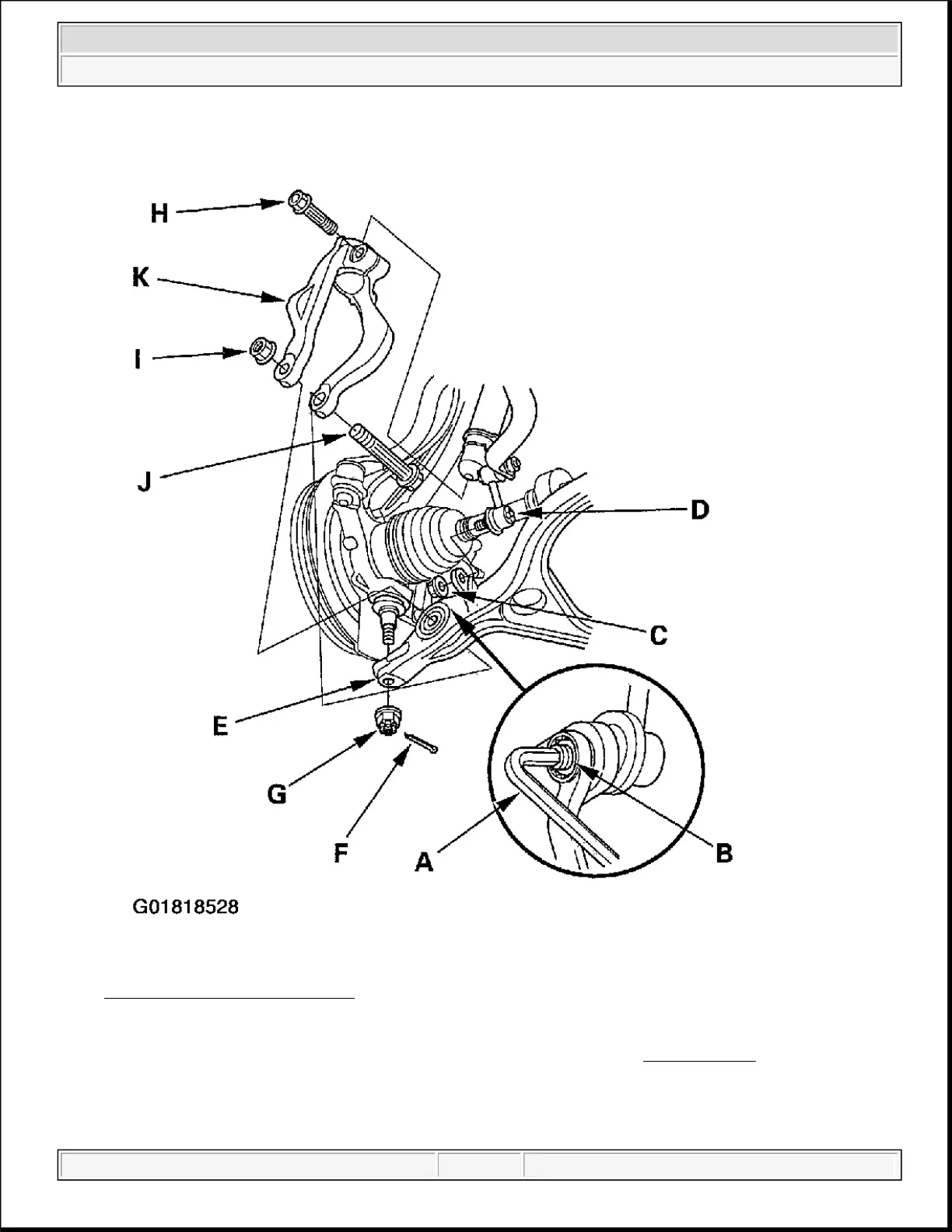

Fig. 14: Removing Components
28. Remove the cotter pins (F), castle nuts (G), damper pinch bolt (H), self-locking nut (I), bolt (J), and
damper forks (K), then separate the ball joints from the lower arms (see BALL JOINT
).
29. Remove the exhaust pipe A and its mount.
2004 Acura TSX
2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX
Wednesday, March 12, 2008 9:44:47 PM Page 15
