Fig. 73: Connecting The Countershaft Speed Sensor Connector & Mainshaft Speed Sensor
Connector

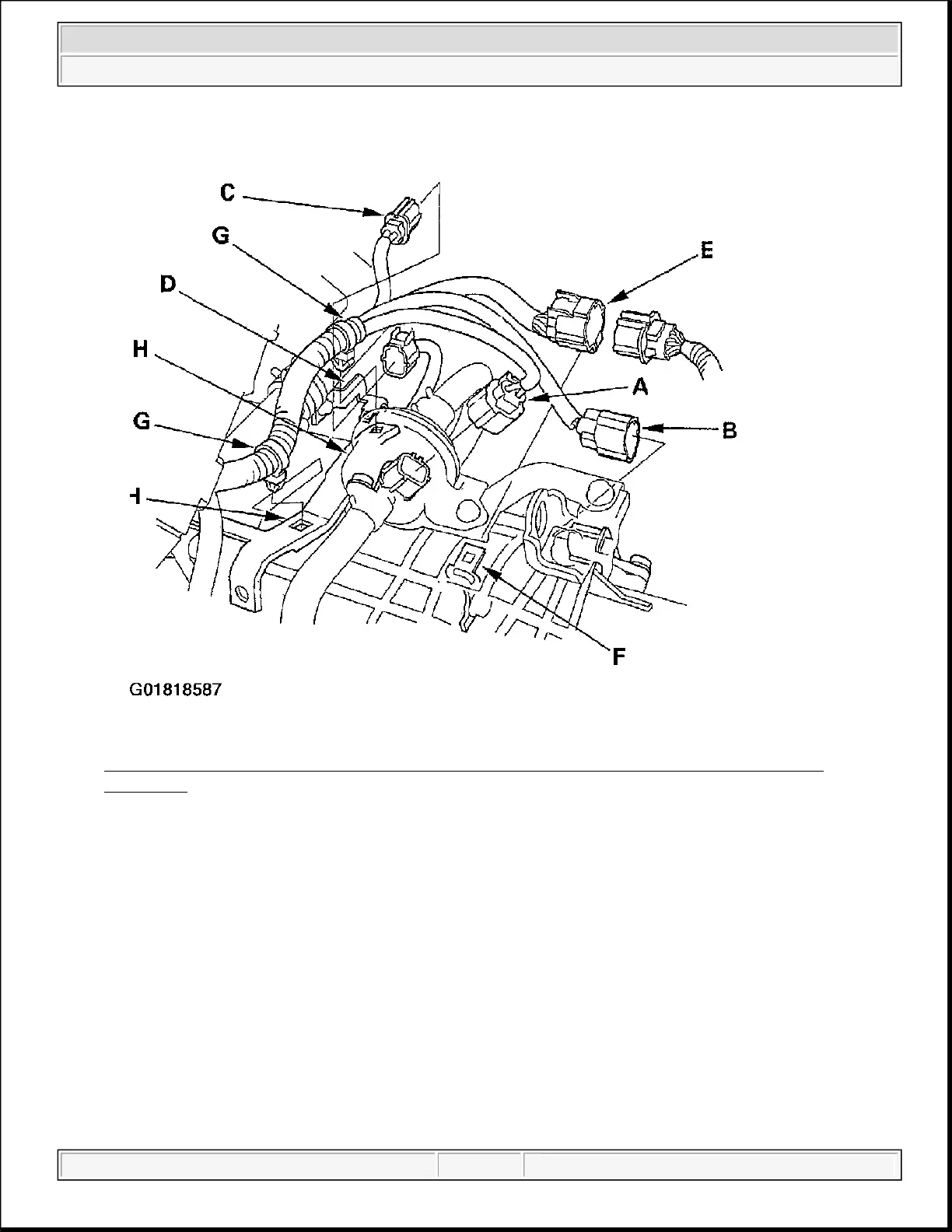

53. Connect the AF sensor connector (C), then install it on its bracket (D).
54. Connect the transmission range switch connector (E), then install it on its bracket (F).
55. Install the harness clamps (G) on the harness clamp brackets (H).
56. Install the A/T clutch pressure control solenoid valve A connector and 2nd clutch transmission fluid
pressure switch connector (B), and install the harness clamps (C) on the harness clamp brackets (D).
2004 Acura TSX
2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX
Wednesday, March 12, 2008 9:44:48 PM Page 74
