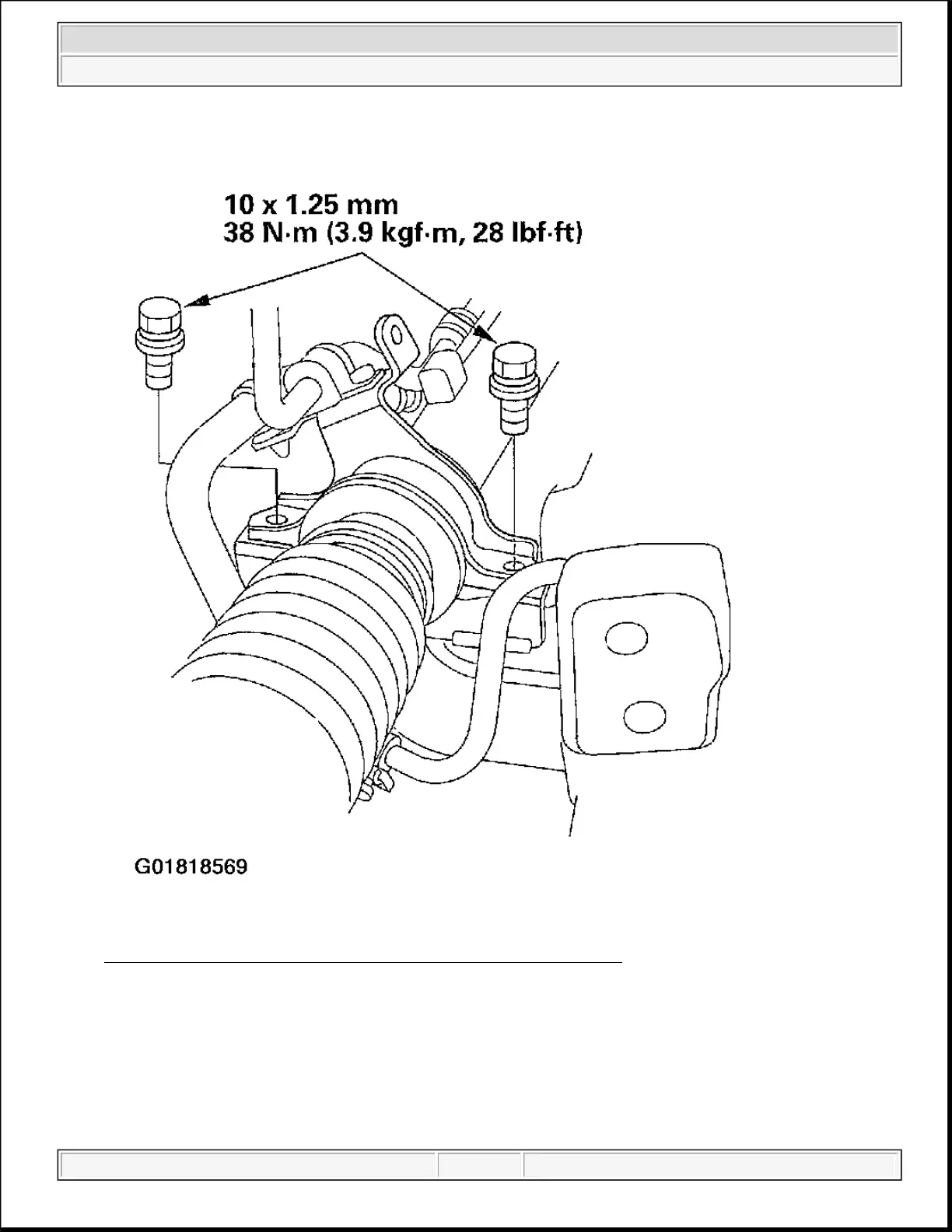

Fig. 55: Installing The Steering Gearbox Mounting Bracket Bolts

29. Secure the power steerin

fluid line bracket on the subframe with the bolt.

2004 Acura TSX

2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX

Wednesday, March 12, 2008 9:44:48 PM Page 56
