Acura TSX 2004 - Removing the Power Steering Fluid Line Bracket from the Front Subframe

76 pages

To Next Page

To Previous Page

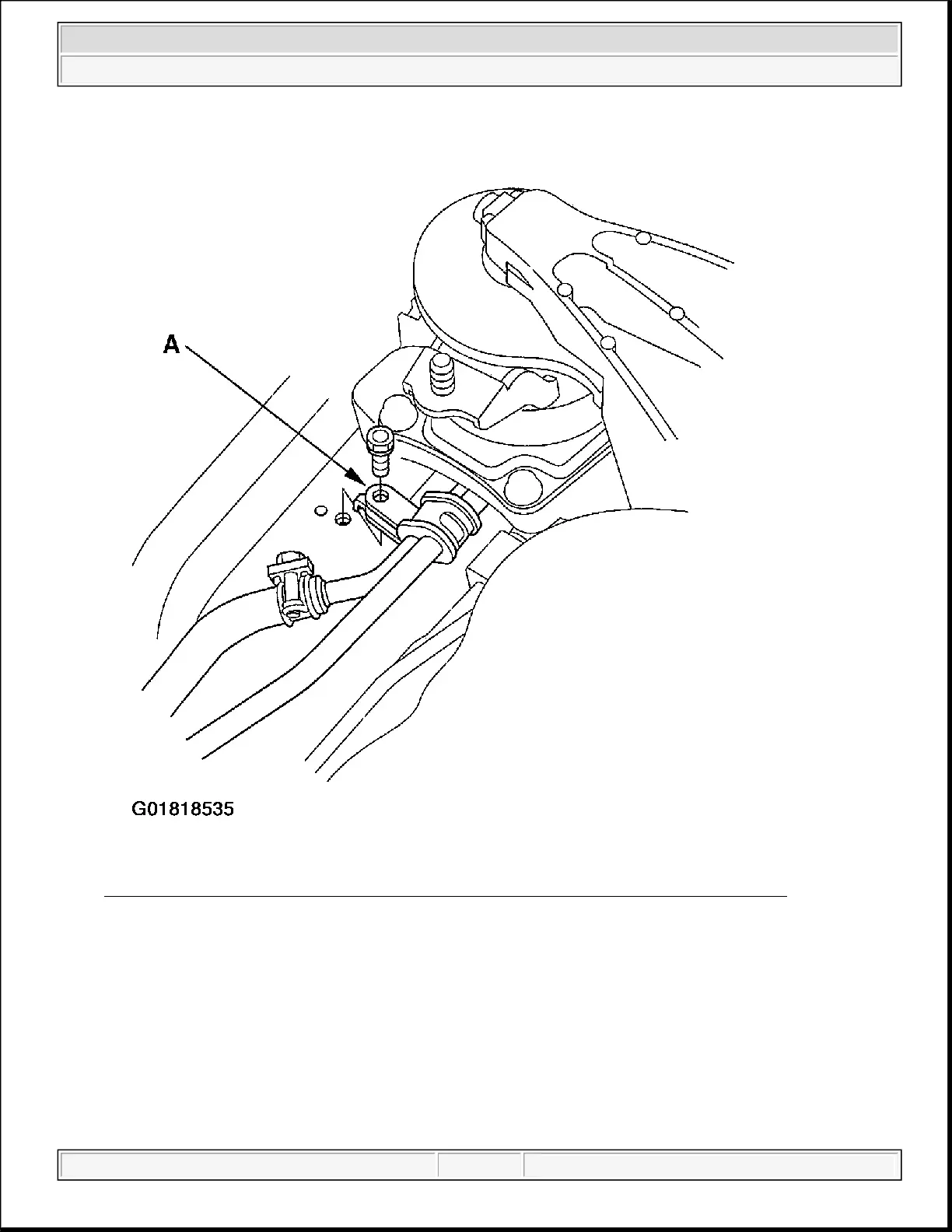

Fig. 21: Removing The Power Steering Fluid Line Bracket From The Front Subframe

37. Remove the steering gear box mounting bolts and stiffener.

2004 Acura TSX

2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX

Wednesday, March 12, 2008 9:44:47 PM Page 22
