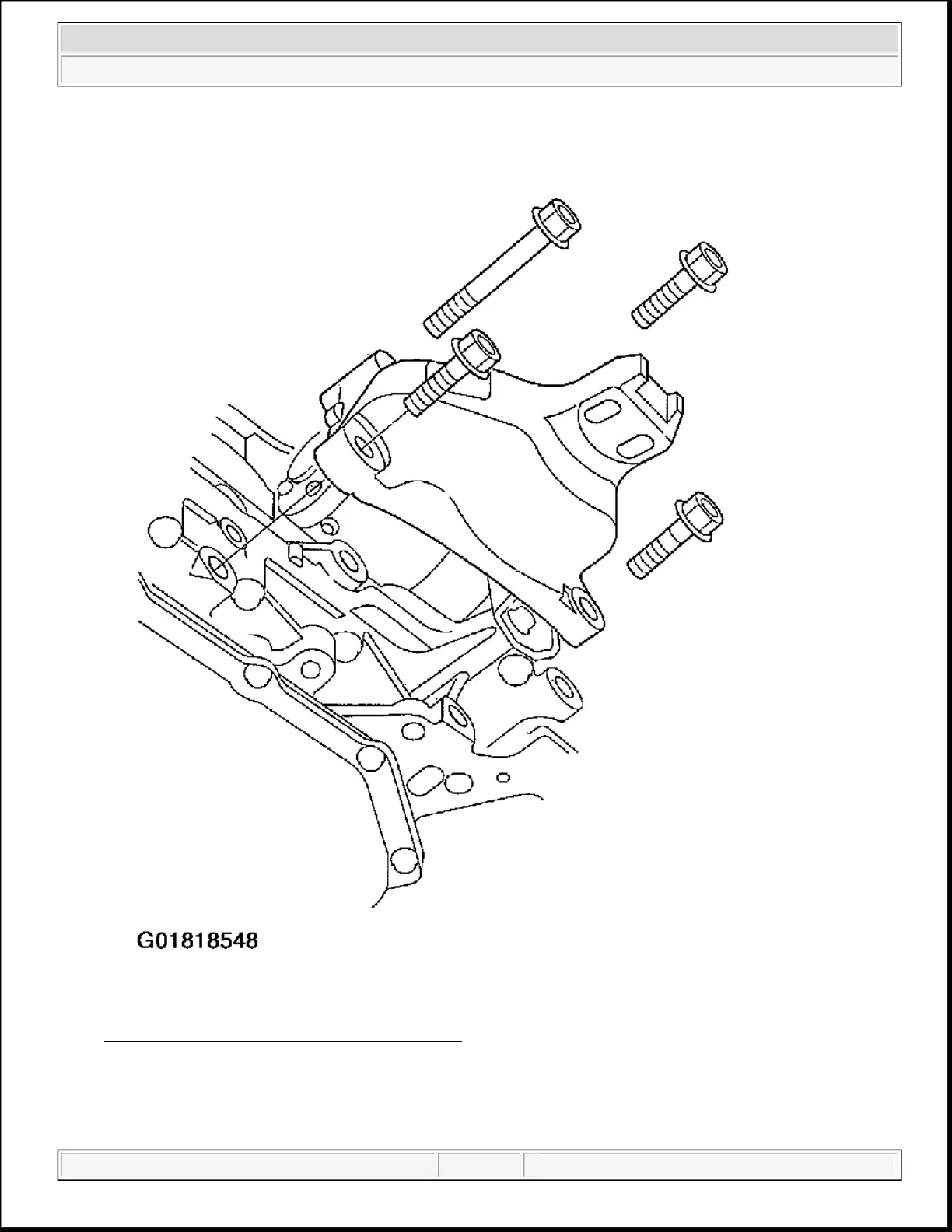

Fig. 34: Removing The Front Mount Bracket

56. Remove the transmission housing mounting bolts on the front of the transmission.

2004 Acura TSX

2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX

Wednesday, March 12, 2008 9:44:48 PM Page 35
