Acura TSX 2004 Removal And Installation

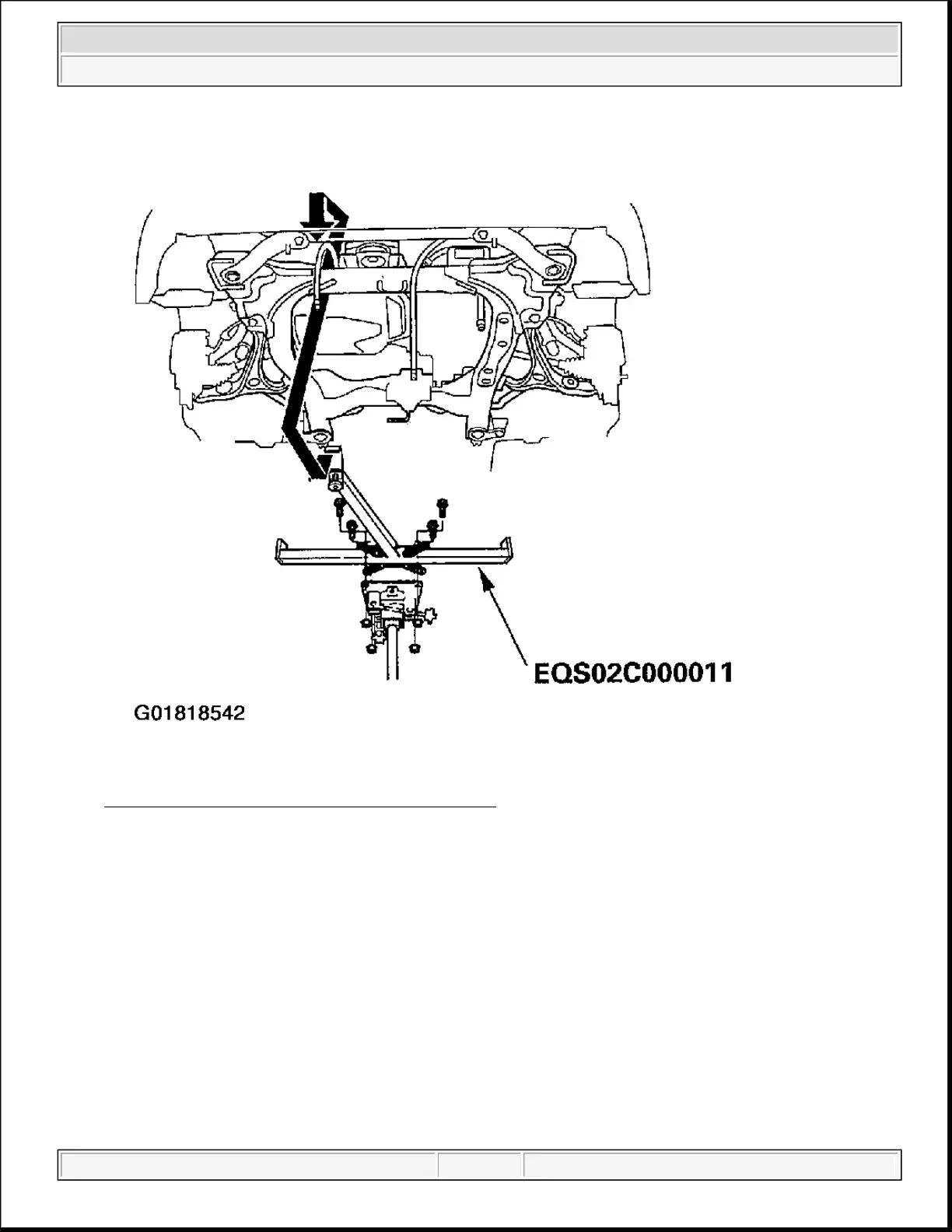

Fig. 28: Attaching Special Tool To The Subframe
44. Raise the jack and line up the slots in the arms with the bolt holes on the corner of the jack base, then
attach them with bolts securely.
45. Remove the four bolts securing the stiffeners (A), and four bolts securing the front subframe (B). Lower
the front subframe while sliding the steering gearbox (C) out to clear the gearbox mounting bracket (D)
on the subframe.
2004 Acura TSX
2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX
Wednesday, March 12, 2008 9:44:48 PM Page 29
