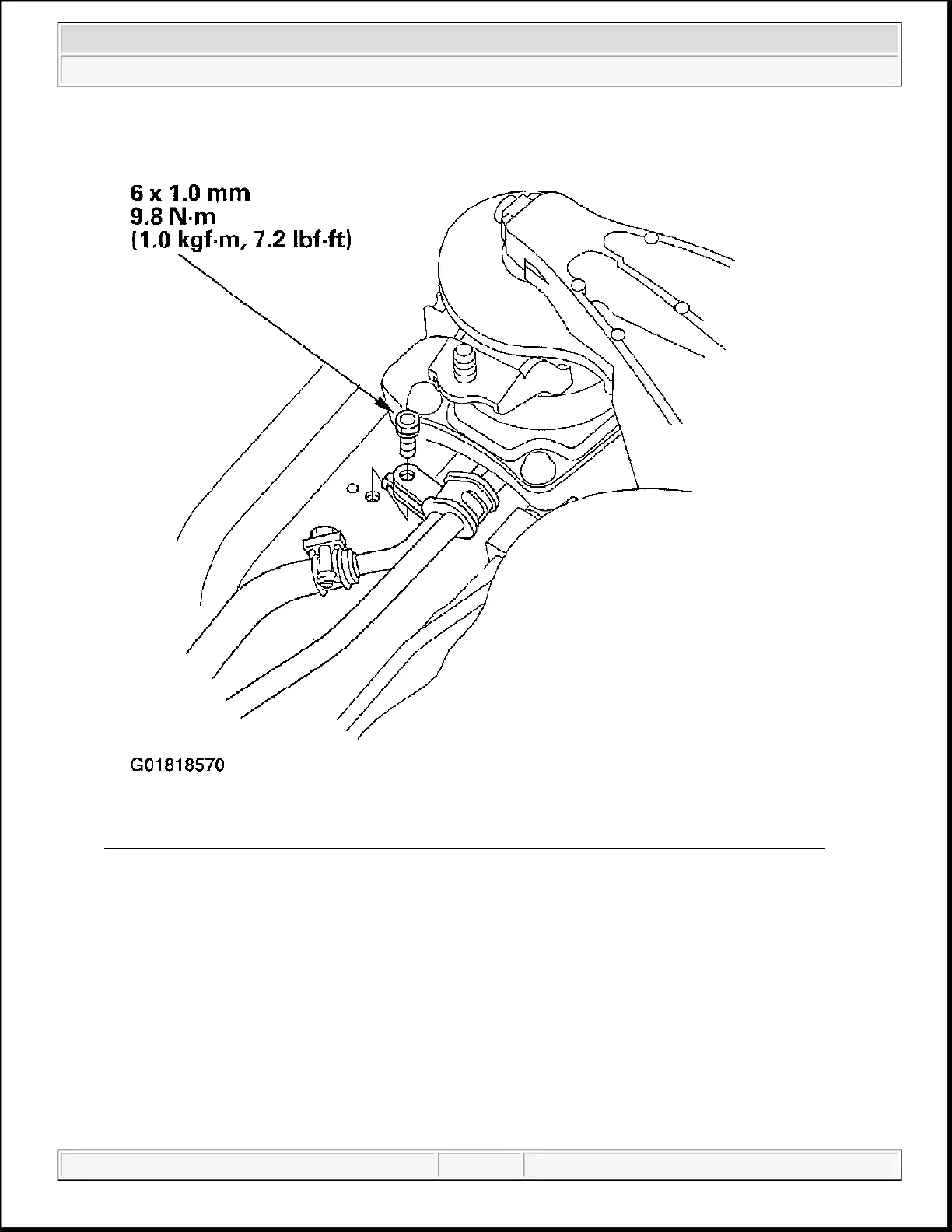

Fig. 56: Securing The Power Steering Fluid Line Bracket On The Subframe With The Bolt

30. Install the rear mount stop.

2004 Acura TSX

2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX

Wednesday, March 12, 2008 9:44:48 PM Page 57
