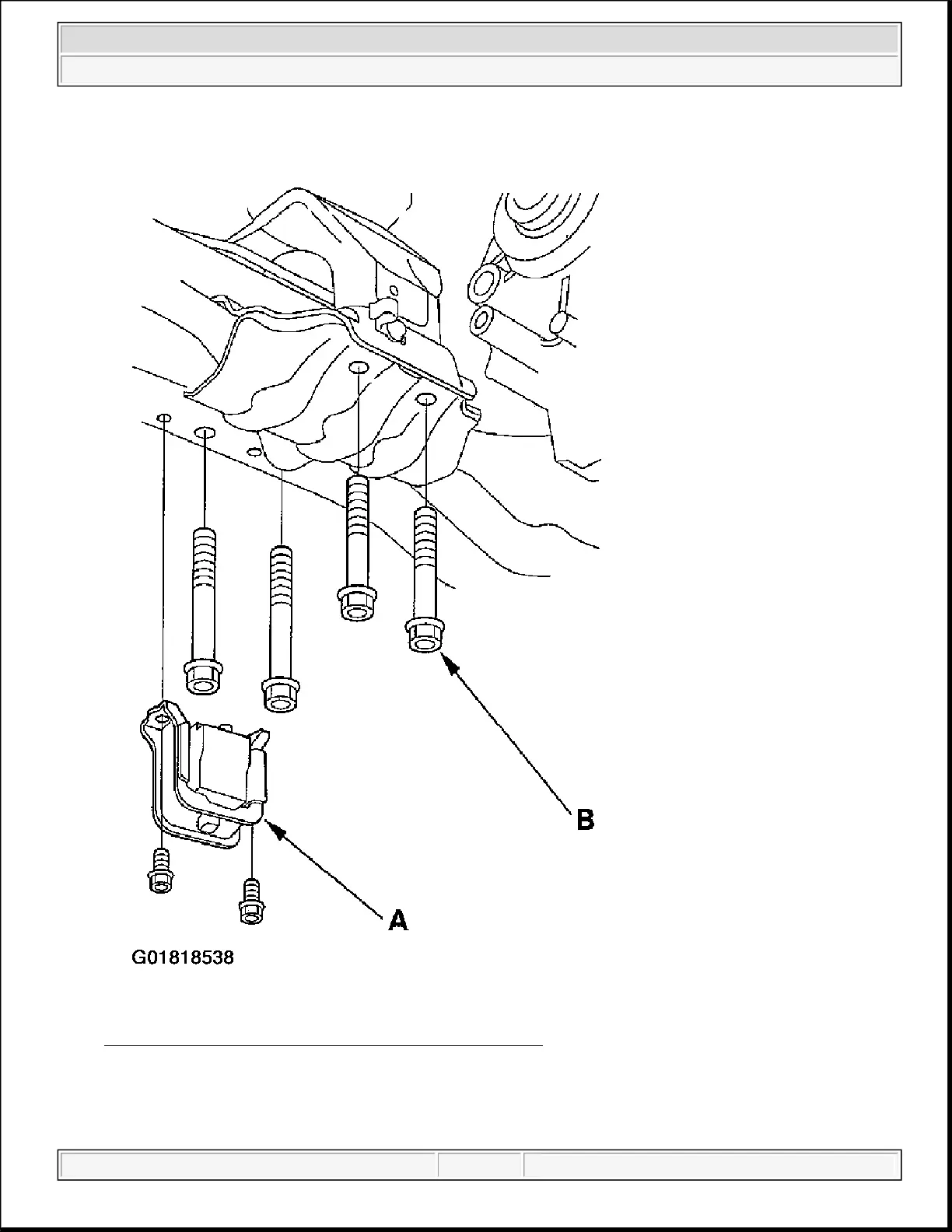

Fig. 24: Removing The Rear Mount Base Bracket Bolts

40. Remove the transmission lower mounts nuts.

2004 Acura TSX

2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX

Wednesday, March 12, 2008 9:44:47 PM Page 25
