Acura TSX 2004 Removal And Installation

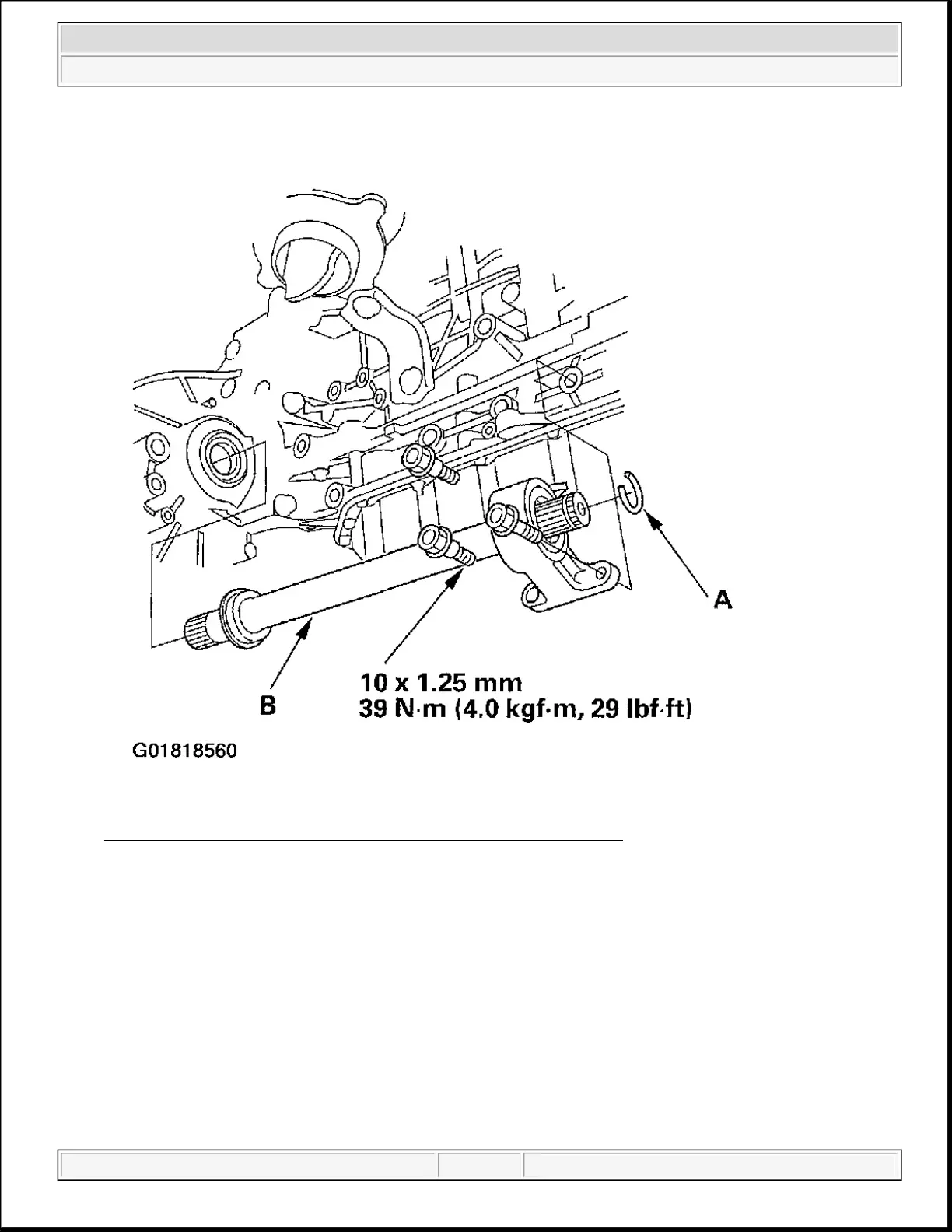

Fig. 46: Installing The NEW Set Ring On The Intermediate Shaft
13. Clean the areas where the intermediate shaft contacts the transmission (differential) with solvent or
carburetor cleaner, and dry with compressed air. Then install the intermediate shaft (B), be sure not to
allow dust or other foreign particles to enter the transmission.
14. Install the new set ring on the left driveshaft.
15. Clean the areas where the left driveshaft contacts the transmission (differential) with solvent or carburetor
cleaner, and dry with compressed air. Then install the left driveshaft, be sure not to allow dust or other
foreign particles to enter the transmission. Turn the steering knuckle fully outward, and slide the
driveshaft into the differential until you feel its set ring fully engage the side gear.
16. Slide the right driveshaft over the intermediate shaft splines until you feel the driveshaft fully engage the
intermediate shaft set ring.
17. Install the transmission lower mounts.
2004 Acura TSX
2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX
Wednesday, March 12, 2008 9:44:48 PM Page 47
