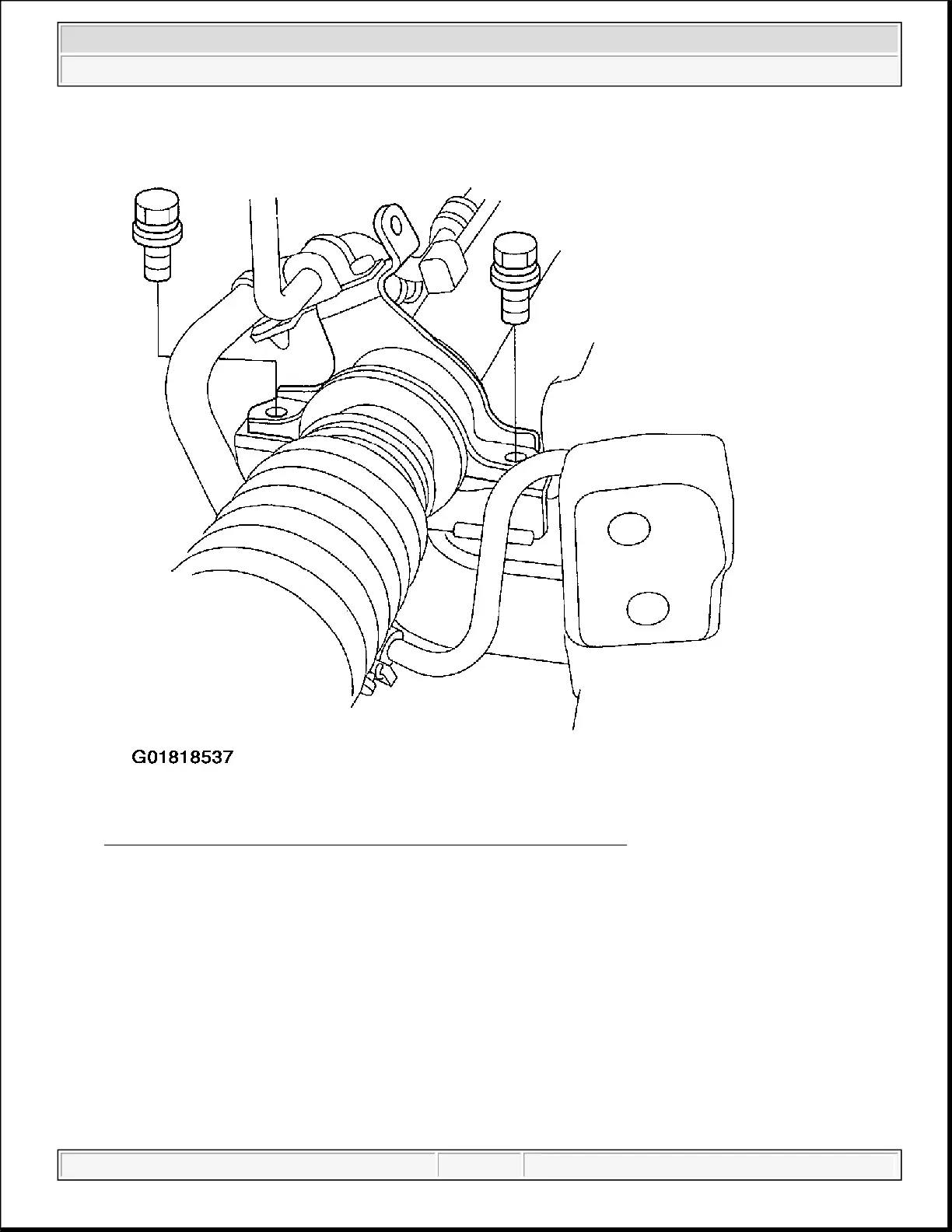

Fig. 23: Removing The Steering Gearbox Mounting Bracket Bolts

39. Remove the damper (A), then remove the rear mount base bracket bolts (B).

2004 Acura TSX

2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX

Wednesday, March 12, 2008 9:44:47 PM Page 24
