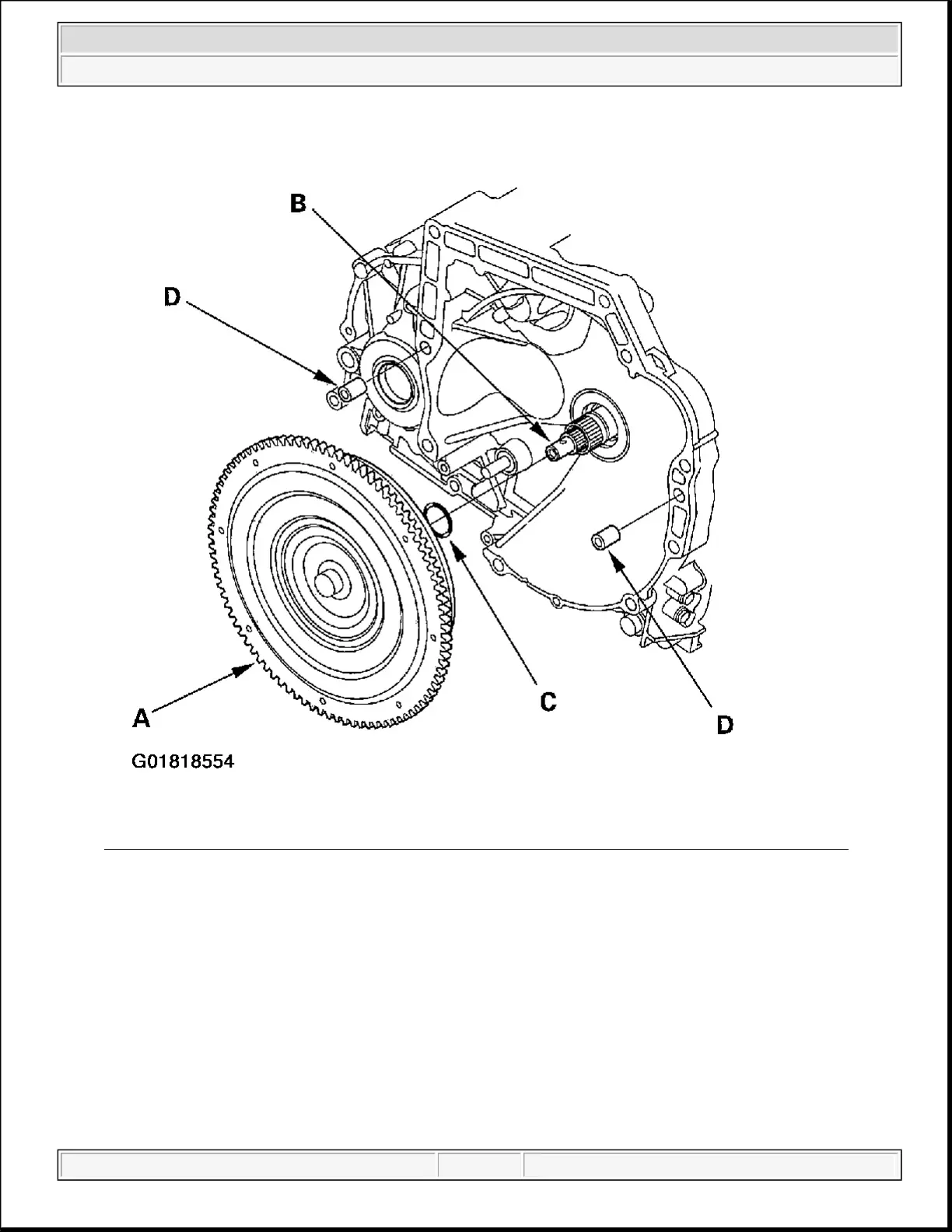

Fig. 40: Installing The Torque Converter Assembly On The Mainshaft With The New O-Ring

3. Install the 14 x 20 mm dowel pins (D) in the torque converter housing.

4. Place the transmission on the jack, and raise the transmission to the engine level.

5. Attach the transmission to the en

ine, then install the transmission housin

mountin

bolts.

2004 Acura TSX

2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX

Wednesday, March 12, 2008 9:44:48 PM Page 41

Removal & Installation - TSX1
Transmission Removal1
Special Tools Required1
Removing the Drain Plug2
Disconnecting Connectors3
Removing the Transmission Range Switch Connector4
Disconnecting 3Rd Clutch Transmission Fluid Pressure Switch Connector5
Disconnecting the Shift Solenoid Harness Connector6
Removing the ATF Cooler Hoses from the ATF Cooler Lines7
Removing the ATF Cooler Hose from the Hose Clamp8
Removing the Ground Cable9
Transmission Upper Mount Bracket Plate & Transmission9
Removing the Harness Clamp & Hose & the Bolts Securing the Hose Clamps10
Removing the Clamp Bracket11
Attaching the Special Tool Adapter13
Installing the Engine Support Hanger to the Vehicle13
Disconnecting the Hose from the Vacuum Line14
Removing Components15
Removing the Exhaust Pipe16
Removing the Steering Gearbox Heat Shield17
Removing the Bolt Securing the Power Steering Fluid Line Bracket17
Removing Power Steering Fluid Line from Its Clamps on Front Subframe18
Removing the Engine Stiffener19
Removing the Drive Plate Bolts While Rotating Crankshaft Pulley19
Removing the Shift Cable Cover20
Removing the Rear Mount Stop21
Removing the Power Steering Fluid Line Bracket from the Front Subframe22
Removing the Steering Gear Box Mounting Bolts & Stiffener23
Removing the Steering Gearbox Mounting Bracket Bolts24
Removing the Rear Mount Base Bracket Bolts25
Removing the Transmission Lower Mounts Nuts26
Removing the both MID-Mounts27
Attaching Special Tool to the Subframe29
Removing the Four Bolts Securing the Stiffeners30
Four Bolts Securing the Front Subframe30
Removing the Transmission Lower Mounts31
Removing the Intermediate Shaft32
Removing the Rear Mount/Base Bracket33
Removing the Transmission Housing Mounting Bolts34
Removing the Front Mount Bracket35
Removing the Torque Converter38
Drive Plate Removal & Installation39
Checking the Transmission Lower Front Mount & Lower Rear Mount39
Transmission Installation40
Removing the Drive Plate & Washer from the Engine Crankshaft40
Attaching the Transmission to the Engine42
Installing the Transmission Housing Mounting Bolts42
Installing the Front Mount Bracket with the NEW Bolts45
Installing the Rear Mount Bracket46
Installing the NEW Set Ring on the Intermediate Shaft47
Installing the Transmission Lower Mounts48
Support the Front Subframe with the Special Tool49
A Jack & Lifting It up to Body49
Slide the Steering Gearbox in the Gearbox Mounting Bracket on Subframe50
Installing the MID-Mounts Mounting Bolts51
Aligning the Reference Marks with Edge of both Rear Stiffener52
Installing the Rear Mount Base Bracket Bolts54
Installing the Transmission Lower Mounts Nuts54
Installing the Steering Gearbox Mounting Bolts & Stiffener55
Installing the Steering Gearbox Mounting Bracket Bolts56
Securing Power Steering Fluid Line Bracket on the Subframe with Bolt57
Installing the Rear Mount Stop58
Attaching the Torque Converter to the Drive Plate60
Securing the Power Steering Fluid Line with the Clamps61
Securing the Power Steering Fluid Line Bracket62
Installing the Exhaust Pipe63
Installing the Damper Forks with Damper Pinch Bolts64
NEW Self-Locking Nuts64
Installing the NEW Front Mount Bolt65
Removing the Engine Support Hanger66
Removing the Special Tool Adapter from the66
Engine67
Installing the Clamp Bracket67
Installing the Strut Brace68
Installing the Transmission Upper Mount Bracket69
Transmission Upper Mount Bracket Plate & Ground Cable69
Connecting the ATF Cooler Hose70
Connecting the 3Rd Clutch Transmission Fluid Pressure Switch Connector72
Connecting the Shift Solenoid Harness Connector73
A/T Clutch Pressure Control Solenoid Valve B Connector73
Solenoid Valve C Connector73
Connecting the Countershaft Speed Sensor Connector74
Mainshaft Speed Sensor Connector74
Installing the A/T Clutch Pressure Control Solenoid Valve a Connector75
2Nd Clutchtransmission Fluid Pressure Switch Connector75
