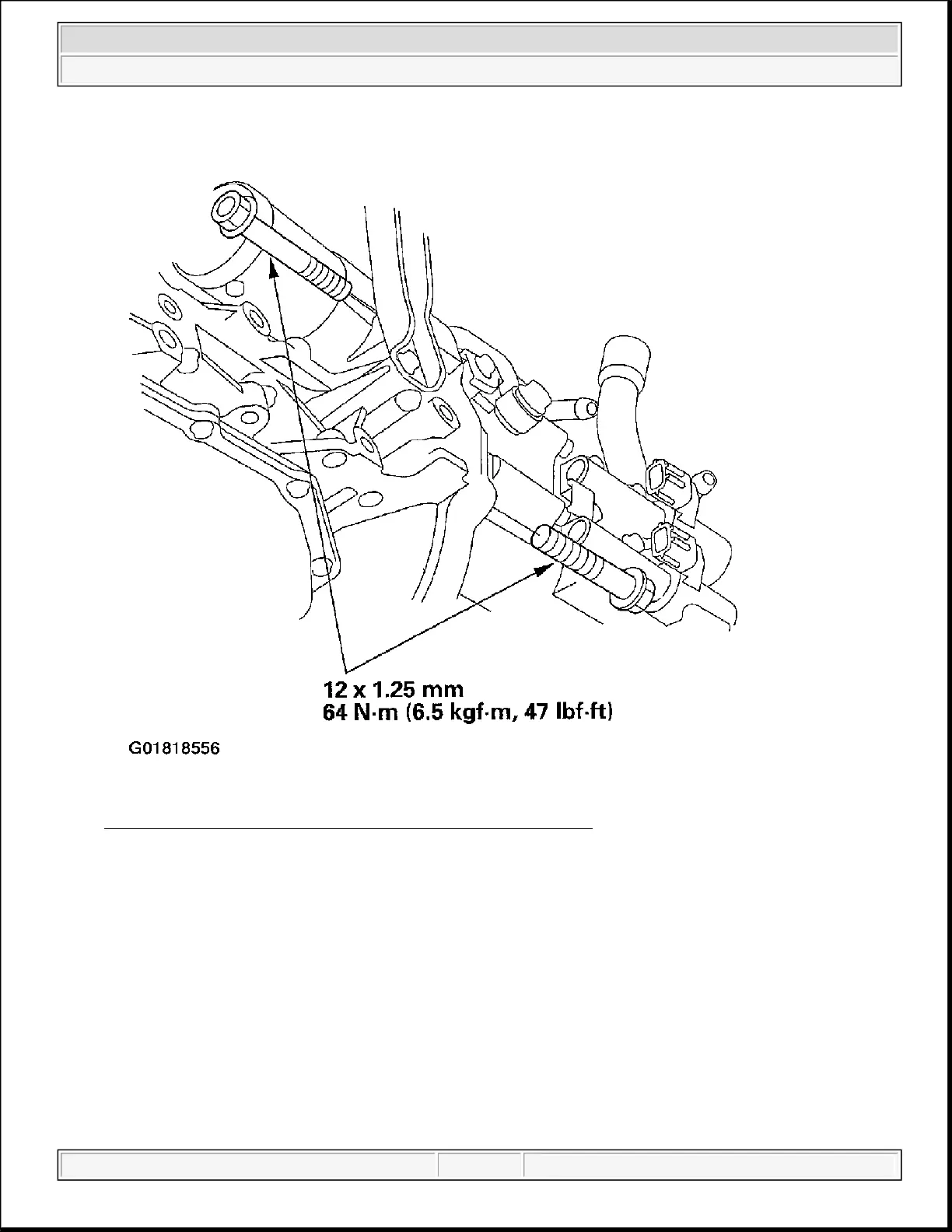

Fig. 42: Installing The Transmission Housing Mounting Bolts

7. Install the transmission housin

mountin

bolts.

2004 Acura TSX

2004 AUTOMATIC TRANSMISSIONS Removal & Installation - TSX

Wednesday, March 12, 2008 9:44:48 PM Page 43
