ADE Accenta G3 Engineering Information

‘Flag B’ options
Note: The following settings:
Communicator output, Line Fail,
Program 1, 2 and 3 to report are not
applicable to Optima compact G3 panel.
Viewing the event log
18 4PI175 issue 1_6/01
Engineering information Accenta/Optima G3 Intruder system

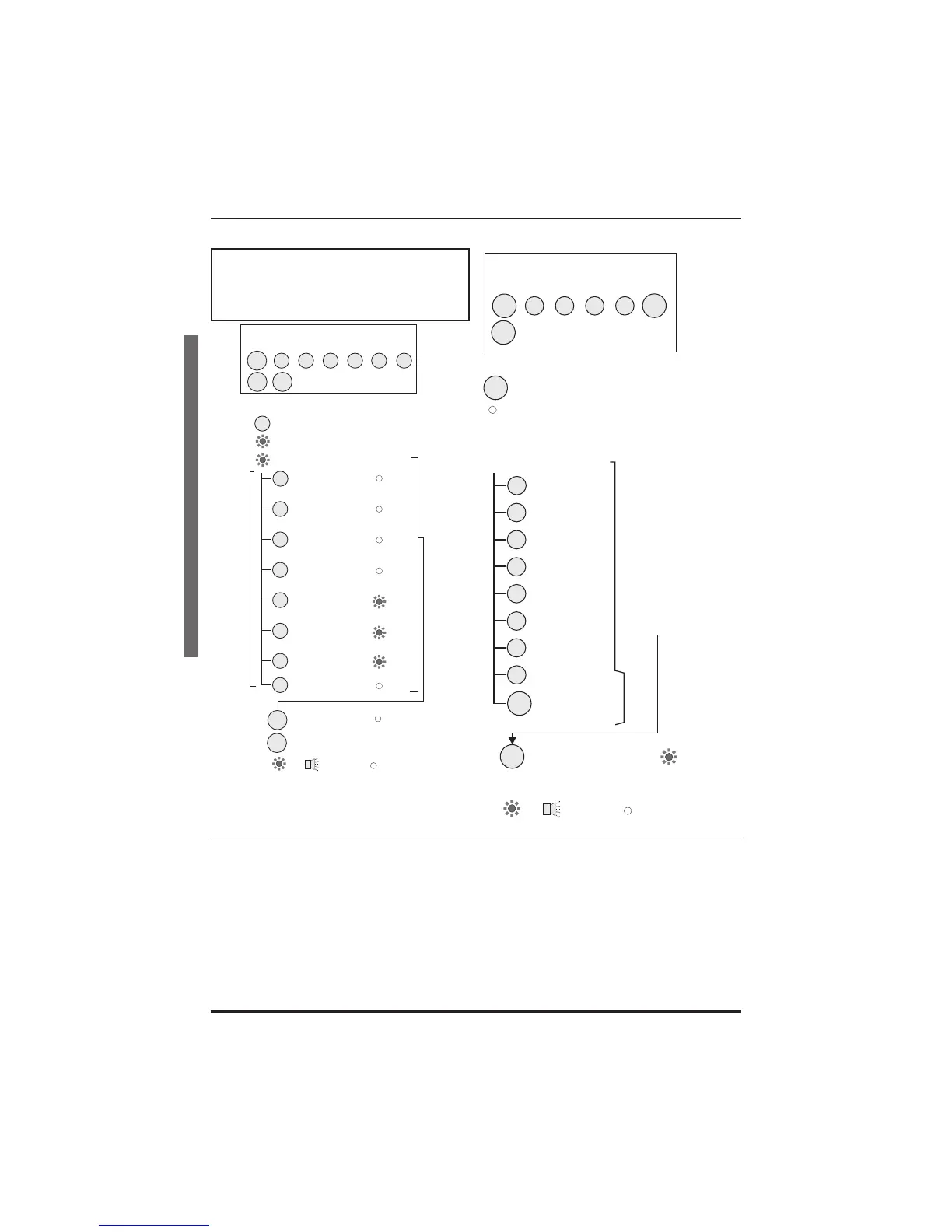

‘Flag B’ options
Flags B
Communicator
output active high
Line fail active
high
User Reset PA
User Reset Fire
Program 1
to report
Program 2
to report
Program 3
to report
5
6
7
2
3
4
1
4
Factory defaults
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Zone 6
Zone 7
Attack
Appropriate
Zone indicator
is lit to show
flag setting
Exit current level
Leave engineer mode
Day
Tamper
Attack
Acknowledge
Zones 1-8
Momentarily On
Entry deviate
8
Zone 8
Press number button to
select / deselect function
Enter Engineering program mode
Reset
Reset
Example: To set the panel for
user to reset PA, Press:
3
Prog
9 9 9 9
Reset
4
Reset
Flag B descriptions:
Communicator output active high: When this
flag is set it configures the polarity of
communicator outputs to active high, that is
output is held at 0V rising to 12V in alarm.
Line fail active high: When this flag is set it
configures the polarity of line fail input.
User Reset PA: When this flag is set it permits
the user code to reset the system after a PA
alarm, even if Engineer reset flag is set.
User Reset Fire: When this flag is set it permits
the user code to reset the system after a Fire
alarm, even if Engineer reset flag is set.
Program n to Report: When this flag is set it
allows program n to activate the intruder and
confirmed outputs. (Main use is to prevent a
night time program from communicating).
Entry deviate: When this flag is set it permits
an immediate zone to be activated during the
entry period without causing a full alarm.
Reset
View the event log
Chime
5
6
7
2
3
4
1
8
View event 1
(oldest event)
View event 2
View event 3
View event 4
View event 5
View event 6
View event 7
View event 8
(Newest event)
Automatic event scroll
Starting from event 1 to 8
To manually scroll
Resume
automatic scroll
Zone, PA and
Tamper indicators
will be lit to
show zone in
alarm.
Flashing indicates
the first zone in
alarm.
Day indicates
status of panel
at the time of alarm
Leave engineer mode
Stop event scroll / view
Tamper
Day
Tamper
Acknowledge
Tamper
Enter Engineer program mode
Chime
Example: To view up to
8 previous events and thereafter
to stop the event scroll, Press:
Chime
Prog
9 9 9 9
Reset
