3000EN Series: Installation Instructions
2-10
4219/4229 Expansion Zones
1. Connect each module to the control’s touchpad terminals.
2. Assign each module a unique device address (07-11) using its DIP switches. Device addresses are
based on the zone numbers being used, as shown below.
Expander Module Addresses
For Zones… Set Module to Device Address…
(see DIP chart)
09-16 07
17-24 08
25-32 09
33-40 10
41-48 11
3. Connect sensors to the module’s loops.
4. If using relays with the 4229, connect the desired field wiring to the unit's relay contact
terminals.
Notes
• The system supports up to 40 expansion zones (NO or NC) using up to five (5) 4219 and/or 4229
Zone Expander Modules.
• Use 1000 ohm end-of-line resistors at the end of loops connected to the 4219/4229 modules. (End-of
line resistors used on the control are 2000 ohms.)
•
Expansion zones have normal response time (300–500 msec), except zone connected to each
module’s loop “A,” which can be set for fast response (10–15 msec).
4219/4229 DIP Switch Address Settings
SW ADDRESS
7 8 9 10 11
2 off ON off ON off
3 off ON ON off off
4 off ON ON ON ON
5 ON off off off off
BRN
GRN
BLK
(–) GROUND
RED
(+) 12VDC
YEL
4
3
2
1
ZONES
A
B
C
D
F
GH
DIP SWITCH
FOR SETTING ADDRESS
AND ZONE "A" RESPONSE
TAMPER JUMPER POSITION
4229 IN CABINET
(NOT TAMPER)
4229 REMOTE
(TAMPER PROTECTED)
TB1
4229
TB2
WHT
GRY
VIO
BLK
YEL
ORG
NO
NC
C
GND
NO
NC
C
RLY
1
RLY
2
RELAYS OFF
RELAY
CONNECTOR
RELAY
2
RELAY
1
(TERM 6)
(TERM 4)
(TERM 5)
(TERM 7)
NO C NC
TERMINALS ON
CONTROL PANEL
1
2
3
4
DATA OUT (>)
TO CONTROL
DATA IN (<)
FROM
CONTROL
5
8
11
REED
(TAMPER)
SWITCH
2
E
1
3
4 6
7
9
10
12
TERMINATE EACH
PROGRAMMED ZONE
WITH 1000 OHM (1K)
END-OF-LINE RESISTOR
(EACH ZONE'S MAX.
LOOP RESISTANCE
300 OHMS + EOL)
4-PIN CONSOLE PLUG
EITHER OR BOTH CAN BE USED
4229-002-V0

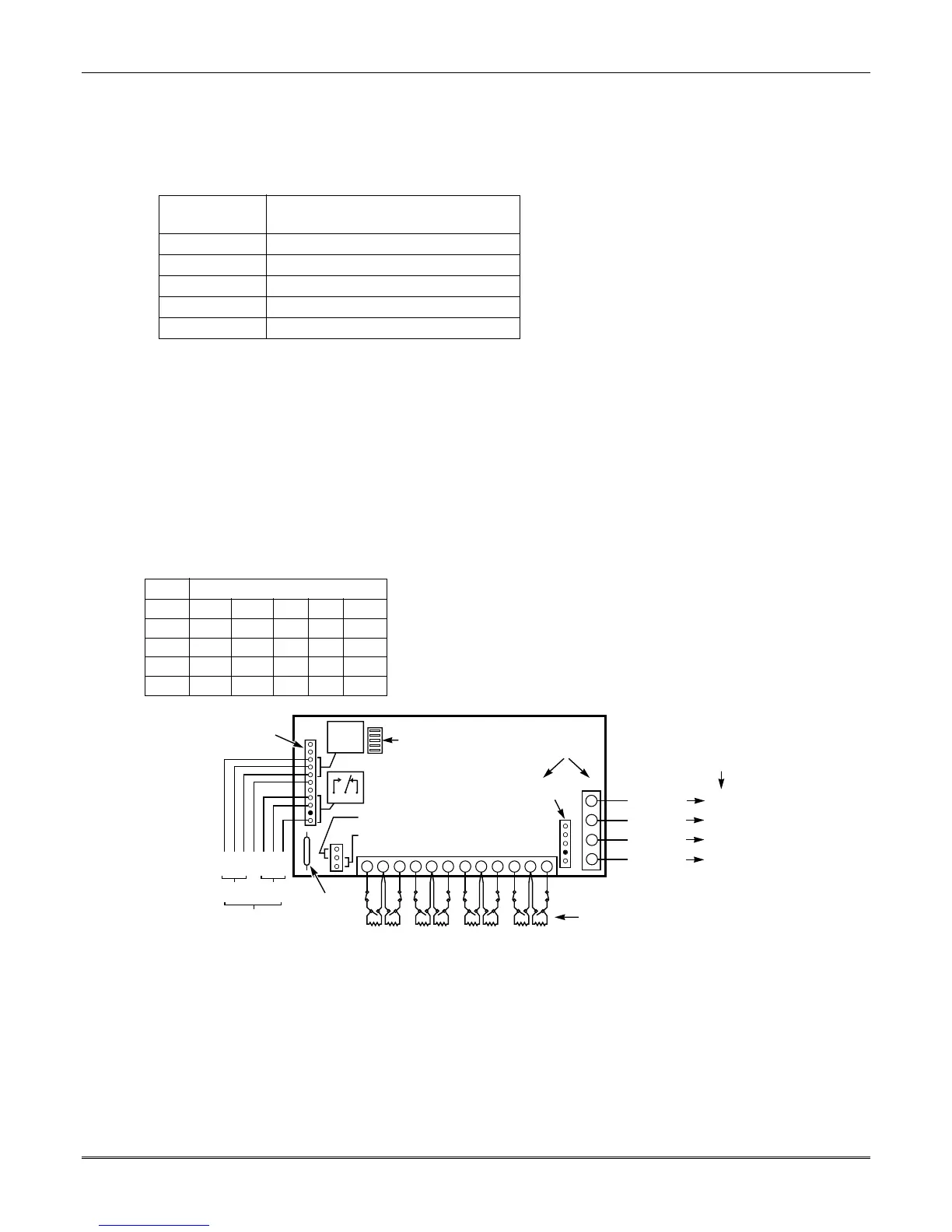

Figure 8. Wiring Connections, 4219 & 4229 (4229 shown)
