3000EN Series: Installation Instructions
2-16
On-Board Triggers
Connect field wiring to the desired trigger pin on the 8-pin trigger connector centrally located above
the terminal strip.
If using 1361X10 transformer and powerline carrier devices, use the SA4120XM-1 cable (part of
4120TR Trigger Cable). See Wiring the AC Transformer section for transformer-to-trigger
connections.
If only using the on-board triggers, you can use a 4-wire cable (N4632-4, supplied with the
control) as shown below.
U
L
If on-board triggers are used, the wiring between the control unit and the UL Listed device must be run in
conduit, be no more than 3 feet apart and have no intervening barriers or walls.
Notes
The trigger outputs are normally high, and go low upon programmed condition.
The outputs can be programmed for inverted operation (normally low, go high) using *79 Menu
mode.
Program these triggers using *80/*81 Menu modes as you would for any other relay output.
When using these outputs, note:
pin 1 = output number 17 (trigger 1):
15 ohms to ground when closed (output low), open when off (output high, normal default);
can be used to reset smoke detector power (must set “output normal low = yes” in *79 Menu
mode, and set for zone type 54, fire zone reset, in *80 Menu mode); or can support 12V relay
module
that draws less than 100mA
pin 5 = output number 18 (trigger 2):
100 ohms to ground when closed (output low); open when off (output high, normal default);
or can support 12V relay module that draws less than 20mA
† e.g., Altronix AX-RBS
1345678
SA412OXM-1
CABLE
8-PIN TRIGGER CONNECTOR
KEY
ADT3000-006-V0
+12 AUX.
DATA
COM
SYNC
GND (-)
OUTPUT 17
(RED)
OUTPUT 18
(GREEN)
(ORANGE)
(YELLOW)
(BLUE)
(PURPLE)
(BLACK)
4-WIRE
CABLE
00-trigcon-005-V2
+12 AUX.
GND (-)
OUTPUT 17
OUTPUT 18
(RED)
(YELLOW)
(BLACK)
(GREEN)
1345678
8-PIN TRIGGER CONNECTOR
KEY

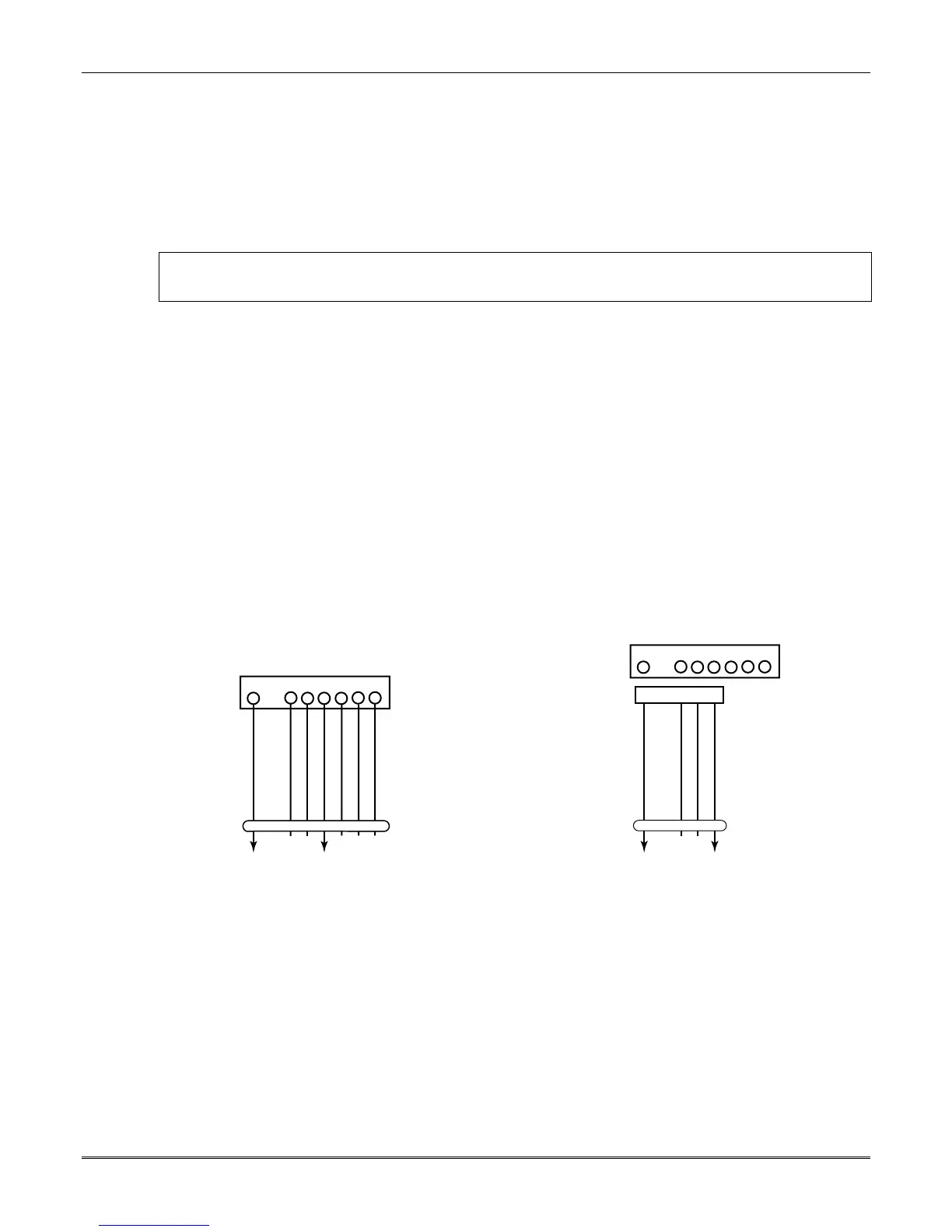

Figure 12. On-Board Trigger Connector with Figure 13. On-Board Trigger Connector with
SA4120XM-1 Cable for Use With 1361X10 Transformer 4-Wire Cable for Trigger Use Only
