3000EN Ser
ies: Inst
allation Ins
truct
ions
2-20
12
3
4
5
6
78
9
1
0
1
1
29
30
31
32
33
34
NOTE:
REFER T
O UVCM MODULE
INSTRUCTIONS FOR
CONNECTIONS TO AUDIO
SPEAKERS AND MICROPHONE.
UVCM
MODULE
CONTROL
EARTH
GROUND
RED (R)
GREEN (T)
GREY (R)
BROWN (T)
TRIGGER
CONNECTOR
OUTPUT 18
4286
RING
TIP
F
ALLING VOICE TRIG
GND
+12VDC IN
SWITCH
BANK 2
SWITCH
BANK 1
SWITCH BANK 2
SWITCH BANK 1
AUXILIAR
Y
AUDIO LEVEL
ADJUSTMENT
TRIM POT
aav_uvcm-004-V1
ZONE
TERMINALS
OPTIONAL
MONITORING
ZONE
CONNECTION
(USE ZONE
TYPE 81)
23
24
25
22
21
4
5
INCOMING
PHONE LINE
TO
PREMISES
HANDSET
RJ31X
2
3
4
1
5
1 = ON
2 = ON
3 = OFF
4 = ON
5 = ON
6 = ON
7 = ON
8 = ON
1 = OFF
2 = OFF
3 = OFF
4 = OFF
5 = OFF
6 = OFF
7 = OFF
8 = ON
ON
ON
1
2345678
1
2345678
RING
TIP
+12VDC
GND
EOL

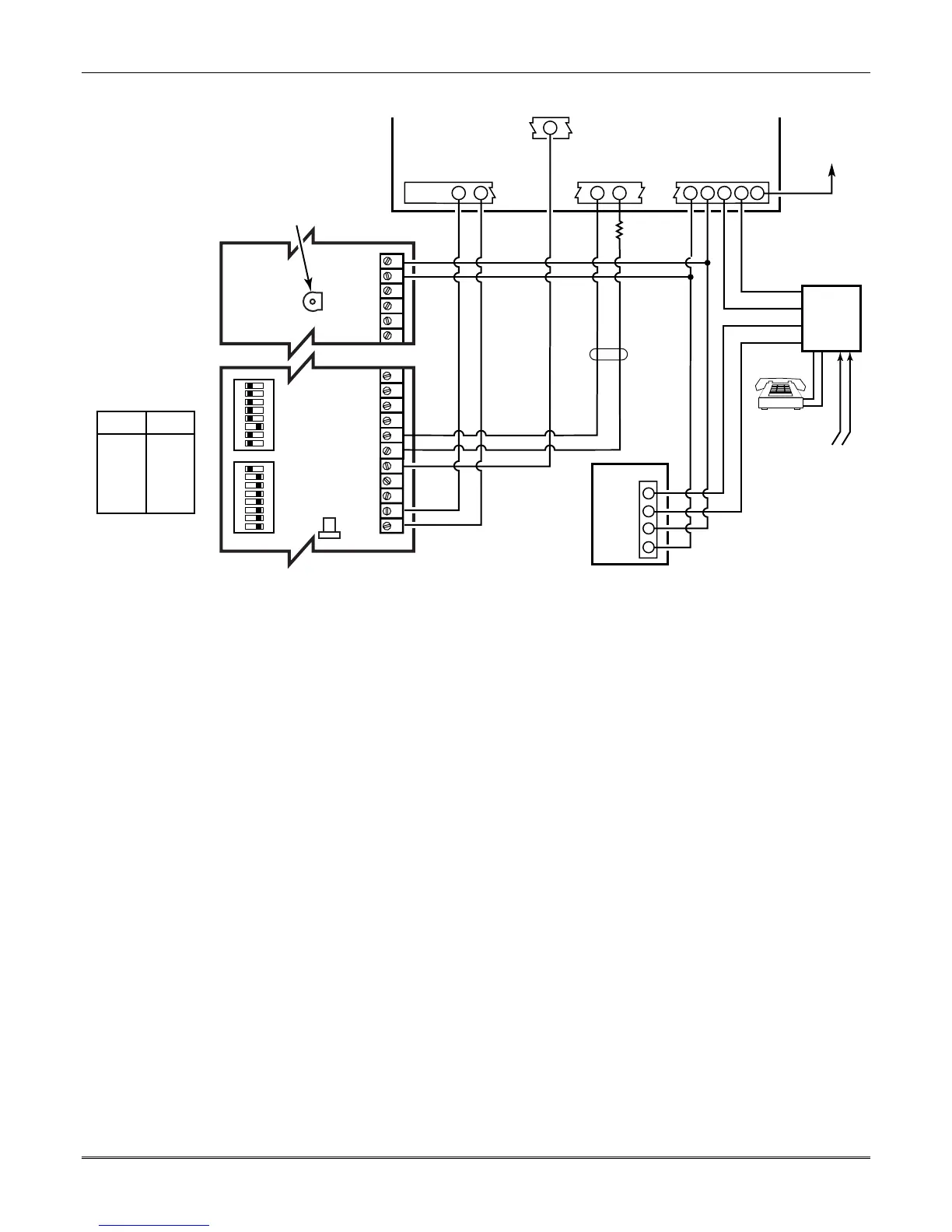

Figure 16. Connection of AA
V Unit When Using a 4286 Phone Module
25
27
Table of Contents
Default Chapter
2
Recommendations for Proper Intrusion Protection
2
Recommendations for Proper Protection
2
Recommendations for Smoke and Heat Detectors
2
Table of Contents
3
Features and Installation Highlights
5
Capabilities
5
Functions
5
Compatible Devices
6
Important Installation Highlights (Installer Please Read)
6
Mounting and Wiring the Control
7
Cabinet and Lock
7
Mounting the PC Board Alone (no RF Receiver)
7
Mounting Board with RF Receiver
8
Wiring to Touchpads
9
Sounder (Bell) Connections
10
Wiring the AC Transformer
11
Backup Battery
12
Earth Ground
12
Hardwire Zones
14
Smoke Detectors
14
4219/4229 Expansion Zones
16
Installing the RF Receiver
17
Installing a 5800TM Module
18
Installing the Transmitters
18
Installing a Keyswitch
19
Connecting Relay Modules
20
Powerline Carrier Devices
21
On-Board Triggers
22
Phone Line/Phone Module Connections
23
Audio Alarm Verification Connections (AAV, "Listen-In")
25
Long Range Radio (Communication Device) Connections
28
Programming Overview
29
About Programming
29
Zones and Partitions
29
Touchpads
30
Wireless Receiver, Transmitters, and Wireless Keys (Keyfobs)
30
Pager Programming
30
Function Keys
31
Output Devices
31
Zone Type Definitions
31
Mechanics of Programming
33
Data Field Programming
35
About Data Field Programming
35
Programming Data Fields
35
System Setup Fields (∗20 - ∗29)
35
Zone Sounds & Timing ( ∗ 31- ∗ 39)
36
Dialer Programming ( ∗ 40 - ∗ 50)
37
System Status Report Codes ( ∗ 59- ∗ 68)
39
Restore Report Codes ( ∗ 70- ∗ 76)
41
Miscellaneous System Fields
41
Alpha Descriptor Programming
42
Pager Programming Fields
45
Miscellaneous System Fields
46
Configurable Zone Type Programming Fields
47
Icenter (AUI) Enable
47
Touchpad Programming Fields
50
Zone Programming
51
About Zone Programming
51
∗ ∗ ∗ ∗ 56 Zone Programming Procedure
51
Completing Zone Programming
55
∗ ∗ ∗ ∗ 58 Expert Programming Mode Procedures
55
Wireless Key Programming Templates
57
Output Device Programming
59
About Output Device Programming
59
*79 Menu Mode: Output Device Mapping
59
*80 Menu Mode: Defining Output Functions
61
Zone Lists
65
About Zone Lists
65
Zone List Programming
65
Function Key Programming
67
About Function Key Programming
67
Programming Function Keys
67
Alpha Descriptor Programming
69
About Descriptor Programming
69
Menu Mode
69
Programming Zone Descriptors (Menu Mode ∗82)
69
Adding Custom Words (will Not be Annunciated by 4286 Phone Module)
71
Alpha Vocabulary List
72
Creating Schedules
73
About Schedules
73
∗ ∗ ∗ ∗ 29 IP/GSM Menu Mode
75
Communication Device Menu Mode (Pass-Through Programming)
75
∗ ∗ ∗ ∗ 29 IP/GSM Program Mode Procedure
75
AVS System Enable and Quick Program Commands
77
AVS Command Procedure
77
Quick Program Command Results
77
System Communication
79
Report Code Format (Ademco Contact ID)
79
Uploading/Downloading Via the Internet
81
System Operation
83
Security Codes
83
Touchpad Functions
85
Panic Keys
86
Setting the Real-Time Clock
86
Various System Trouble Displays
87
Testing the System
89
About Test Procedures
89
System Test
89
Go/No Go Test Mode
90
Checking Transmitter Enrollment
90
Dialer Communication Test and Periodic Test Reports
91
Specifications & Accessories
93
Security Control
93
Compatible Devices
93
5800 Series Transmitter Input Loop Identification
94
Regulatory Agency Statements
95
Limitations and Warranty
99
Warranty Information
100
