ADT SASW3000EN Installation And Setup Guide

3000EN Series: Installation Instructions
5-8
XMIT TO CONFIRM
PRESS ✱ TO SKIP
Confirm
[∗] to continue
13. If “Yes” was entered at the SET TO CONFIRM? prompt
previously (see first prompt following entry into the ∗58
Expert Programming Mode), the display on the left will
appear. Confirm serial and loop numbers by activating
the wireless key.
IMPORTANT:
When confirmed, the key is not active for arming/disarming
until it is assigned to a user number (using the assigning
attributes command, attribute “4”). See System Operation
section for procedure.
Entd A022-4063
Rcvd A022-4064
Not Confirmed
[∗] to continue
If the serial number transmitted does not match the serial
number entered, a display similar to the one shown will
appear. If the loop number does not match, it will also be
displayed.
If so, activate the button on the wireless key once again. If a
match is not obtained (i.e., summary display does not appear),
press the [#] key and then enter the correct serial number.
If the serial number transmitted matches the serial number
entered, the touchpad will beep 3 times and will return you to
step 8 (Zone Number prompt) to enter the starting zone for
the next wireless key. Or you can return to *58 Menu mode by
pressing 00 at the Zone Number prompt.
NOTE: Following the successful enrollment of each wireless
device, remove ONE of the serial number labels from the
device and affix it in the appropriate column on the
ENROLLED TRANSMITTERS worksheet of the
Programming Form; then enter the other information (zone
number, zone type, loop number, etc.) relevant to that device.

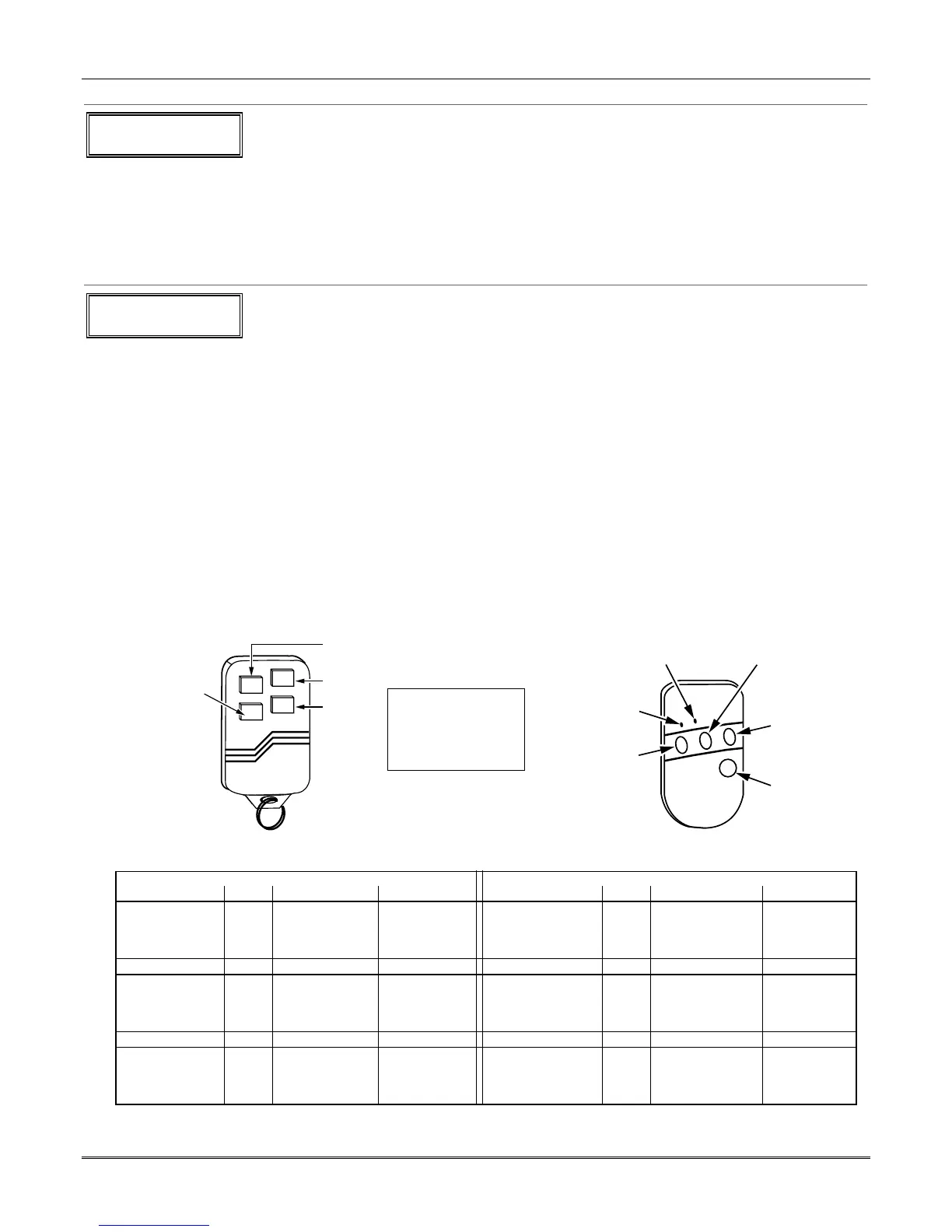

Wireless Key Predefined Default Templates
YOU MUST
PROGRAM
THIS BUTTON
LOOP 4
LOOP 3
ENROLL AS "BR"
LOOP 1
LOOP 2
ON
OFF
5804-001-V1
5804 Wireless Key Transmitter
Note:
These transmitters
are not intended for
use in UL
installations.
LOOP 3
LOOP 1
LOOP 2
LOOP 4
(YOU MUST
PROGRAM
THIS BUTTON)
RED/YELLOW
LED
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
GREEN/YELLOW
LED
ENROLL AS "BR"
5804BD-007-V0
5804BD 2-Way Wireless Key Transmitter
For 5804 For 5804BD
TEMPLATE 1 Loop Function Zone Type TEMPLATE 4 Loop Function Zone Type
1 No Response 23 1 No Response 23
2 Disarm 22 2 No Response 23
3 Arm Away 21 3 Arm Away 21
4 No Response 23 4 Disarm 22
TEMPLATE 2 Loop Function Zone Type TEMPLATE 5 Loop Function Zone Type
1 No Response 23 1 No Response 23
2 Disarm 22 2 Arm Stay 20
3 Arm Away 21 3 Arm Away 21
4 Arm Stay 20 4 Disarm 22
TEMPLATE 3 Loop Function Zone Type TEMPLATE 6 Loop Function Zone Type
(same as temp. 2) 1 No Response 23 (same as temp. 5) 1 No Response 23
2 Disarm 22 2 Arm Stay 20
3 Arm Away 21 3 Arm Away 21
4 Arm Stay 20 4 Disarm 22
NOTE: Templates 3 and 6, which are identical to templates 2 and 5 respectively, are shown for future reference.
