Adtech DJ8849V2-A01 User Manual

User Manual of TV5600-B01 Series Dispensing Control System
110
7
NC
NC
8
NC
NC
9
NC
NC
10
NC
NC

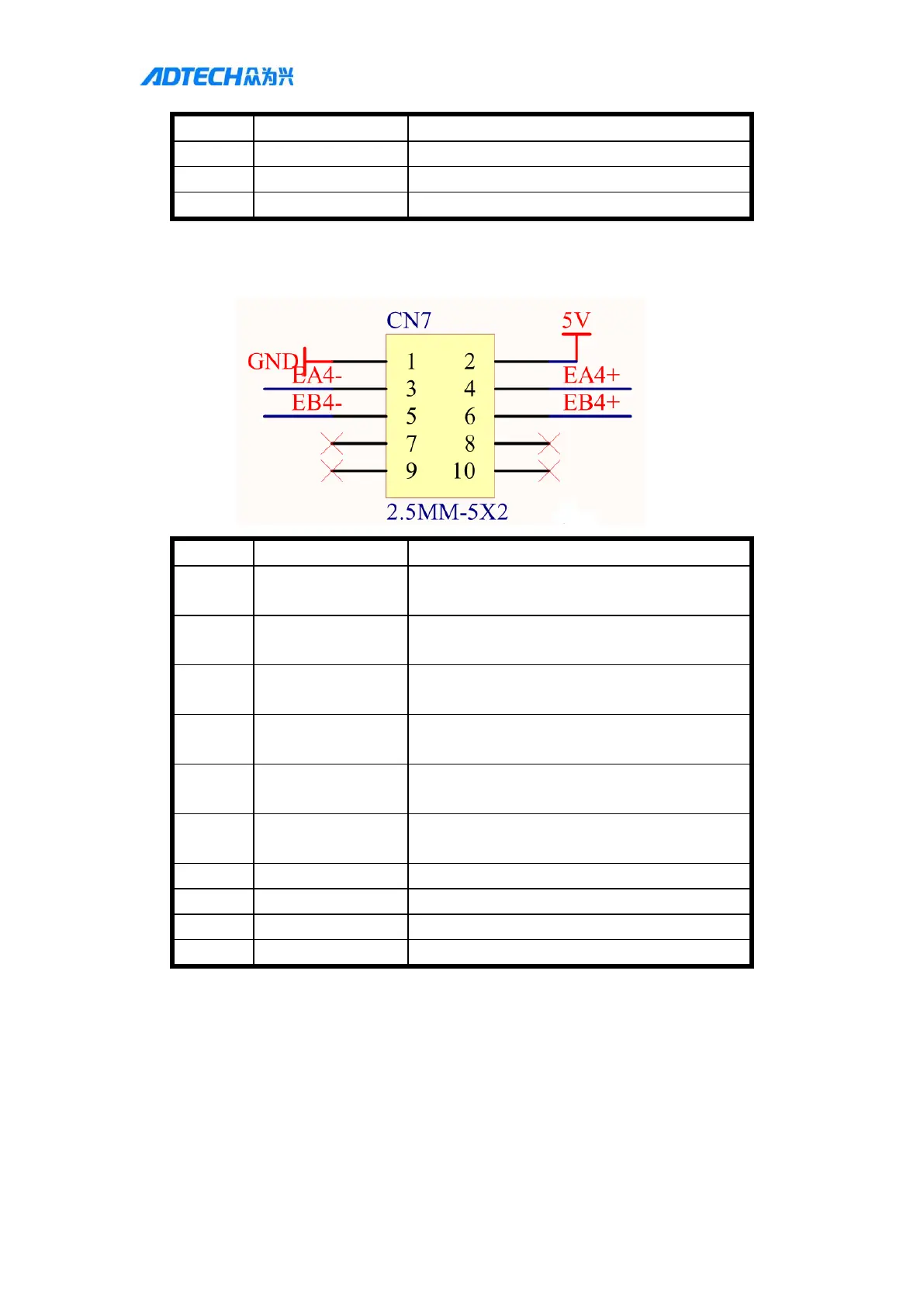

EN-1 terminal pin description:
Wire No.
Definition
Function
1
GND
Negative pole ofclosed loop feedback power
supply
2
5V
Positive pole ofclosed loop feedback power
supply
3
EA4-
A-phase negative pole ofR-axis closed loop
feedback signal
4
EA4+
A-phase positive pole ofR-axis closed loop
feedback signal
5
EB4-
B-phase negative pole ofR-axis closed loop
feedback signal
6
EB4+
B-phase positive pole ofR-axis closed loop
feedback signal
7
NC
NC
8
NC
NC
9
NC
NC
10
NC
NC
EN-2 terminal pin description:

Adtech DJ8849V2-A01 Specifications

General

Brand	Adtech
Model	DJ8849V2-A01
Category	Control Systems
Language	English
