User Manual of TV5600-B01 Series Dispensing Control System
111

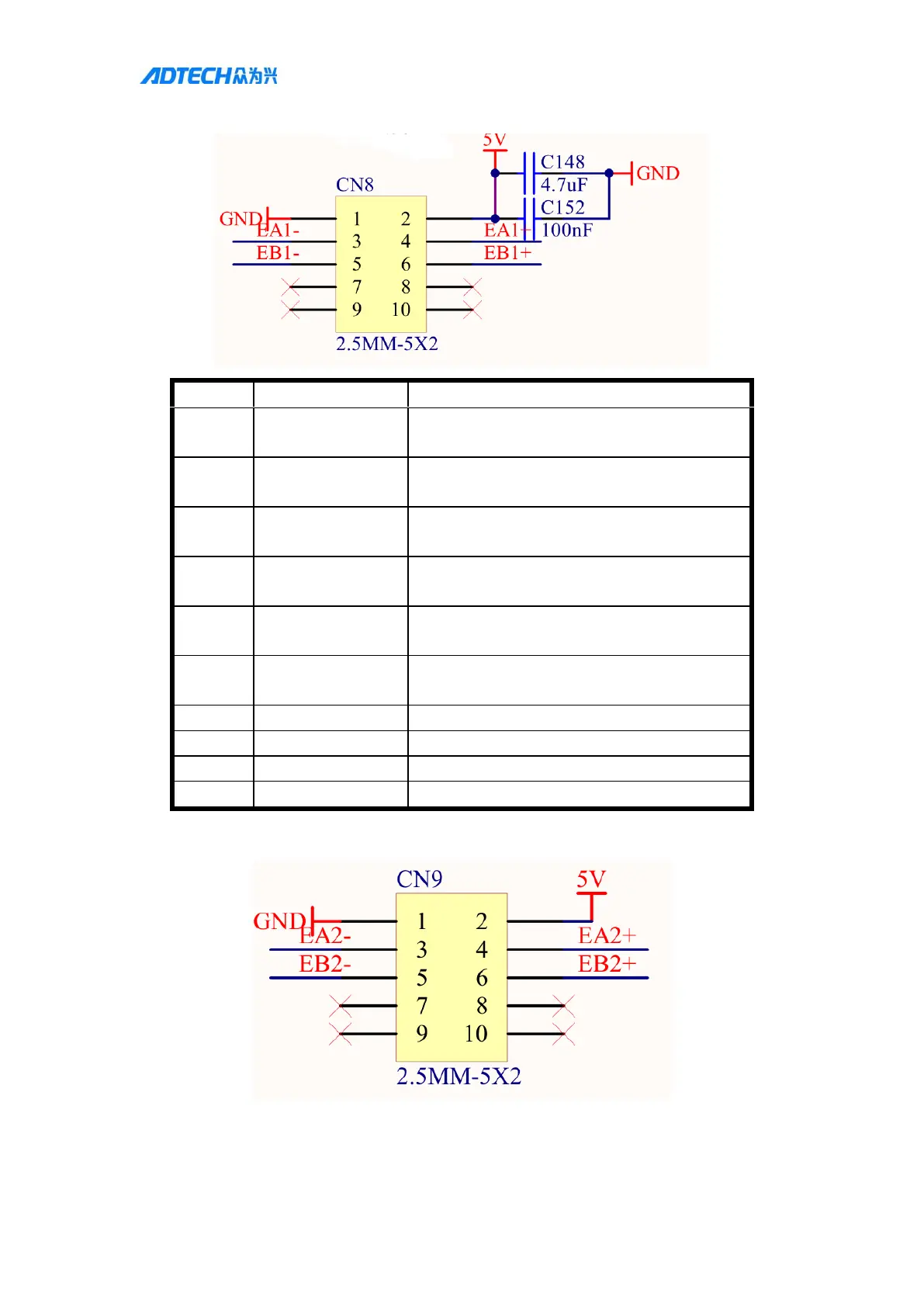

Wire No.
Definition
Function
1
GND
Negative pole ofclosed loop feedback power
supply
2
5V
Positive pole ofclosed loop feedback power
supply
3
EA1-
A-phase negative pole ofX-axis closed loop
feedback signal
4
EA1+
A-phase positive pole ofX-axis closed loop
feedback signal
5
EB1-
B-phase negative pole ofX-axis closed loop
feedback signal
6
EB1+
B-phase positive pole ofX-axis closed loop
feedback signal
7
NC
NC
8
NC
NC
9
NC
NC
10
NC
NC
EN-3 terminal pin description:
