OVERVIEW NetVanta 3000 Series Hardware Installation Guide
32 Copyright © 2006 ADTRAN, Inc. 61200860L1-34L
NetVanta 3305 Shipping Contents
Each NetVanta 3305 unit is shipped in its own cardboard shipping carton. Open each carton carefully, and
avoid deep penetration into the carton with sharp objects.
After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in
transit, immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to Repair
and Return on page 9).
Shipments of the NetVanta 3305 include the following items:
• NetVanta 3305 base unit with attached mounting ears/screws
• ADTRAN OS System Documentation CD
•Quick Start Guide
• Warranty card
• Detachable AC power cord

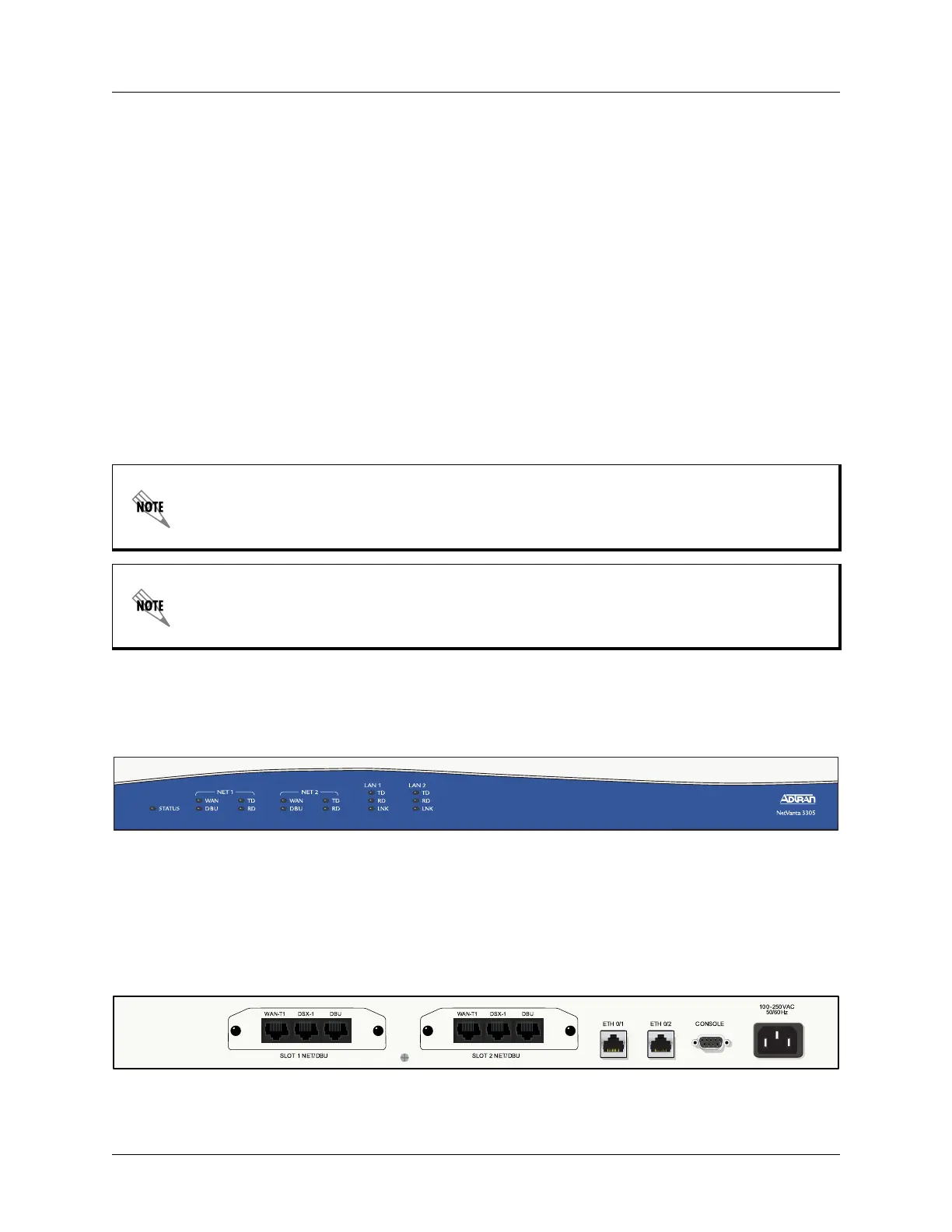

NetVanta 3305 Front Panel Design
The NetVanta 3305 front panel is shown below. Front panel LED descriptions are given in Table 1 on page
42.
Figure 10. NetVanta 3305 Front Panel Layout
NetVanta 3305 Rear Panel Design
The NetVanta 3305 rear panel is shown below with modules installed. Appendix A, on page 75, provides
pinouts.
Figure 11. NetVanta 3305 Rear Panel Layout
System bundles are shipped with a base unit, a network interface module, and other appro-
priate contents based on the system-level solution ordered.
Option module shipping contents are given in Option Module Shipping Contents on
page 44.
SLOT 2 NET/DBU
CONSOLE
WAN-T1 DSX-1 DBU
SLOT 1 NET/DBU
WAN-T1 DSX-1 DBU
ETH 0/2ETH 0/1
100-250VAC
50/60Hz
