NetVanta 3000 Series Hardware Installation Guide Option Modules
61200860L1-34L Copyright © 2006 ADTRAN, Inc. 57
NetVanta ADSL NIM, Annex B (P/N 1200889E1/L1)
The NetVanta ADSL NIM, Annex B, (see Figure 25) adds ADSL capability to the NetVanta 3000 Series.
See Table A-12 on page 79 for the pinouts. The ADSL NIM supports an optional DIM for dial backup
applications. See Table A-14 on page 80 for the DBU connector pinouts.

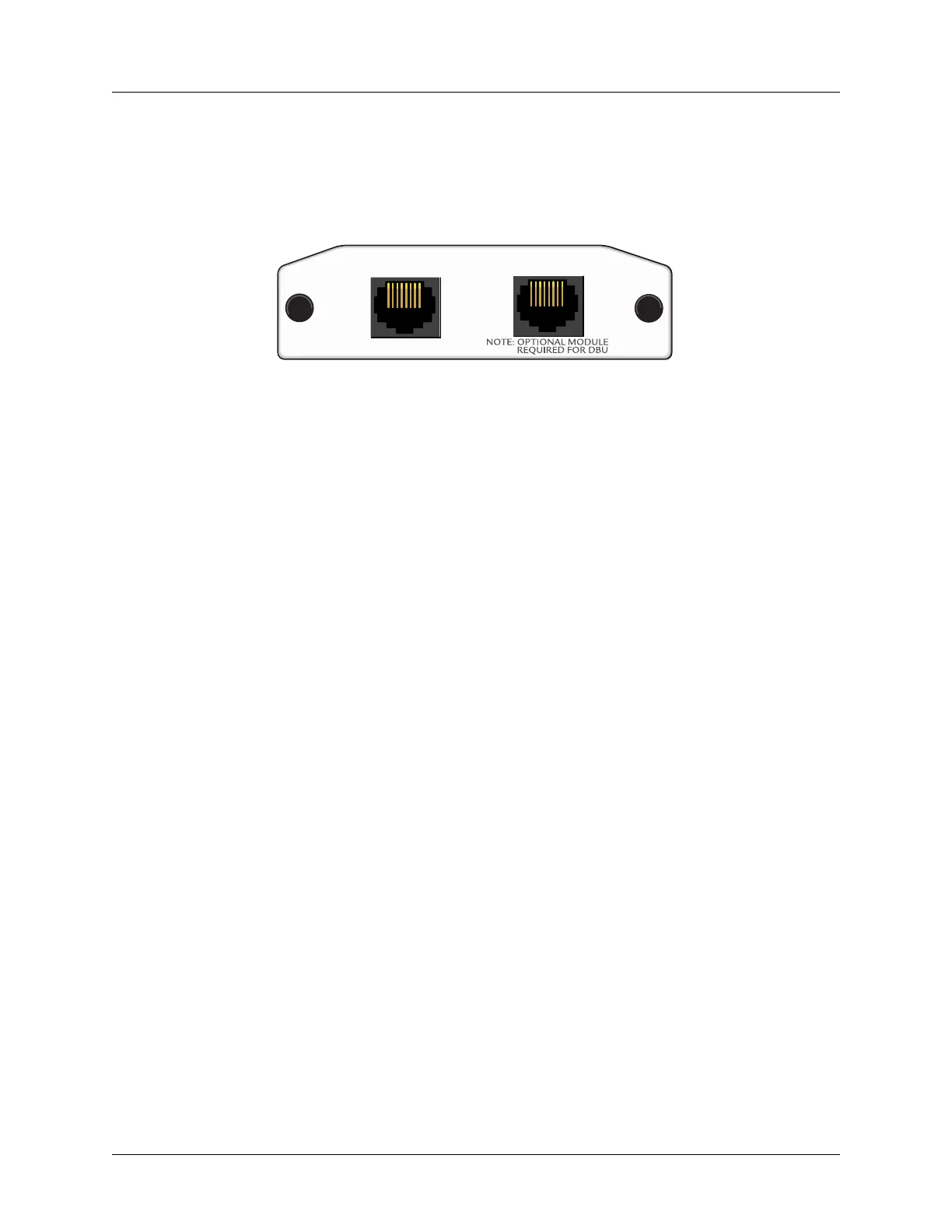

Figure 26. NetVanta ADSL NIM, Annex B
WAN-ADSL
DBU
Features and Specifications
ADSL Interface
• ADSL over ISDN, Annex B
• Supported Standards: ITU G.992.1
(G.dmt)
• Connector: RJ-11C (6-pin jack,
inner pair)
ATM
• Multiple Protocol over AAL5 (RFC2684)
• PPP over ATM (RFC2364)
• PPP over Ethernet (RFC2516)
• ATM Forum UNI 3.1/4.0 PVC
• ATM Class of Service (UBR)
• ATM F5 OAM
• Up to 16 virtual circuits
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 7
•AS/ACIF S043
• EN 60950
• IEC 60950
• AS/NZS 60950
• RoHS compliant (1200889E1 only)
(Telecommunications exemption)
Environmental
• Operating temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
