Option Modules NetVanta 3000 Series Hardware Installation Guide
48 Copyright © 2006 ADTRAN, Inc. 61200860L1-34L
NetVanta T1/FT1 NIM (P/N 1202862L1)
The T1/FT1 NIM (shown in Figure 17) provides a T1 (full or fractional) WAN interface for the
NetVanta 3000 Series. See Table A-7 on page 77 for the WAN-T1 connector pinouts, and Table A-14 on
page 80 for the DBU connector pinouts. An optional DIM is required for dial backup applications.

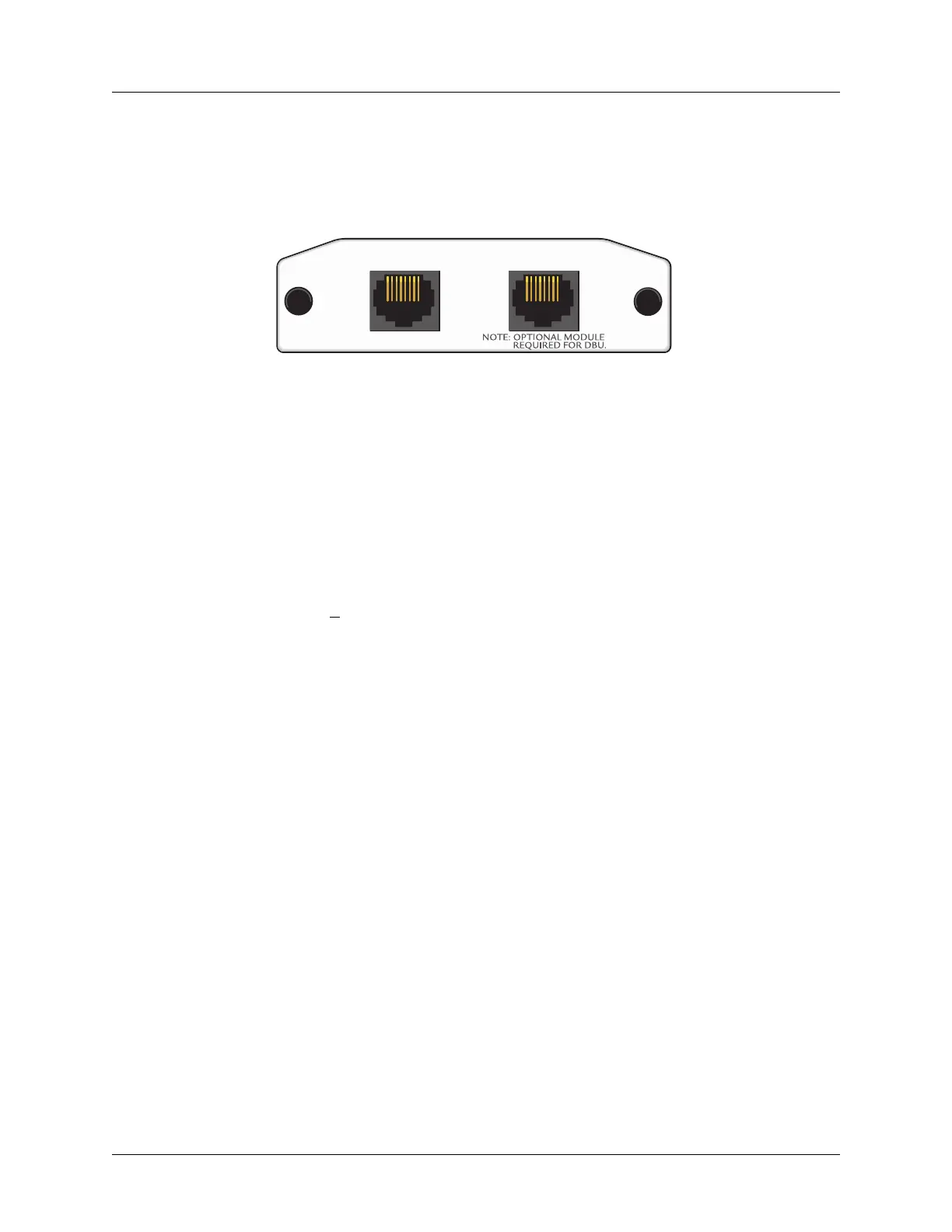

Figure 17. NetVanta T1/FT1 NIM
WAN-T1 DBU
Features and Specifications
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
T1/FT1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403,
Bellcore TR 194
• Line Rate: 1.544 Mbps +
75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized (multiples
of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
•Network
•Internal
Diagnostics
• Test Pattern Generation and Detection:
511, QRSS, all ones, all zeros
• Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
• Alarm generation and detection
• Network and user sets of performance data
(15 minutes and 24 hours)
Compliance
• EMC - see Electromagnetic Compatibility
(EMC) Table on page 7.
• ACTA/FCC Part 68
• IC CS-03
• UL/CUL 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
