OVERVIEW NetVanta 3000 Series Hardware Installation Guide
40 Copyright © 2006 ADTRAN, Inc. 61200860L1-34L
International Shipping Contents
Shipments of the NetVanta 3448 international units include the following items:
• NetVanta 3448 base unit
• ADTRAN OS System Documentation CD
• Quick Start Guide
• Warranty card
• 4 rubber mounting feet
• All necessary power cords
NetVanta 3448 Front Panel Design
The NetVanta 3448 front panel is shown below. Front panel LED descriptions are given in Table 1 on page
42. In addition to the LEDs, this front panel contains a
Compact Flash slot for non-volatile configuration
storage and compressed code storage. ADTRAN supports only ADTRAN-provided compact flash (16 MB to
1 GB) (see list of part numbers on front cover). See Installing a CompactFlash Card on page 73.

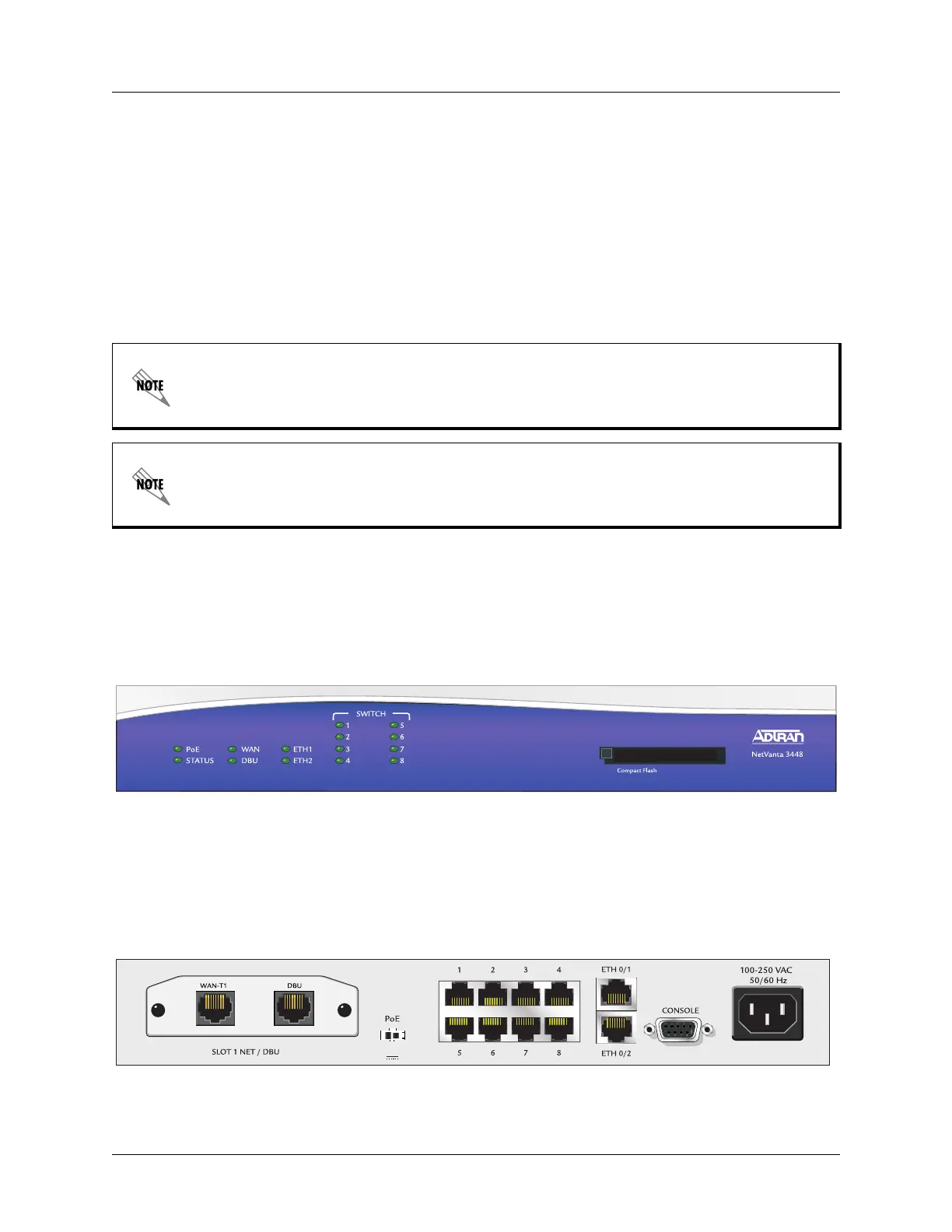

Figure 14. NetVanta 3448 Front Panel Layout
NetVanta 3448 Rear Panel Design
The NetVanta 3448 rear panel is shown below with a module installed. Appendix A, on page 75, provides
pinouts.
Figure 15. NetVanta 3448 Rear Panel Layout
Option module shipping contents are given in Option Module Shipping Contents on
page 44.
A SODIMM can be ordered (P/N 1200813E1, 1200814E1, or 1200815E1 for 256, 512, or
1024 MB of memory, respectively), if desired.
48 V

ADTRAN 1202880E1 Specifications

General

Brand	ADTRAN
Model	1202880E1
Category	Network Router
Language	English
