Option Modules NetVanta 3000 Series Hardware Installation Guide
54 Copyright © 2006 ADTRAN, Inc. 61200860L1-34L
NetVanta Serial NIM (P/N 1200866E1/L1)
The NetVanta Serial NIM (shown in Figure 23) can be configured by the user as a V.35, X.21 (V.11), or
EIA 530 interface. This module supports rates up to a maximum of 10 Mbps. An additional V.35
(ADTRAN P/N 1200873L1), X.21 (ADTRAN P/N 1200874L1), or EIA 530 (ADTRAN P/N 1200883L1)
cable is required (see Caution, below). See Table A-13 on page 79 for the
SERIAL connector pinouts, and
Table A-14 on page 80 for the DBU connector pinouts. An optional DIM is required for dial backup
applications.

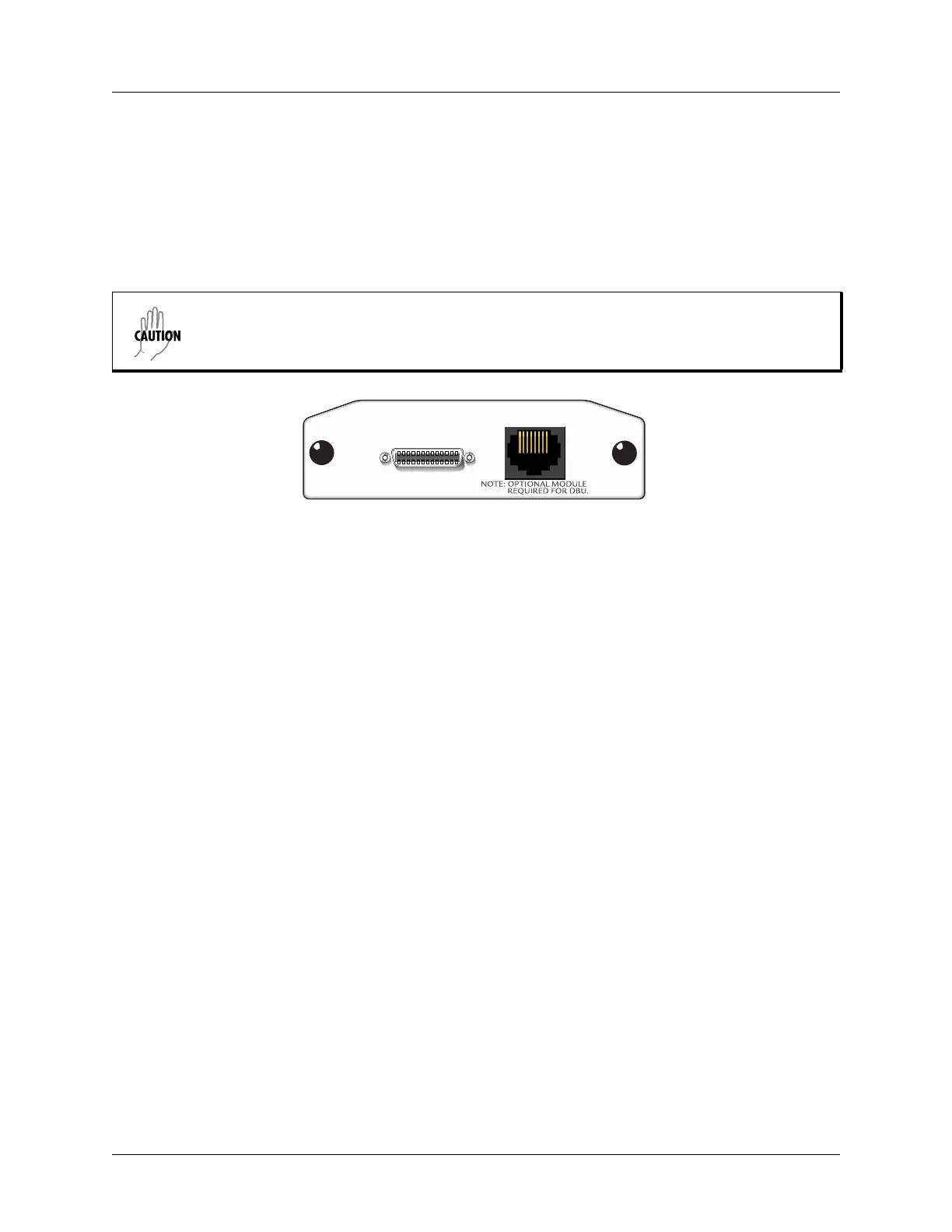

Figure 23. NetVanta Serial NIM
Cable length for the Serial NIM should not exceed 25 feet.
SERIAL DBU
Features and Specifications
Operating Mode
• DTE only
Serial Interface
• Supported Standards: ISO 4903 (X.21),
CCITT V.35 Synchronous (V.35),
EIA 530 Synchronous
• Provides V.35, X.21 (V.11), or EIA 530
electrical interface
• Connector: 26-pin smart serial (DTE)
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 7.
• ETSI TBR1
• ETSI TBR2
• EN 60950
• IEC 60950
• UL/CUL 60950
• AS/NZS 60950
• RoHS compliant (1200866E1 only)
(Telecommunications exemption)
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
