NetVanta 3000 Series Hardware Installation Guide Unit Installation
61200860L1-34L Copyright © 2006 ADTRAN, Inc. 69

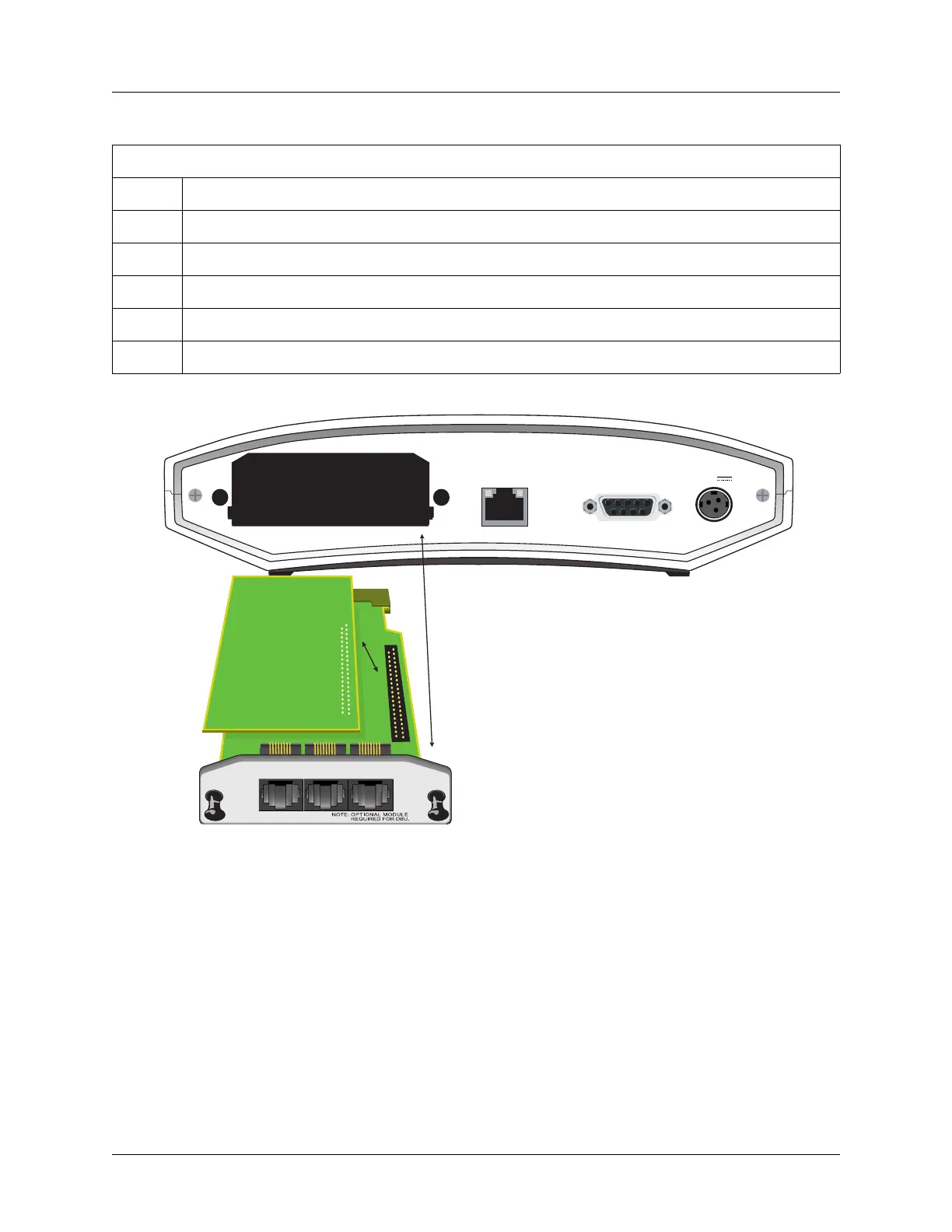

Figure 30. NIM and DIM Installation
Instructions for Installing the NIMs
Step Action
1 Remove power from the unit.
2 Slide the option module into the option slot until the module is firmly seated against the chassis.
3 Secure the pins at both edges of the module.
4 Connect the cables to the associated device(s).
5 Restore power to the unit.
POWER
12V
ETH 0/1
CONSOLE
SLOT 1 NET/DBU
WAN-DDS DBU
WAN-T1 DSX-1 DBU
