13
Osmo1 Single-Sample Micro-Osmometer Service Guide
Chapter 1
Osmo1 overview
This chapter provides a general description of the Osmo1
components and its mechanical and electrical operation.
1.1 Front view

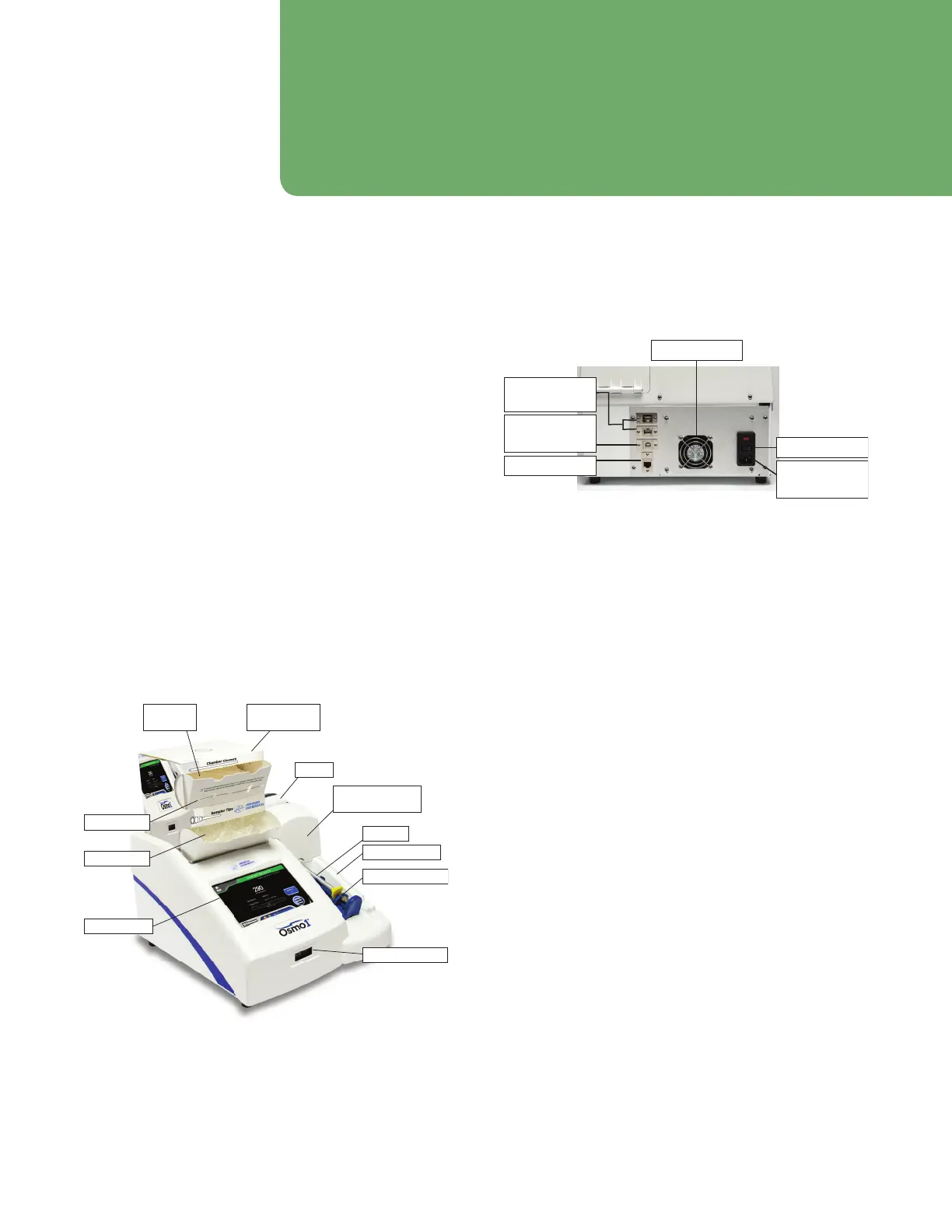

Figure 1 shows a front view of the Osmo1 and identifi es
its major components:
Sampler
Sampler holder (a convenient resting place for the
sampler when it is not in use)
Operating cradle
Cooling chamber (inside)
Touchscreen
Barcode scanner
Printer
Micro-Sample Test Kit (contains 500 chamber
cleaners, 500 sampler tips, and one plunger wire)
Printer
Cooling chamber
(inside)
Sampler
Chamber
cleaners
Operating cradle
Barcode scanner
Micro-Sample
Test Kit
Plunger wire
Sampler tips
Touchscreen
Sampler holder
Figure 1: Osmo1 front view
1.2 Rear view
Figure 2 shows a rear view of the Osmo1.
Power switch
USB 2.0
Type B port
Ethernet port
Plug for
power cord
USB 2.0
Type A port
Exhaust fan
Figure 2: Osmo1 rear view--
1.3 Mechanical description
Mechanically, the Osmo1 contains four major
components (Figure 3 on page 14):
Sample Handling Assembly: This module is the part of
the osmometer where testing is performed. The
sample probe, cooling assembly, and actuator switch
are monitored and controlled by the sample handling
assembly.
Power Supply & Control Assembly: This component
provides power to the instrument via the fused power
inlet assembly. The Control PCB contains the logic
necessary to perform osmometer tests and manage
communications with the display assembly, printer,
and barcode scanner. The physical USB and Ethernet
ports are mounted to the power supply & controls
assembly and connected to the display assembly with
cables.
Display Assembly: This assembly consists of the
display PCB and the touchscreen display. It provides
the graphical user interface (GUI) used to show and
retrieve information about tests and the instrument’s
set-up. The USB and Ethernet port interfaces and
cables are part of the display assembly.
Printer: The printer generates copies of test results,
test statistics, and basic information about the
instrument, such as the serial number, date and time,
and software and fi rmware versions.
