Osmo1™ Single-Sample Micro-Osmometer Service Guide
Appendix G
System schematic
This design, drawing, and prints are the property of Advanced Instruments.
Reproduction of any kind is prohibited except with the specific permission of Advanced Instruments.
112093
CABLE, POWER SUPPLY
112089
CABLE, POWER ENTRY
MODULE GROUND
112088
CABLE, POWER ENTRY
MODULE AC LINE
112114
CABLE, PRINTER
133035
CABLE, DISPLAY POWER/COM - OSMO1
112111
CABLE, DISPLAY LVDS
133305
SAMPLE WELL ASSEMBLY - OSMO1
133022 - LCD SCREEN MOUNTING ASSEMBLY
133028 - POWER SUPPLY AND CONTROL ASSEMBLY
112124
CABLE, RJ50 BARCODE READER
133023
CABLE, CRADLE SWITCH - OSMO1
332341
CABLE, BLOCK PROBE
METAL TAB REAR
2
2
20
4
26
10
240725
CABLE, SAMPLE PROBE
6
112110
CABLE, DISPLAY LED
2 + COAX SHIELD
112090
CABLE, POWER
SUPPLY GROUND
CHASSIS GND
26
10
FLEX CABLE
(ATTACHED TO
LCD MODULE)
A1 A1
A3 A3
A4 A4
2
SOLENOID
3M2322 TEC
C5
C6
P2
PE-L
PE-N
G1 G2
P101
P100
PE-G
2
112094
CABLE, POWER SUPPLY &
COOLING BLOCK FAN
ASSEMBLY
A1
A1
GNDPWR
P1 P1
C3 C1 C2
C12
PR1
BS1
D10
USB1
USB3
USB2
ETH1
D1
D3
D5
D8 D7
D6
LCD_CN1LCD_CN2
2 + COAX SHIELD
SERIALUSB
CHASSIS GND
CHASSIS GND
2 x 70011 FUSE
C3G
D10G
701376
CABLE, USB A MALE to B MALE
701375
CABLE, RJ45
701377
CABLE, USB A MALE to A MALE
P300
GRN/YEL GRN/YEL
BLU
BRN
330330
FAN ASSEMBLY, COOLING
701377
CABLE, USB A MALE to A MALE
701375
CABLE, RJ45
701376
CABLE, USB A MALE
to B MALE
701377
CABLE, USB A MALE to B MALE
701377
CABLE, USB A MALE to A MALE
C15
701381
CABLE, RFID POWER/COM – 25” LG
RFID
SW1
133024
HARNESS, COOLING SYSTEM ASSEMBLY - OSMO1
701138 SWITCH
SEE NOTE# 1
8
3M2353
CABLE, SOLENOID
IMPACT - MODIFIED - OSMO1
2
5
H1
D2
(1A)
LINE WT
6
2
SAFETY GROUND STUD# 6
RELEASED
SS 09/13/2017
06206
NOTES:
1)USB JACK# 4 NOT USED
REV DESCRIPTION APPROVED ISSUEDECO
0
ECO
REV DESCRIPTION APPROVED ISSUEDECO
0
ECO
REV DESCRIPTION APPROVED ISSUEDECO
0
ECO
DFT
CHKD
APPD
SCHEMATIC
NEXT ASSY.
SHEET
SCALE
DWG. NO.
SIZE
REV.
OF
GROUND SYMBOL LEGEND
SIGNAL RETURN
A CURRENT CARRYING SIGNAL OR
POWER RETURN CONNECTION
SAFETY GROUND
A CONNECTION TO AN ELECTRICAL
GROUND STRUCTURE
SHIELD GROUND
A CONNECTION TO A NON-CURRENT
CARRYING CHASSIS OR SHIELD
A = ANALOG / D = DIGITAL / P = POWER
THIS DESIGN, DRAWING, AND PRINTS
ARE THE PROPERTY OF ADVANCED
INSTRUMENTS. REPRODUCTION
OF ANY KIND IS PROHIBITED EXCEPT
WITH SPECIFIC PERMISSION OF
ADVANCED INSTRUMENTS.
ADVANCED INSTRUMENTS
Two Technology Way
Norwood, MA 02062
TELEPHONE: (781) 320-9000
FAX: (781) 320-8181
SCHEMATIC, SYSTEM INTERCONNECT - OSMO1
D
0
N/AN/A
S.SELVAMANI
- - -
- - -
06/19/2017
- - -
- - -
THIS DOCUMENT CREATED USING OrCAD CAPTURE V17.2
REFERENCE PROJECT FILE AN3000SC.OPJ AND ASSOCIATED FILES.
1 1
133000SC
DFT
CHKD
APPD
SCHEMATIC
NEXT ASSY.
SHEET
SCALE
DWG. NO.
SIZE
REV.
OF
GROUND SYMBOL LEGEND
SIGNAL RETURN
A CURRENT CARRYING SIGNAL OR
POWER RETURN CONNECTION
SAFETY GROUND
A CONNECTION TO AN ELECTRICAL
GROUND STRUCTURE
SHIELD GROUND
A CONNECTION TO A NON-CURRENT
CARRYING CHASSIS OR SHIELD
A = ANALOG / D = DIGITAL / P = POWER
THIS DESIGN, DRAWING, AND PRINTS
ARE THE PROPERTY OF ADVANCED
INSTRUMENTS. REPRODUCTION
OF ANY KIND IS PROHIBITED EXCEPT
WITH SPECIFIC PERMISSION OF
ADVANCED INSTRUMENTS.
ADVANCED INSTRUMENTS
Two Technology Way
Norwood, MA 02062
TELEPHONE: (781) 320-9000
FAX: (781) 320-8181
SCHEMATIC, SYSTEM INTERCONNECT - OSMO1
D
0
N/AN/A
S.SELVAMANI
- - -
- - -
06/19/2017
- - -
- - -
THIS DOCUMENT CREATED USING OrCAD CAPTURE V17.2
REFERENCE PROJECT FILE AN3000SC.OPJ AND ASSOCIATED FILES.
1 1
133000SC
DFT
CHKD
APPD
SCHEMATIC
NEXT ASSY.
SHEET
SCALE
DWG. NO.
SIZE
REV.
OF
GROUND SYMBOL LEGEND
SIGNAL RETURN
A CURRENT CARRYING SIGNAL OR
POWER RETURN CONNECTION
SAFETY GROUND
A CONNECTION TO AN ELECTRICAL
GROUND STRUCTURE
SHIELD GROUND
A CONNECTION TO A NON-CURRENT
CARRYING CHASSIS OR SHIELD
A = ANALOG / D = DIGITAL / P = POWER
THIS DESIGN, DRAWING, AND PRINTS
ARE THE PROPERTY OF ADVANCED
INSTRUMENTS. REPRODUCTION
OF ANY KIND IS PROHIBITED EXCEPT
WITH SPECIFIC PERMISSION OF
ADVANCED INSTRUMENTS.
ADVANCED INSTRUMENTS
Two Technology Way
Norwood, MA 02062
TELEPHONE: (781) 320-9000
FAX: (781) 320-8181
SCHEMATIC, SYSTEM INTERCONNECT - OSMO1
D
0
N/AN/A
S.SELVAMANI
- - -
- - -
06/19/2017
- - -
- - -
THIS DOCUMENT CREATED USING OrCAD CAPTURE V17.2
REFERENCE PROJECT FILE AN3000SC.OPJ AND ASSOCIATED FILES.
1 1
133000SC
133020 BARCODE READER
USBA
701211 USB A-A
USB SERIAL
708029 PRINTER
USBB
701212 USB B-A
J100
POWER OUT
6
AC INEGND
1-AC LINE
2-NC
3-AC NEUTRAL
1
J101
J300
1-3: GND
4-6: 12VDC
707011 POWER SUPPLY, 12 VDC 200W
RT
RT6
332340 BLOCK PROBE ASSEMBLY
708026 FAN
SW1
1 2
+
_
700034 TEC
FAN
RFID
705006 RFID READER
DISPLAY
J10
J7
LCD-LVDS
USB B
J2
J8
LCD-LED
J6
LCD-TOUCH
J3
USB A
J1
ETHERNET
J5
USB A
J4
USB A
SPEAKER
J9
112021PC DISPLAY PCB
LCD
LVDS
CN1
TOUCH
FPC1
LED
BACK
LIGHT
CN2
700035 DISPLAY, LCD - TOUCHSCREEN - COLOR - 7"
USBA
701211 USB A-A
3M2355 SOLENOID
CAT 5e
701213 RJ45
RT
330700A SAMPLE PROBE ASSEMBLY
COOLING
BLOCK
DISPLAY
POWER
FAN
J12
J2
J5
J3
PRINTERREADER
J1
J10
SAMPLE
J11
BLOCK
J4
EXPANSION PORT
ICSP
J7
J8 J9
J6
SLIDE SWITCH
J15
RFID
133037PC CONTROL PCB
PEM
0 1
F F
L
N
L N
G
707013 MODULE, POWER ENTRY

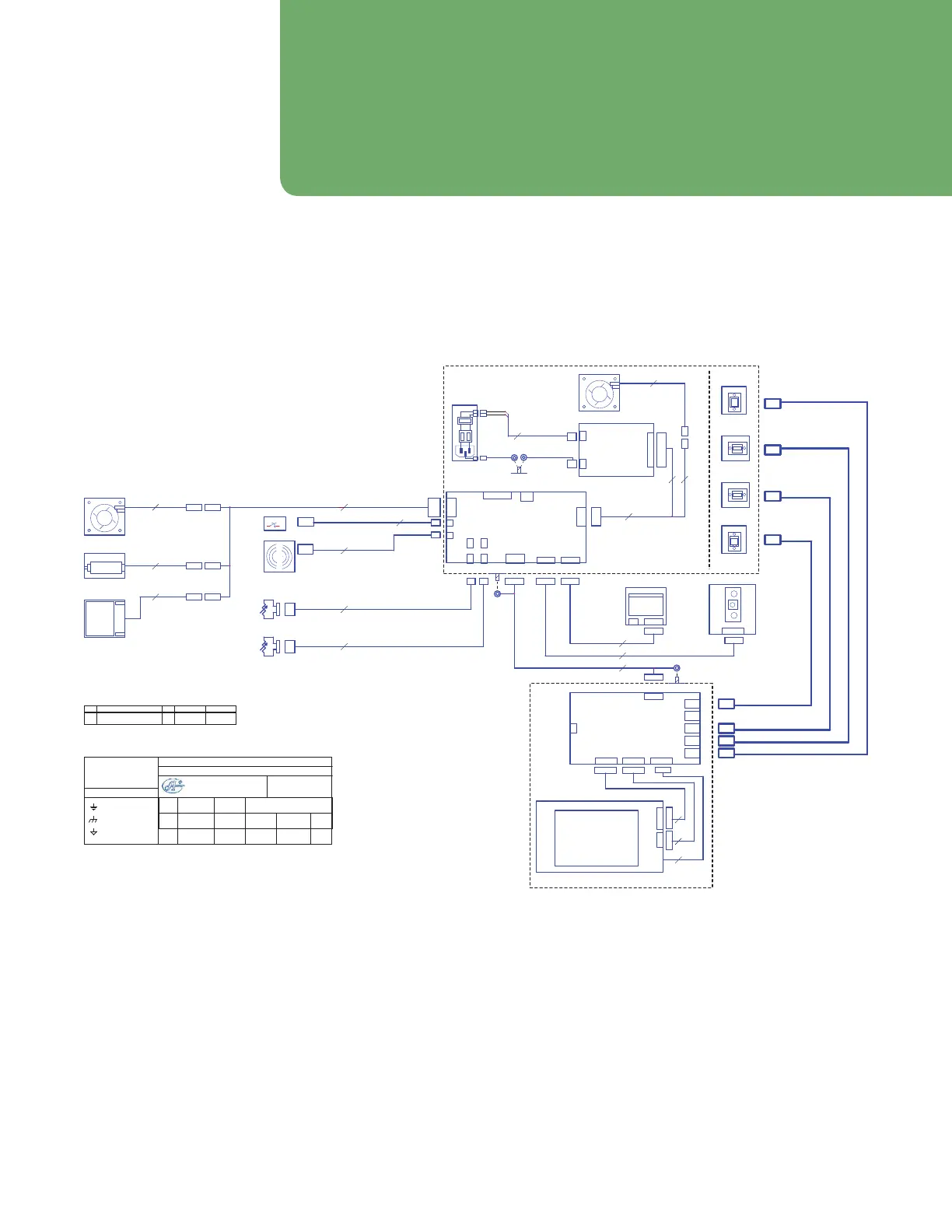

Figure 56: 133000SC Rev 0, Osmo1 System Schematic, sheet 1 of 1
