4. Gently close the printer door with the unrolled paper
end outside the printer slot (Figure 6). The door
snaps closed.
NOTE: After the paper roll is installed, always use the
paper-advance button indicated in Figure 6 to
feed the paper through the printer rollers.
Pulling on the paper can damage the printer.
The instrument must be powered on for the
paper-advance button to work. (See
“Powering up the instrument” on page18.)
Paper-advance button

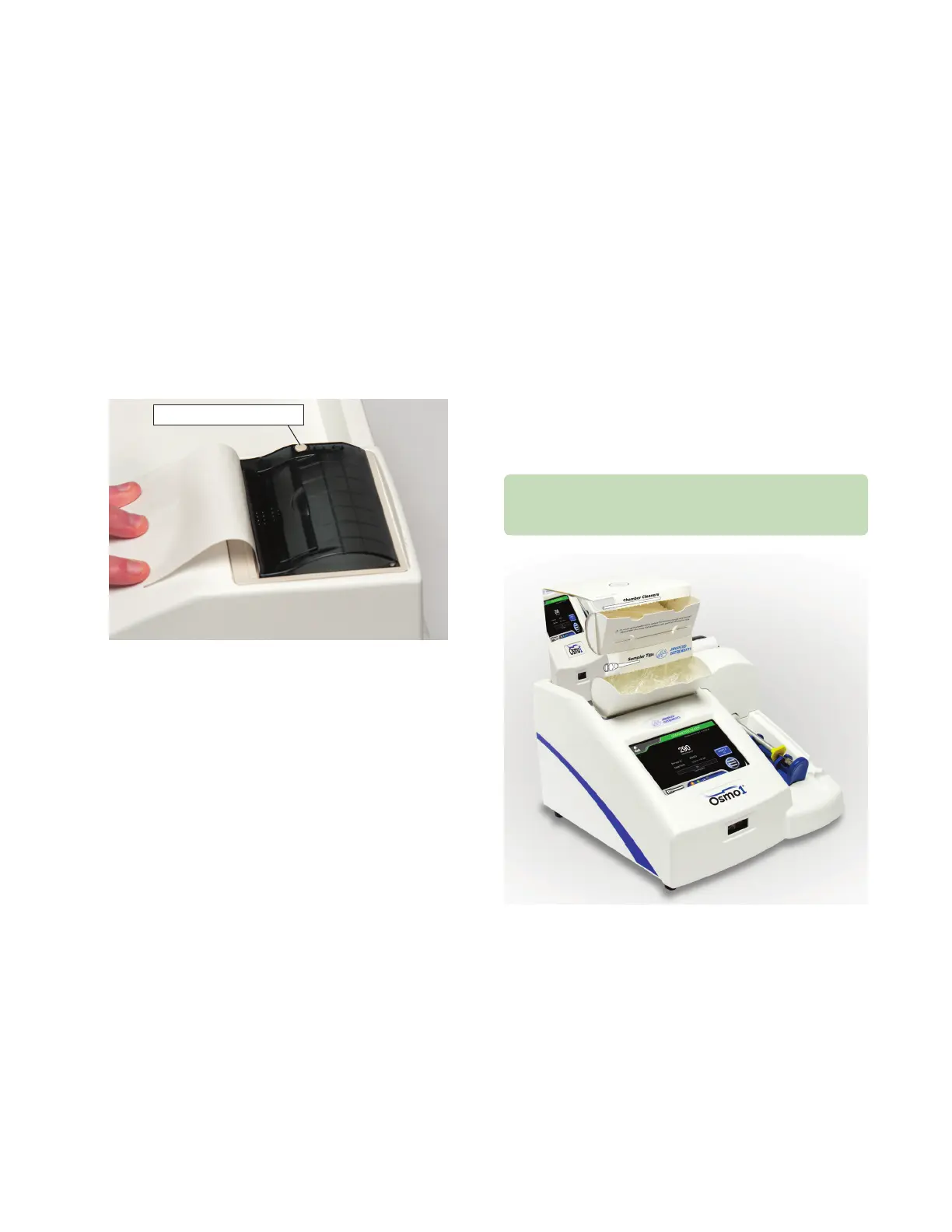

Figure 6: Printer paper loaded, door closed
2.3 Placing the Micro-Sample Test Kit on the
instrument
The Micro-Sample Test Kit contains a supply of
consumables required for testing: 500 chamber cleaners,
500 sampler tips, and one plunger wire.
A Micro-Sample Test Kit must be in place on the top left
of the instrument before testing can begin. As shown in
Figure 7, the box must be oriented so that:
• The photo of the instrument and the box label are
toward the back.
• The dispensing flaps for the chamber cleaners and
sampling tips are toward the front.
If a Micro-Sample Test Kit is not in place on the
instrument when you attempt to run a test, you will
receive the error, “AI consumable box not detected.”
Figure 7: Micro-Sample Test Kit in correct position to begin testing
