21 AIMB-252 User Manual
Chapter 1 Production Introduction
1.14 Connectors

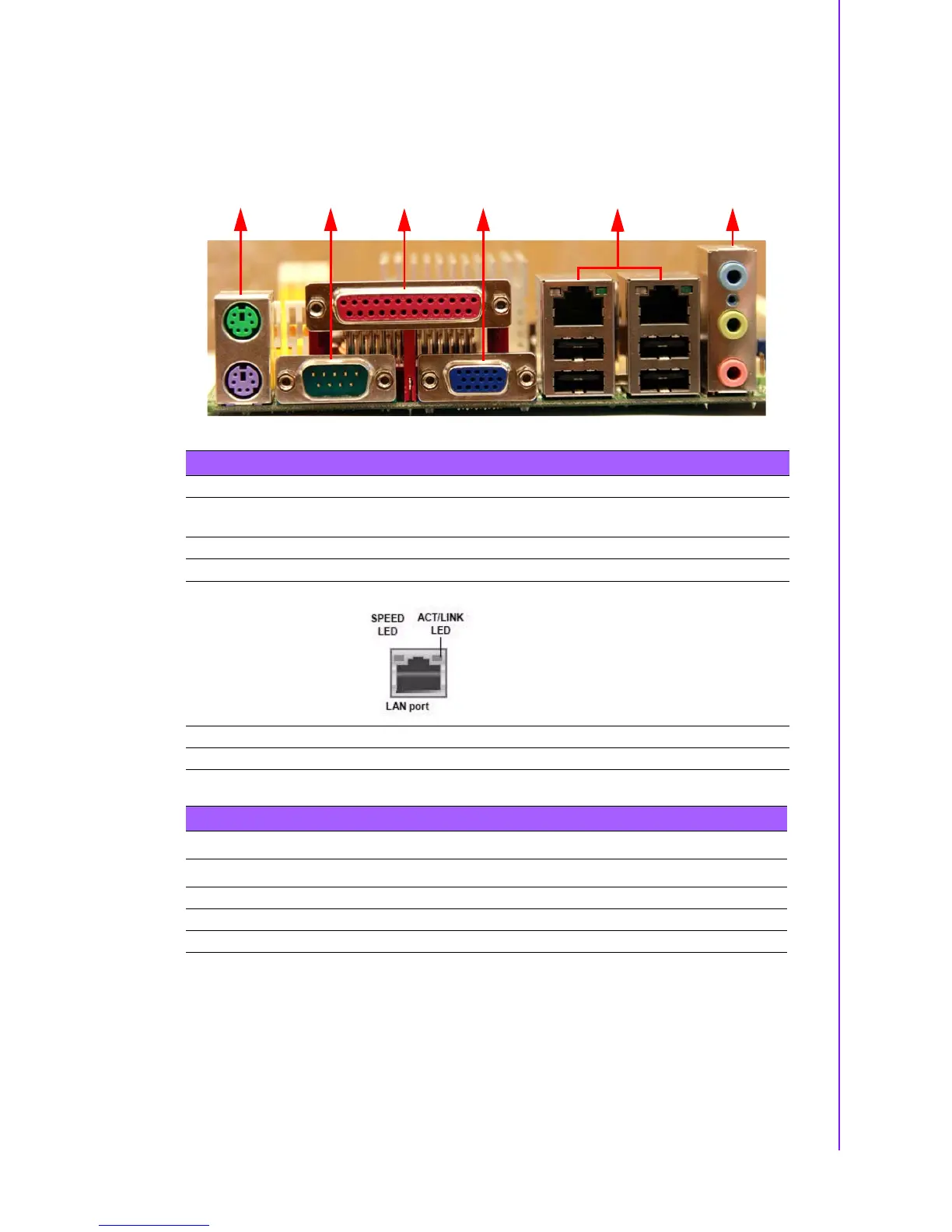

1.14.1 Rear Panel Connectors
1 2 3 7 4,5 6
Table 1.8: Rear Panel Connectors
No Label Function Description
1 KBMS1 PS/2 mouse connector The standard PS/2 mouse DIN connec-
tor is for a PS/2 mouse.
2 COM1 Serial port connector x 1 D-sub 9-pin, male
3 Parallel port Parallel port
4,5 LAN1_USB12/
LAN2_USB34
LAN (RJ-45) connector This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below
for the LAN port LED indications. The
optional 10/100 Mbps LAN controller
allows 10/100 Mbps connection to a
Local Area Network (LAN) through a
network hub.
6 Audio1 3 ports audio connector Mic-in, Line-in, Line-out
7 VGA VGA port
Table 1.9: LEDs
ACT / LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
Green Linked ORANGE 100 Mbps connection
Blinking Data activity GREEN 1 Gbps connection
