79 AIMB-252 User Manual
Appendix B Pin Assignments

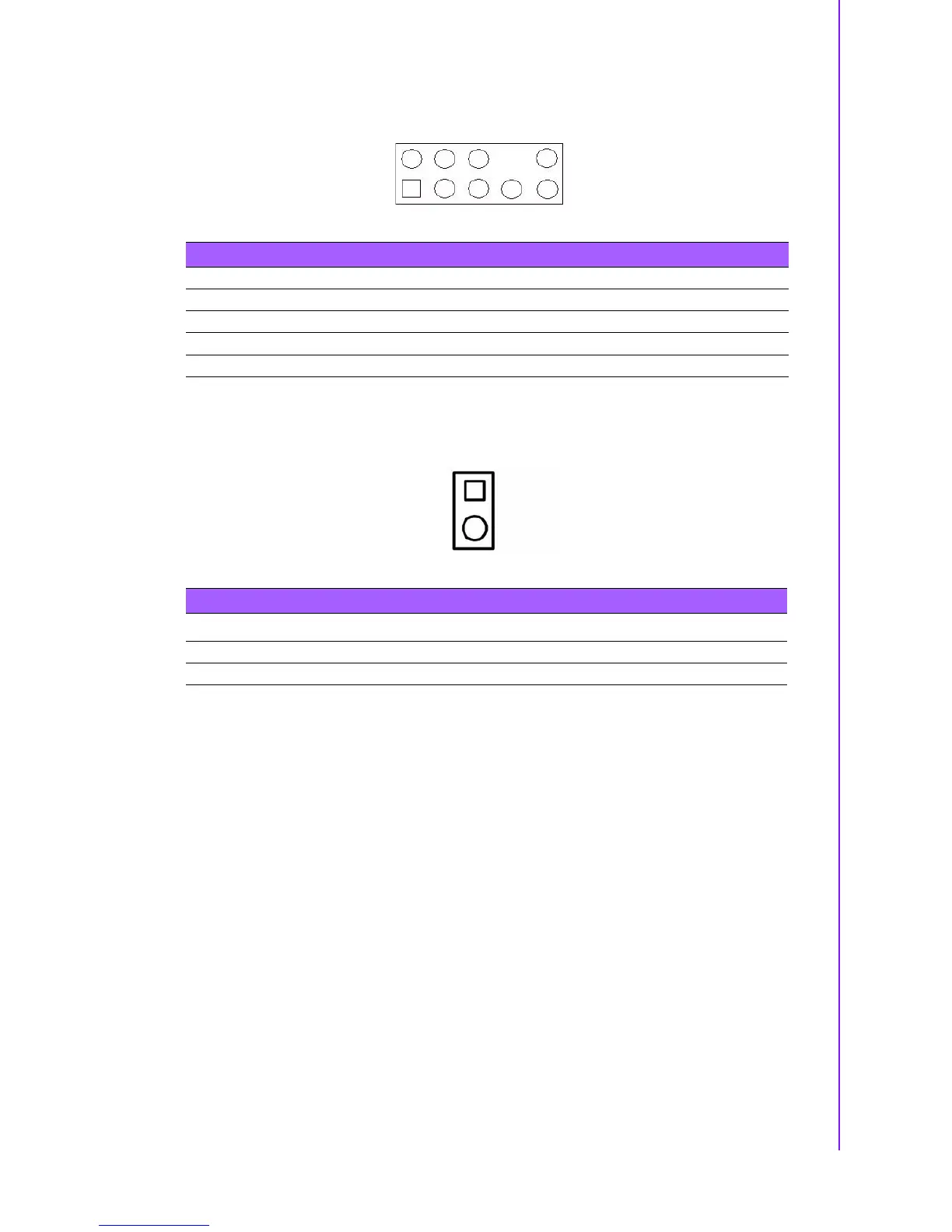

B.14 AC-97 Audio Interface (FPAUD1)
B.15 SM Bus Connector (JFP2)
Table B.15: AC-97 Audio Interface (FPAUD1)
1 MIC-IN 2 GND
3 MIC_VCC 4 VCC
5 LRR 6 LOUT_R
7 JDO 8 NC
9 LRL 10 LOUT_L
Table B.16: SM Bus Connector (JFP2)
Pin Signal
6SMB_DATA
8 SMB_CLK
6
8
1
