AIMB-252 User Manual 82

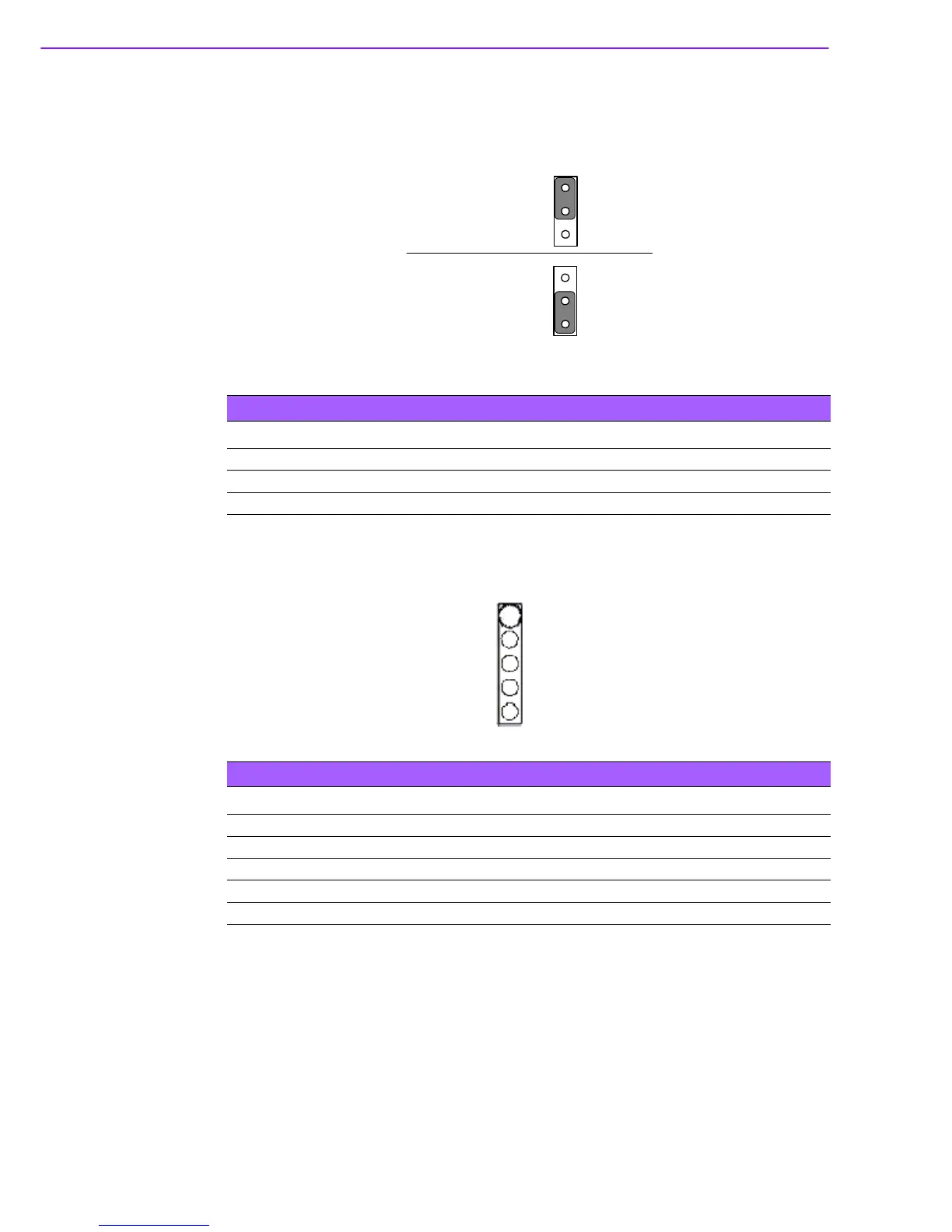

B.18 LVDS Power Jumper (JLV1, JLV2)
*default setting
B.19 LVDS Invert (INV1, INV2)
Table B.19: LVDS Power Jumper (JLV1, JLV2)
Pin Signal
1 VCC3
2 VDD_LCD
3VCC
3
1
2
3
1
2
*3.3V
5V
Voltage
Jumper Setting
Table B.20: LVDS Invert (INV1, INV2)
Pin Signal
1 VCC12
2GND
3 BKLTEN
4 VBR
5VCC
