AIMB-252 User Manual 28

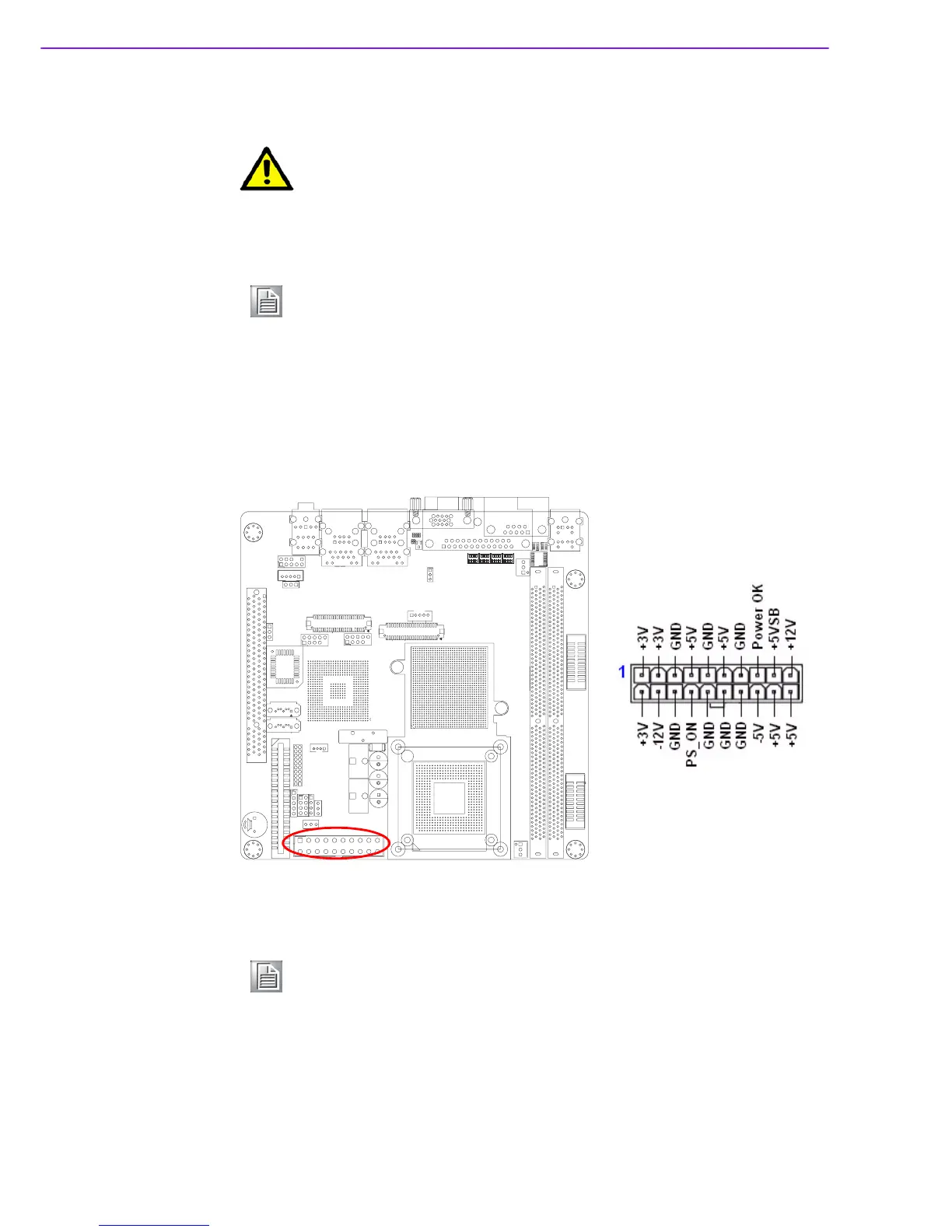

1.14.14ATX Power Connector (EATXPWR1)
This connector is for an ATX Micro-Fit power supply. The plugs from the power sup-
ply are designed to fit these connectors in only one orientation. Find the proper orien-
tation and push down firmly until the connectors completely fit.
Important notes on the Motherboard Power Requirements
Caution! Never connect a 1394 cable to the USB connectors. Doing so will dam-
age the motherboard!
Note! The USB module is purchased separately.
Note!
Make sure that your ATX 12 V power supply can provide 6 A on the
+12 V lead and at least 1A on the +5-volt standby lead (+5 VSB).
The minimum recommended wattage is 180 W for a fully config-
ured system. The system can become unstable and might experi-
ence difficulty powering up if the power supply is inadequate.
You must install a PSU with a higher power rating if you intend to
install additional devices.
