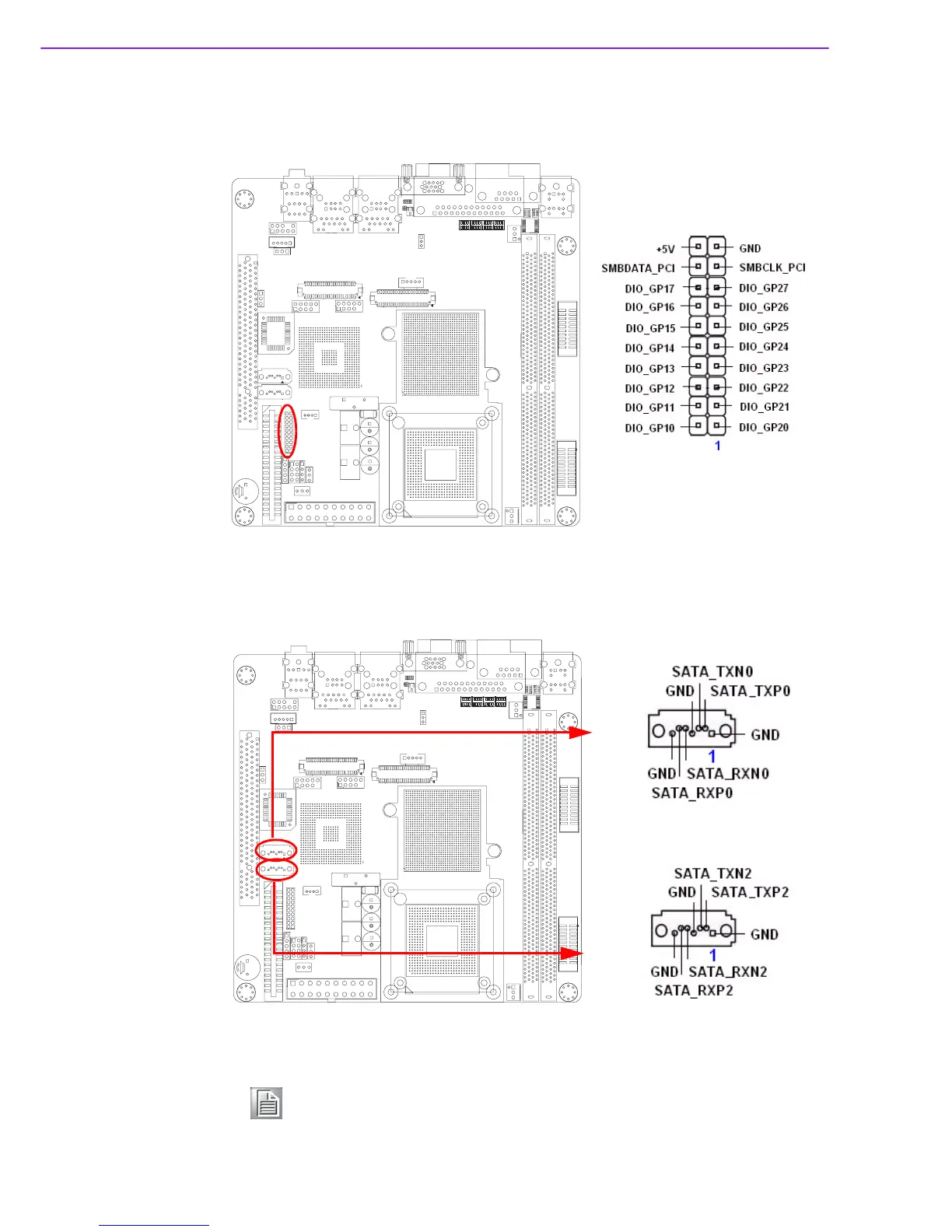

1.14.18Digital I/O Connector (GPIO1)
1.14.19Serial ATA Connector 1 & 2 (SATA1, SATA2)
SATA1
SATA2
Note!  Install the Windows® 2000 Service Pack 4 or the Windows® XP
Service Pack1 before using Serial ATA.
 When using the connectors in Standard IDE mode, connect the pri-
mary (boot) hard disk drive to the SATA1 connector.
