AIMB-252 User Manual 78

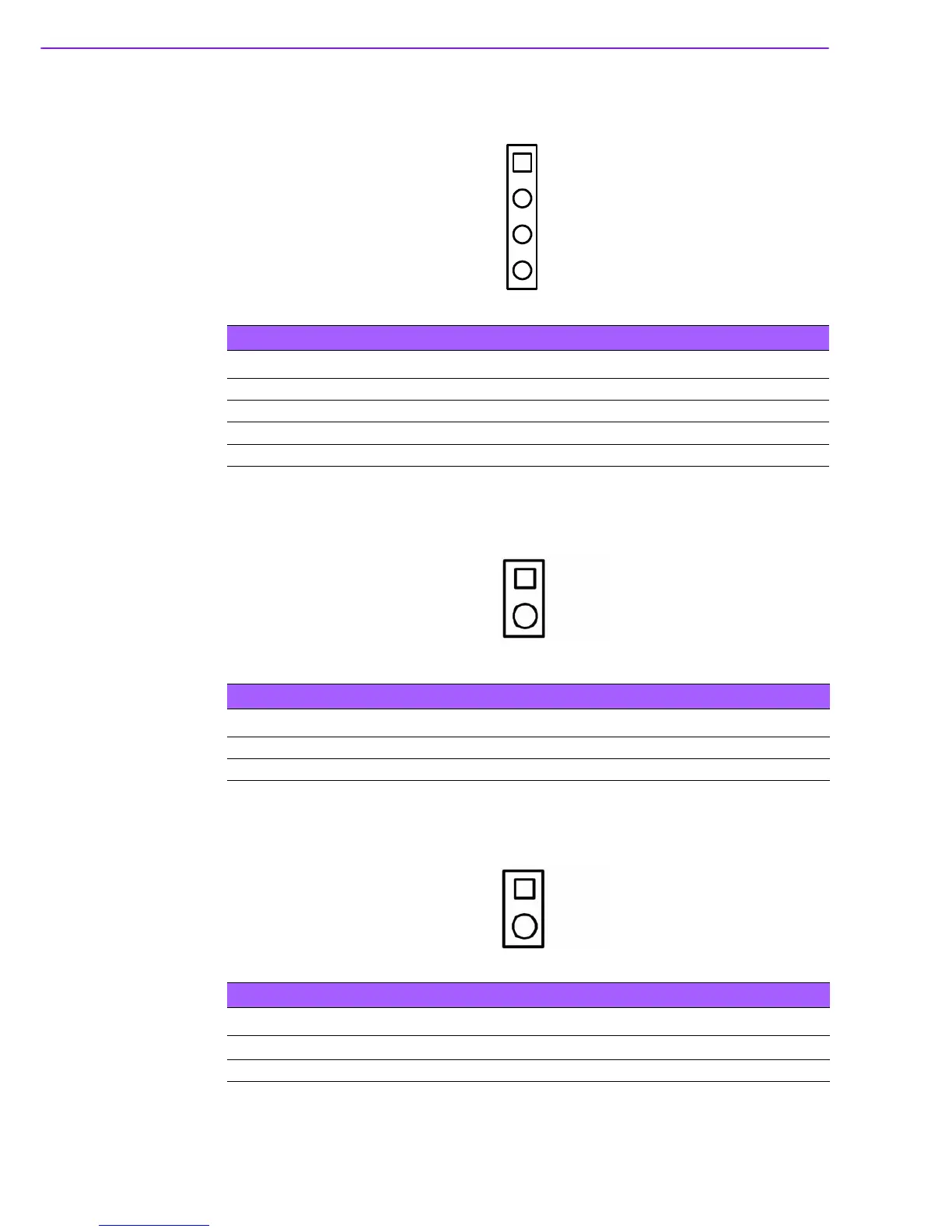

B.11 Reset Connector (JFP1/ RESET)
B.12 HDD LED Connector (JFP2/ HDDLED)
B.13 ATX Soft Power Switch (JFP1/ PWR_SW)
Table B.12: Reset Connector (JFP1/ RESET)
Pin Signal
1PWR_BTN#
2GND
3 RESET
4GND
1
2
4
3
Table B.13: HDD LED Connector (JFP2/ HDDLED)
Pin Signal
2 HDDLED+
4 HDDLED-
2
4
Table B.14: ATX Soft Power Switch (JFP1/ PWR_SW)
Pin Signal
1PWR-BTN
2GND
1
