AIMB-252 User Manual 76

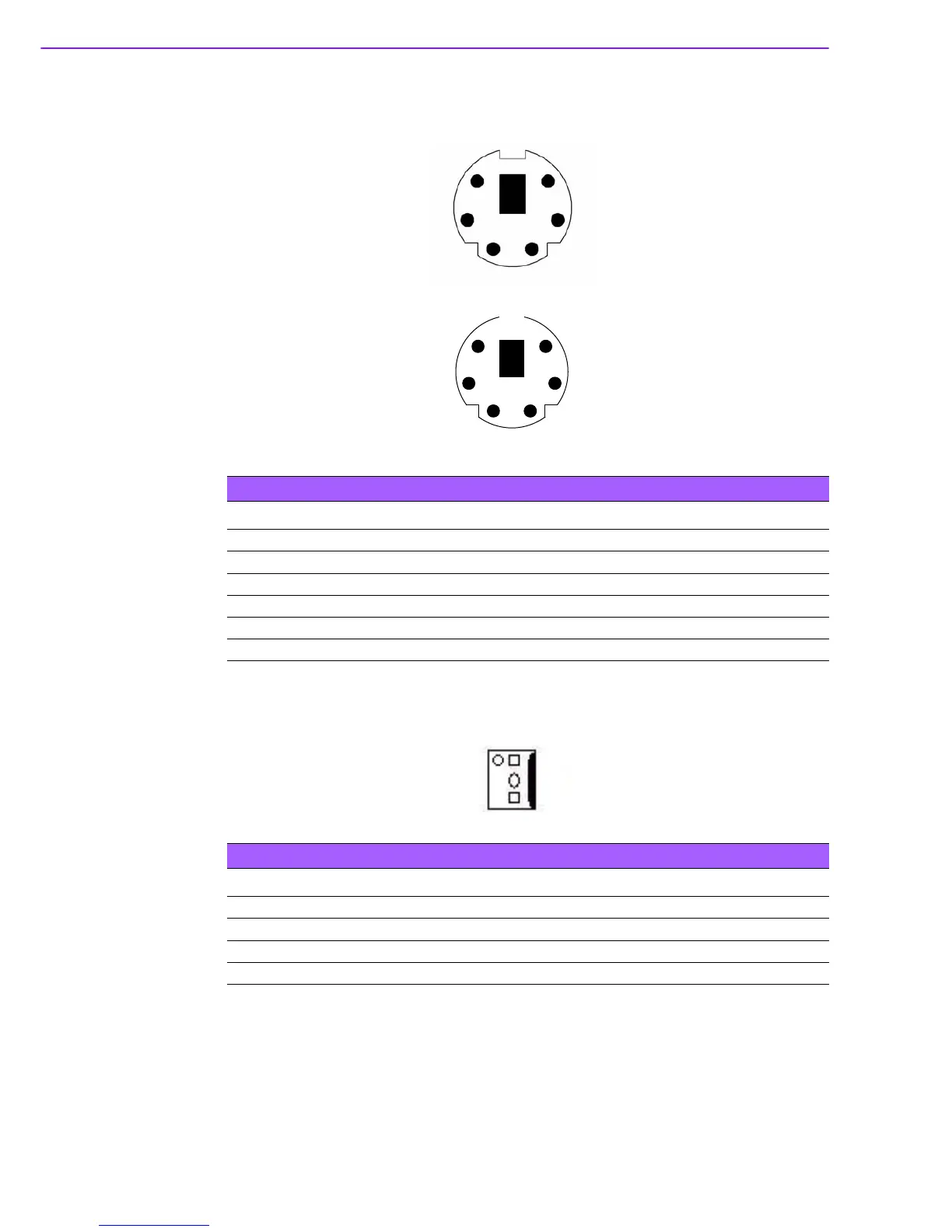

B.7 PS/2 Keyboard/ Mouse Connnector (KBMS1)
B.8 CPU Fan Power Connector (CPUFAN1)
Table B.8: PS/2 Keyboard/ Mouse Connector (KBMS1)
Pin Signal Pin Signal
1 KB DATA 2 NC
7MS DATA 6NC
3GND 8NC
4VCC 9GND
5 KB CLOCK 10 VCC
11 MS CLOCK 12 NC
12
11
10
9
87
5
3
12
4
6
Table B.9: CPU Fan Power Connector (CPUFAN1)
Pin Signal
1FAXIO
2+12 V
3GND
4 NC
1
