45 AIMB-252 User Manual
Chapter 2 BIOS Operation

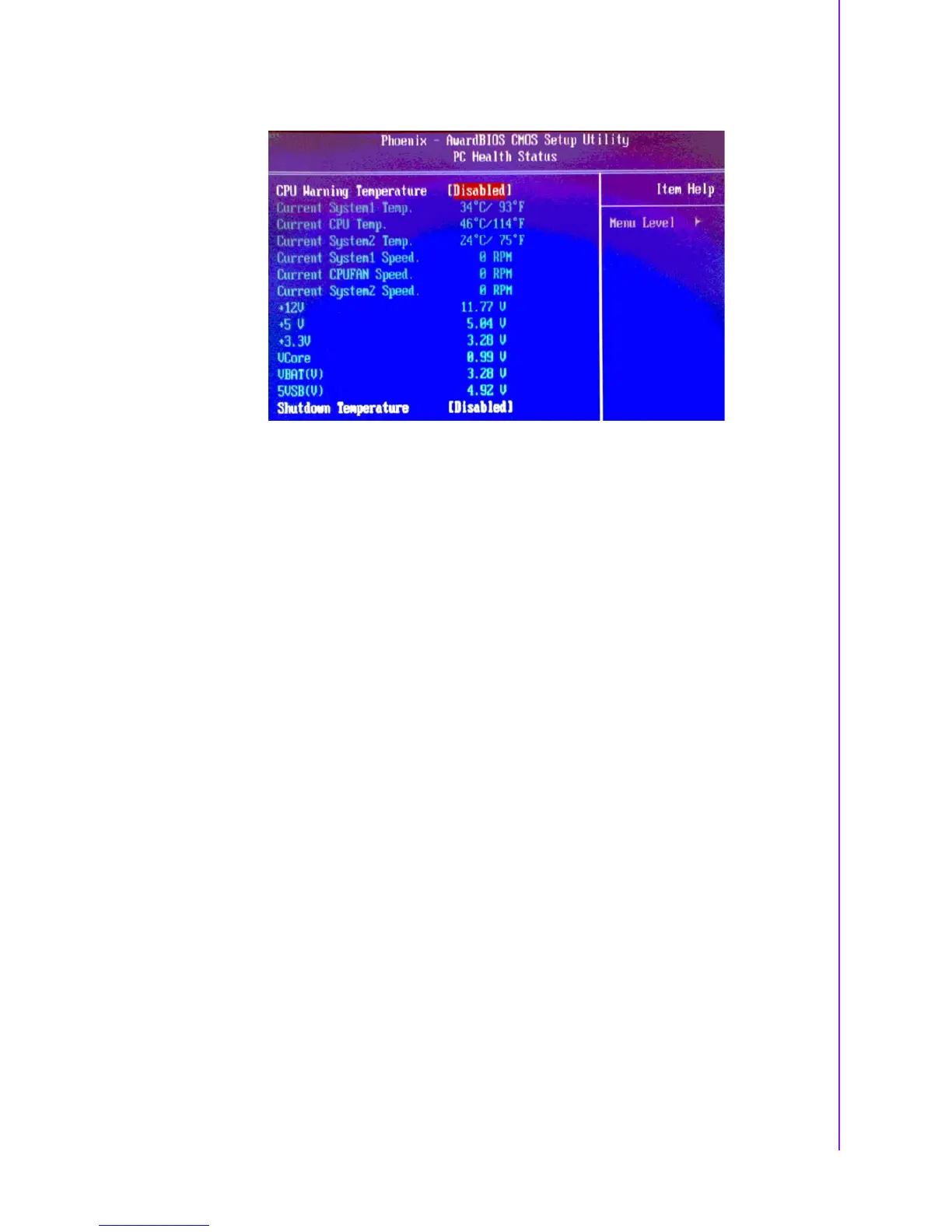

2.2.8 PC Health Status
CPU Warning Temperature
This item will prevent the CPU from overheating. The choices are “Disabled”,
“60C/140F”, “63C/145F”, “66C/151F”, “70C/158F”, “75C/167F”, “80C/176F”,
“85C/185F”, “90C/194F”, and “95C/205F”.
Current System Temperature
This shows you the current temperature of system.
Current CPU Temperature
This shows the current CPU temperature.
VCORE and Other Voltages
This shows the voltage of VCORE, +1.5 V, +3.3, +5 V, VBAT (V), and 5 VSB (V).
Shutdown Temperature
The system will shut down automatically when the CPU temperature is over the
selected setting. This function can prevent CPU damage caused by overheat-
ing.
