29 AIMB-252 User Manual
Chapter 1 Production Introduction

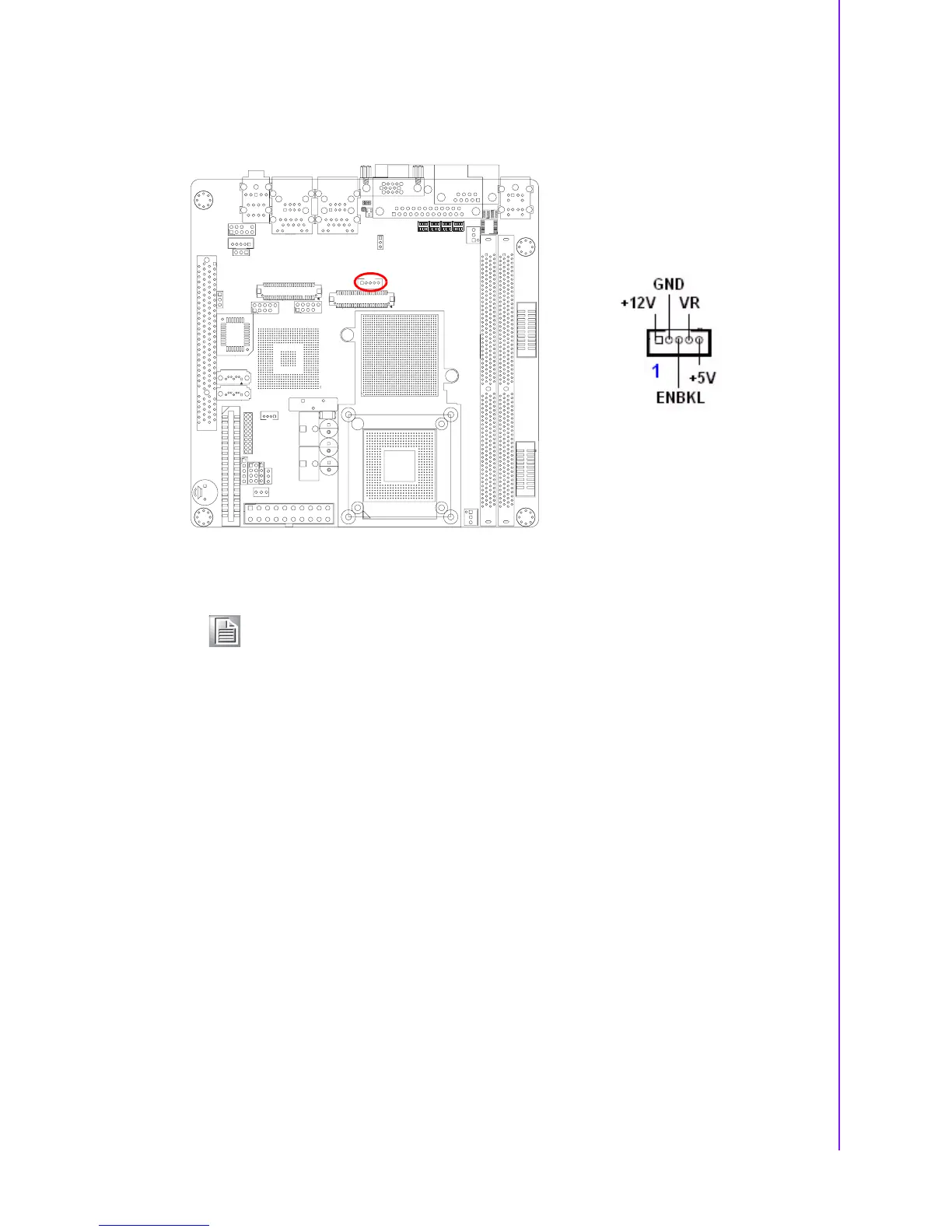

1.14.15LCD Inverter Connector (INV1) & LVDS (INV2)
Note!
Signal Description
Signal Signal Description
VR Vadj=0.75 V
(Recommended: 4.7K
Ω
, > 1/16 W)
ENBKL LCD backlight ON/OFF control signal
